Product Overview

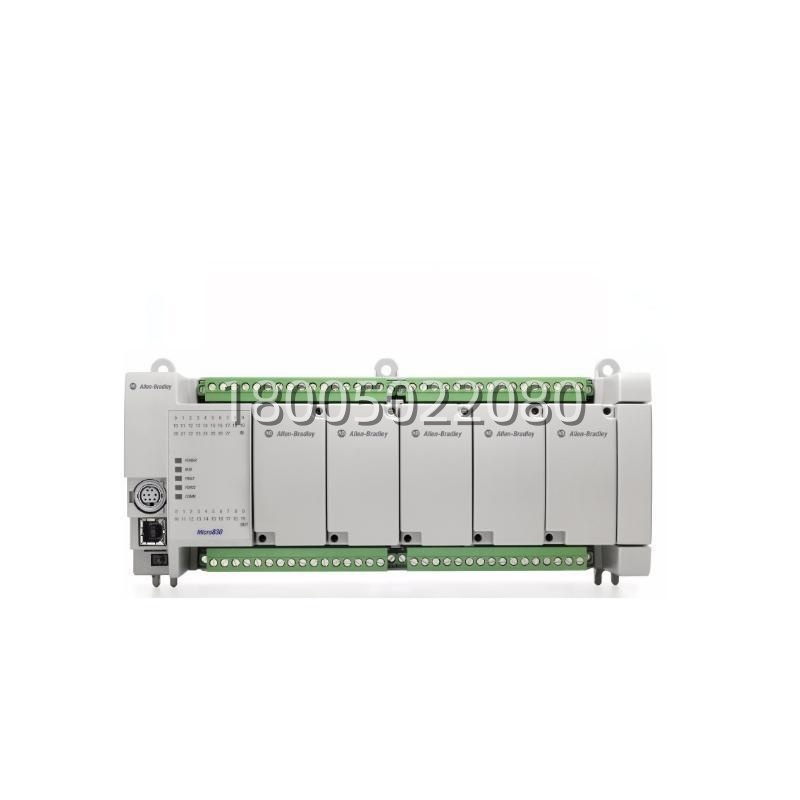

The Allen‑Bradley 2080‑LC30‑48QWB is a brick‑style programmable logic controller (PLC) from Rockwell Automation’s Micro830 family—part of the broader Micro800 series—designed for standalone, small‑ to medium‑complexity machine control applications that do not require a full rack‑based PLC system. The 2080‑LC30‑48QWB integrates 28 discrete 24 VDC inputs (configurable as sinking or sourcing) and 20 discrete 24 VDC source‑type transistor outputs (0.5 A per point, 1.0 A max surge) directly into the controller housing, eliminating the need for separate I/O modules or a chassis backplane. This all‑in‑one architecture makes the 2080‑LC30‑48QWB particularly well suited to OEM machines, packaging equipment, conveyors, and standalone process skids where panel space is at a premium and I/O requirements are well defined.Communication and programming are handled through a built‑in USB 2.0 port (for PC connection with Connected Components Workbench – CCW software) and a combined RS‑232 / RS‑485 serial port that can be configured for Modbus RTU master or slave, DF1, or ASCII free‑format messaging—enabling low‑cost connectivity to HMIs, drives, or third‑party devices. The Allen‑Bradley 2080‑LC30‑48QWB also supports up to five 2080 plug‑in modules (smart expansion cards such as additional analog I/O, Ethernet, or extra serial ports) that snap directly into the front of the controller, allowing customized capability without increasing the physical footprint. Two high‑speed counter (HSC) inputs up to 100 kHz and two pulse‑train‑output (PTO) channels for open‑loop stepper or servo positioning further extend the controller’s utility into basic motion‑control domains.Programmed in ladder logic, function block diagram (FBD), or structured text via the free CCW development environment, the 2080‑LC30‑48QWB delivers a cost‑effective, flexible, and expandable alternative to traditional MicroLogix or SLC 500 hardware for new machine designs, retrofit projects, and global OEM exports requiring CE, UL, and cULus compliance in a compact 24 VDC‑powered package.
Technical Specifications
| Product Model | 2080-LC30-48QWB |
|---|---|
| Manufacturer | Rockwell Automation / Allen‑Bradley |
| Product Type | Micro830 Standalone Programmable Logic Controller (Brick Style) |
| Series | Micro800 Family – Micro830 |
| Embedded Digital Inputs | 28 × 24 VDC (Sink/Source selectable), 4 kV ESD protected |
| Input Voltage Range (DI) | 15–30 VDC (ON threshold typ. 15 VDC), OFF leakage ≤ 1.5 mA |
| Embedded Digital Outputs | 20 × 24 VDC Source Transistor (PNP), 0.5 A continuous per point @ 25 °C (2.0 A max total), 1.0 A momentary surge |
| Output Protection | Over‑temp and short‑circuit (auto‑recover), free‑wheeling diode for inductive load protection recommended externally |
| User Program Memory | 16 KB typical / ~10,000 instructions (varies with CCW version) |
| Data / Retentive Memory | 4 KB retentive data (battery‑less, capacitor‑backed for short term; optional SD card for retention) |
| High‑Speed Functions | 2 × HSC (up to 100 kHz); 2 × PTO (Pulse Train Output) for stepper/servo open‑loop positioning |
| Communication Ports | 1 × USB 2.0 (Mini‑B, for CCW programming/download); 1 × combo RS‑232 (DB9) / RS‑485 (screw terminals), software‑configurable protocol (Modbus RTU Master/Slave, DF1, ASCII) |
| Plug‑In Module Support | Up to 5 × 2080 smart plug‑in modules (e.g., 2080‑SCANPORT, 2080‑IF2, 2080‑OF2, 2080‑ENET, 2080‑SERIO) |
| Power Supply Requirement | 24 VDC nominal (20.4–28.8 VDC), typ. 300 mA @ 24 VDC (no load), higher with plug‑ins and outputs energized |
| Operating Temperature | –20 °C to +65 °C (–4 °F to 149 °F) |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5% to 95% non‑condensing |
| Mounting | 35 mm DIN rail (EN 50022) or panel mount via screw holes |
| Dimensions (H×W×D) | Approx. 90 × 140 × 80 mm (3.54 × 5.51 × 3.15 in) |
| Certifications | UL 508, cULus, CE (EMC & LVD), KC, RoHS, C‑Tick |
| Programming Software | Rockwell Automation Connected Components Workbench (CCW) v10.0+ |
