Application Scenarios:
In a large thermal power plant’s boiler control system, multiple SPBRC410 controllers are deployed in distributed control cabinets. One SPBRC410 manages local fuel and air flow loops via Harmony I/O, while its integrated Modbus TCP port connects to a separate burner management system (BMS) from a third-party vendor. The SPBRC410 acts as a Modbus client, polling critical flame status and permissive signals from the BMS. This data is mapped directly into the DCS control logic, allowing the Symphony Plus operator stations to monitor and interlock with the BMS in real-time without requiring expensive custom communication cards, ensuring safe and coordinated boiler operation.
Parameter:
| Parameter Category | Specification Details |
|---|---|

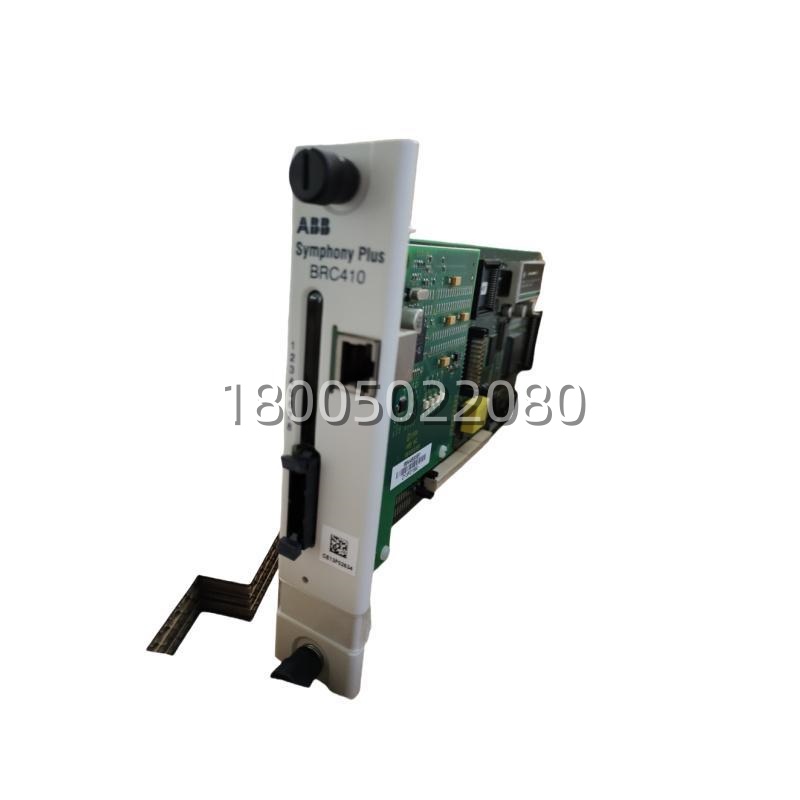

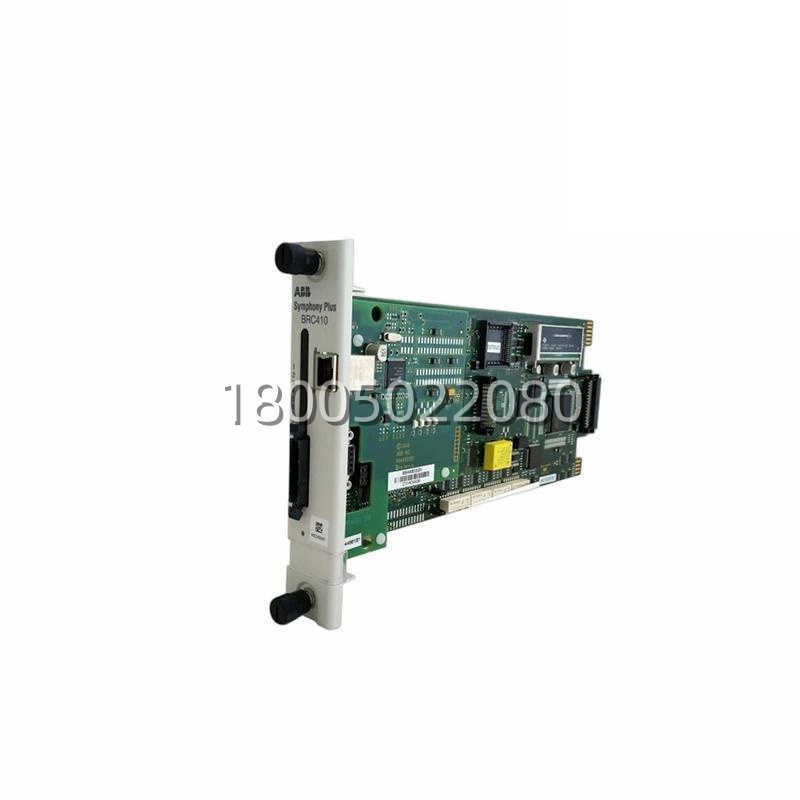

| Product Model | ABB SPBRC410 (also known as BRC410, SPBRC41000000, P-HC-BRC41000000) |
| Product Type | Bridge Rack Controller (DCS Controller + Gateway) |
| Compatible Systems | ABB Symphony Plus, INFI 90 OPEN, Harmony System |
| Processor | ColdFire® MCF5475 32-bit RISC CPU @ 256 MHz |
| Memory | 4 MB ROM, 64 MB RAM, 2 MB NVRAM (supports ~30,000 function blocks) |
| Ethernet Port | 1x 10/100 Mbps RJ45 with Modbus TCP/IP (Client/Server) |
| Additional Ports | INFI-NET/Harmony system bus, RS-232/RS-485 serial ports |
| I/O Management | Direct control of Harmony Rack I/O, S800 I/O modules |
| Power Supply | +5 VDC (typical) or 24 VDC via backplane |
| Operating Temp. | 0°C to +60°C (industrial grade) |
| Redundancy | Supports 1:1 hot-standby redundant configuration |
| Dimensions (HxWxD) | ~254 mm x 101.6 mm x 203.2 mm (standard rack module) |
Technical Principles and Innovative Values:
- Innovation Point 1: Dual-Role Architecture (Controller + Gateway): Unlike basic communication modules, the SPBRC410 integrates a full-fledged DCS controller with a native Modbus TCP stack. It runs the S+ Control application (using Function Block Diagram logic) for local process control while simultaneously bridging data between the proprietary INFI-NET bus and open Ethernet networks. This eliminates the need for a separate gateway device, reducing hardware cost, cabinet space, and communication latency.
- Innovation Point 2: High-Capacity Data Mapping with Harmony Gateway: The controller utilizes ABB’s Harmony Gateway software concept, which allows it to map up to 4,000+ Modbus points (coils, registers) directly into the DCS’s global database. This bidirectional mapping treats external Modbus devices as virtual I/O points within the Symphony Plus engineering environment (S+ Engineering), making integration transparent to the control logic programmer.
- Innovation Point 3: Legacy System Modernization Path: The SPBRC410 is a cornerstone of ABB’s “Migration Without Obsolescence” strategy. It maintains backward compatibility with legacy Network 90 and INFI 90 I/O blocks and user code, allowing plants to modernize their communication infrastructure (adding Ethernet/IP) without replacing existing field wiring or control strategies, significantly extending the lifecycle of critical assets.
