Product Overview

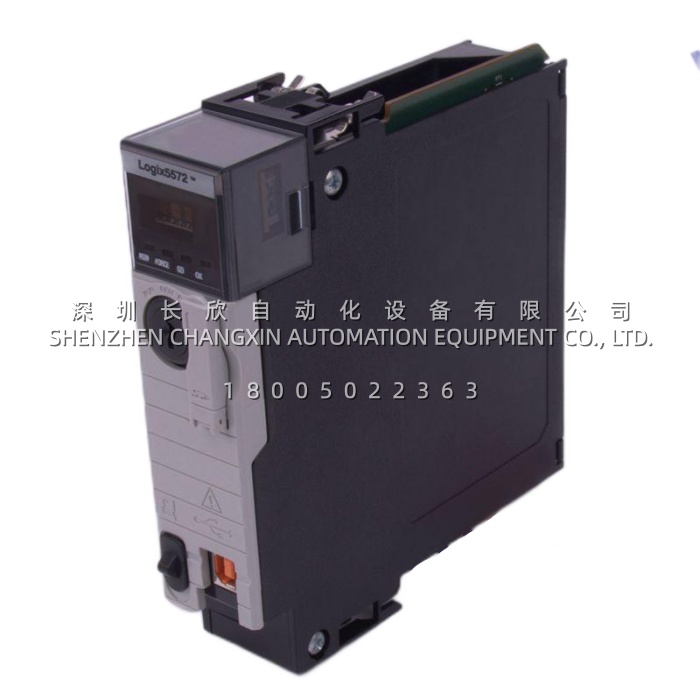

The 1756-L72 is a programmable automation controller (PAC) manufactured by Allen-Bradley, the flagship industrial automation brand of Rockwell Automation, and occupies the mid-tier position in the ControlLogix 5570 processor family. Fitted with 4 MB of user memory and 0.98 MB of dedicated I/O memory, the 1756-L72 delivers a balanced combination of program capacity, communication throughput, and motion capability that makes it the natural choice for mid-sized plants, large machine platforms, and process applications that have outgrown the entry-level 1756-L71 but do not yet justify the 8 MB or 16 MB capacity of the L73 and L74.rockwellautomation.com+1

The 1756-L72 executes up to 32 tasks — a combination of one continuous, periodic, and event tasks — each capable of hosting up to 1000 programs, running on pre-emptive priority levels that guarantee deterministic response for high-speed sequencing and motion coordination. The controller supports a maximum of 500 total connections and manages up to 128,000 discrete I/O points and 4,000 analog I/O points across the ControlLogix backplane, providing the scalability that modern distributed architectures demand.rockwellautomation.com

Communication flexibility is a defining strength: although the 1756-L72 ships with a single USB 2.0 full-speed (12 Mbps) programming port, the controller extends onto EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SERCOS, SynchLink, and third-party process and device networks through the installation of communication bridge modules in the same chassis. Integrated Motion is fully supported on both the SERCOS interface and the EtherNet/IP network, with analog motion options (encoder, LDT, and SSI inputs) for legacy feedback devices — making the 1756-L72 equally at home coordinating rotary transfer machines, multi-axis web-handling lines, and coordinated servo presses.rockwellautomation.com+1

Program retention is handled by the 1784-SD1 1 GB Secure Digital card, which ships pre-installed in every 1756-L72, while the 1756-ESMCAP capacitor energy storage module — also factory-installed — preserves the working memory and WallClockTime during brief power interruptions, eliminating the lithium battery maintenance that earlier ControlLogix generations required.rockwellautomation.com Programming is performed through RSLogix 5000 or Studio 5000 Logix Designer via the front-panel USB port, and the controller carries full redundancy support when paired with the 1756-RM2 or 1756-RM3 redundancy module, allowing high-availability architectures to be built without changing processor hardware.rockwellautomation.com

As the mid-tier workhorse of the 5570 series, the 1756-L72 remains one of the most widely deployed ControlLogix processors in active service. Maintenance teams and system integrators continue to specify genuine 1756-L72 units for both new mid-scale builds and legacy spare-part replenishment, ensuring that plants retain access to a proven, battery-free controller platform with mature firmware and an extensive Rockwell knowledgebase behind it.rockwellautomation.com
