Application Scenarios:In a steel mill’s main step-down substation, a critical 20 MVA furnace transformer experiences an incipient internal winding fault. Standard overcurrent relays see this as a simple overload and delay tripping, risking catastrophic transformer explosion and a 48-hour production outage. The ABB SPCD 3D53-AB differential unit, however, instantly calculates the vector difference between the HV and LV currents. Detecting a significant differential current exceeding its preset threshold, it executes a trip command in under 40 ms. This ultra-fast isolation limits damage to a minor rewind repair, saving millions in equipment replacement and lost production, showcasing its role as the ultimate “last line of defense” for high-value assets.
Parameter:

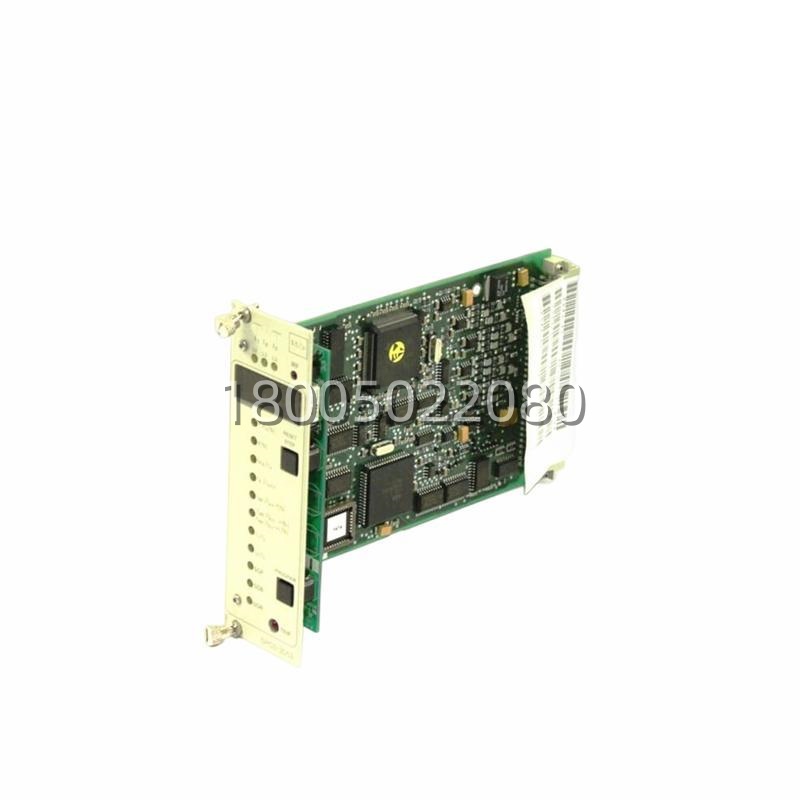

| Main Parameters | Value/Description |
|---|---|
| Product Model | ABB SPCD 3D53-AB |
| Manufacturer | ABB |
| Product Category | Microprocessor-Based Differential Protection Relay |
| Protection Type | Percentage/Ratio Differential with Harmonic Restraint |
| Rated Current Input | 1 A or 5 A (from CTs) |
| Frequency | 50 Hz / 60 Hz |
| Trip Contact Rating | 5 A @ 250 V AC/DC (Typically 4-6 CO contacts) |
| Operation Time | ≤ 40 ms (High-set), ≤ 100 ms (Low-set) |
| Harmonic Restraint | 2nd & 5th Harmonic Blocking |
| Operating Temperature | -25 °C to +70 °C |
| Mounting | Panel Mount (19-inch rack or flush) |
| Communication (Optional) | SPA Bus, IEC 61850 (via gateway) |
Technical Principles and Innovative Values:The ABB SPCD 3D53-AB operates on the fundamental Kirchhoff’s Current Law principle but enhances it with sophisticated logic to handle real-world complexities.
- Innovation Point 1: Advanced Ratio Differential with Dual Slope: Unlike simple overcurrent devices, the SPCD 3D53-AB uses a percentage restraint characteristic. It calculates both the differential current (Id) and the restraint current (Ir). During heavy external faults where CTs may saturate and produce spurious differential currents, the relay’s “slope” setting increases the trip threshold proportionally, ensuring absolute stability and preventing dangerous false trips that could blackout a plant.
- Innovation Point 2: Multi-Harmonic Inrush Restraint: A major challenge in transformer protection is distinguishing a fault from magnetizing inrush current, which contains high levels of 2nd harmonics. The relay’s built-in harmonic analysis algorithm continuously monitors the harmonic content. If the 2nd harmonic exceeds a set percentage of the fundamental, it blocks the trip signal, allowing the transformer to be safely energized without unnecessary outages.
- Innovation Point 3: High-Immunity Digital Signal Processing: Despite being a legacy product, the unit employs high-speed sampling and digital filtering to reject noise and transients. This provides exceptional immunity to the harsh electromagnetic interference (EMI) common in industrial switchyards, ensuring that the protection decision is based on clean, accurate phasor data.
