Description

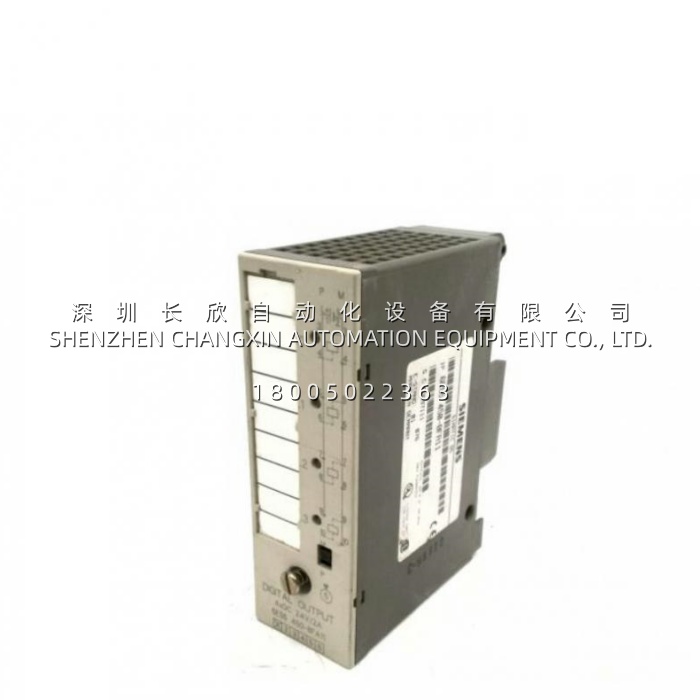

The Siemens 6ES5450-8FA11 is a digital output module from the SIMATIC S5 450 series, designed for the S5-100U, S5-115U, S5-135U, and S5-155U PLC systems . This module provides 8 transistor output channels operating at 24V DC, featuring group isolation with two independent isolated groups of 4 channels each .

Engineered for reliability in demanding industrial environments, the Siemens 6ES5450-8FA11 delivers robust actuator control while the group isolation design ensures that a fault in one output group does not compromise the operation of the other — a critical advantage in applications requiring high system availability . As a legacy product supporting vintage S5 installations, this module represents a vital spare for facilities still reliant on Siemens S5 automation infrastructure .



Application Scenarios

Consider a large petrochemical refinery where an S5-155U PLC controls critical valve actuators across multiple process units. The engineering team requires an output module that can drive solenoid valves and motor contactors while maintaining separation between safety-critical and non-critical control loops. Deploying the Siemens 6ES5450-8FA11 provides 8 output channels with 4+4 group isolation, allowing the team to physically separate safety interlock outputs from routine process control outputs within a single module. When a wiring fault caused a short circuit on one output channel, the group isolation confined the fault to its 4-channel group while the other group continued operating normally — preventing a total system shutdown and maintaining production continuity throughout the troubleshooting process.

For a water treatment plant operating a legacy S5-100U system controlling chemical dosing pumps and alarm annunciators, the 6ES5450-8FA11 proved essential for a critical output expansion. The module’s failsafe capability (as utilized in S5-95F configurations) and group isolation were particularly valued for applications where redundancy and fault tolerance are paramount . The compact form factor allowed installation in a crowded control cabinet without structural modifications.



Parameters

Main Parameters	Value / Description
Product Model	Siemens 6ES5450-8FA11
Manufacturer	Siemens (SIMATIC S5 Series)
Product Category	Digital Output Module (450 Series, Floating)
Number of Outputs	8 channels
Output Type	Transistor (floating/isolated)
Load Voltage	24V DC
Output Current per Channel	0.5A (some sources indicate 2A for failsafe variants)
Isolation Type	Group isolation — 2 groups of 4 channels each
Compatible Systems	S5-100U, S5-115U, S5-135U, S5-155U; S5-95F (failsafe variant)
Product Status	Obsolete / End-of-Life; New Surplus Available
Operating Temperature	0°C to +60°C (typical) / -25°C to +60°C
Weight	Approx. 0.2kg to 0.37kg
Dimensions (approx.)	50mm × 90mm × 70mm (varies by source)
Protection Class	IP20 (rack-mounted)
Direct Alternative	6ES5450-8MB11 (non-isolated, 2.0A/point)
