Product Overview

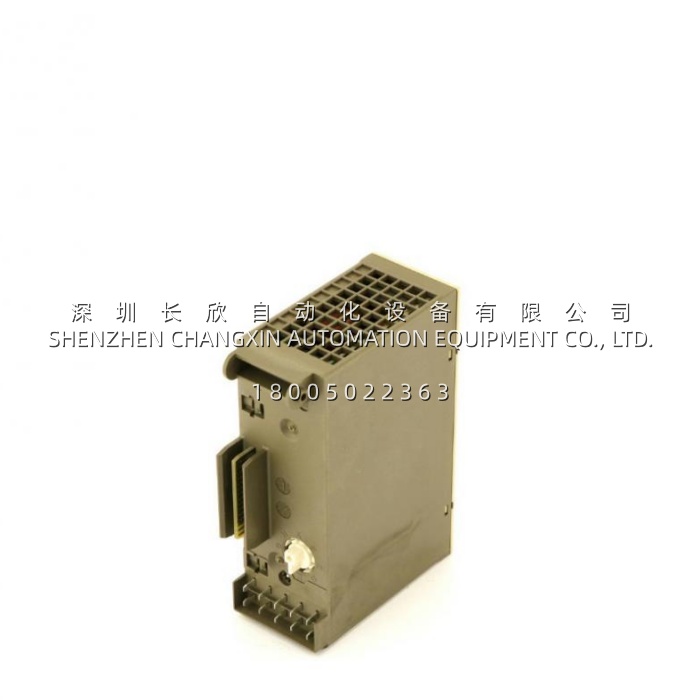

The 6ES5450-8FA12​ is a SIMATIC S5-450 series fail-safe digital output module from Siemens, configured as 4 fail-safe digital outputs (4 DA, “DA” = Deutsch “Digital Ausgang” in the safety context), 24 V DC, 2 A per channel, galvanically isolated, in the compact “Version M” mechanical form, and purpose-built for the S5-95F​ fail-safe PLC platform. This is not a general-purpose DO like the 6ES5440-8MA12​ (4 × 24 V DC / 0.5 A, non-isolated, non-safe) we covered previously — the 6ES5450-8FA12​ belongs to Siemens’ S5-era safety architecture, where the S5-95F CPU (the fail-safe variant of the S5-95U compact PLC) executes a certified safety program and requires F-DI and F-DO modules that support two-channel diagnostics, short-test periods, and galvanic isolation so that a single-point fault (welded output transistor, wire short to L+, etc.) cannot prevent the safety function from executing. The “8FA12” suffix decodes: 8 = compact S5-95U/100U/ET 100U mechanical family, F = fail-safe (450 is the F-DO subfamily; 430/440/441 are non-safe DI/DO), A = 24 V DC, 12 = component revision (8FA11 → 8FA12 succession, interchangeable on S5-95F without project change).Key architectural differentiators of the 6ES5450-8FA12​ vs. a standard 440/441/451 DO: (1) Two-channel 1-pin connection — each of the 4 outputs is driven by two internal switched paths (channel A + channel B) that converge on a single external terminal pin, allowing the S5-95F CPU to test them differentially (one on, one off → check current; both on → full 2 A; both off → check 0). This is the hardware backbone of S5-95F’s “diverse switch-off path” safety concept. (2) Short test period — the 6ES5450-8FA12​ supports the S5-95F CPU’s cyclical short-test window where the CPU briefly manipulates the two channels to verify the output stage and the external wiring aren’t welded or shorted, without disturbing the connected safety load (the test is timed within the safety-loop dead-time budget). (3) Galvanic isolation — the 24 V DC load side is optically isolated from the S5 backplane, and the 2 A/channel rating is 4× the 440-8MA12’s 0.5 A, meaning the 6ES5450-8FA12​ can directly switch meaningful safety loads — 24 V DC solenoid valves on safety-rated dump circuits, safety-rated interpose relays to 115 V AC motor-starter coils, brake-release magnets, danger-zone beacon/strobe circuits — without intermediate amplification.The 6ES5450-8FA12​ seats in a S5-95F rack (S5-95U compact safety chassis) and, like other compact-M modules, can also appear in ET 100U distributed heads under an IM 314/324 from a S5-115U/135U — though in safety applications the F-modules almost always live in the local S5-95F rack because the safety certification scope stops at the local backplane. Obsolescence-wise, the S5-95F platform was officially retired years ago and the 6ES5450-8FA12​ was cancelled without S7 direct replacement (the modern path is S7-1200 F-CPU + ET 200SP F-DO, which is a full re-panel, not a drop-in). The installed base it serves is niche but high-consequence: presses, shear lines, robot-cell safety loops, crane overload dump, winder snap-back arrest, pharmaceutical batch-safety interlocks — anywhere a 1990s–2000s European machine builder specced S5-95F for cost-sensitive safety (pre-S7-F, pre-PROFIsafe era). NOS and refurbished 6ES5450-8FA12​ units command a premium over 440/441 because the F-modules move slower in volume but are mission-critical when a safety-loop DO fails — you can’t substitute a 440-8MA12 (non-safe, no two-channel, no short-test) and keep the safety certification; you need the 6ES5450-8FA12​ exactly.

Technical Specifications
