Application Scenarios

In an aging coal-fired power plant, the existing analog input cards in the turbine control system had reached end-of-life, causing occasional signal drops from critical bearing temperature sensors. These dropouts would trigger nuisance turbine trips, costing the plant thousands in lost generation revenue. The plant’s controls engineer sourced the ABB 3BSE008544R1 as a direct, drop-in replacement for the failing cards. After a simple swap—performed during a routine outage—the new module’s precise 16-bit ADC captured the temperature signals with ±0.1% accuracy, eliminating the nuisance trips and restoring the maintenance team’s confidence in the system. The engineer noted that the module’s compatibility with the existing termination units (TU810/TU812) made the upgrade seamless .

This scenario highlights the ABB 3BSE008544R1‘s core value proposition: it is the “lifeline” for legacy ABB systems . By providing a reliable, high-accuracy interface between the physical process and the digital controller, it addresses the critical pain point of sensor signal degradation or loss—an invisible enemy that can cause process upsets, safety system activations, or costly downtime. Whether in a boiler control loop, a chemical reactor, or a water treatment plant, the ABB 3BSE008544R1 ensures that the control system “sees” the process clearly and reliably.



Parameters

Main Parameters	Value/Description

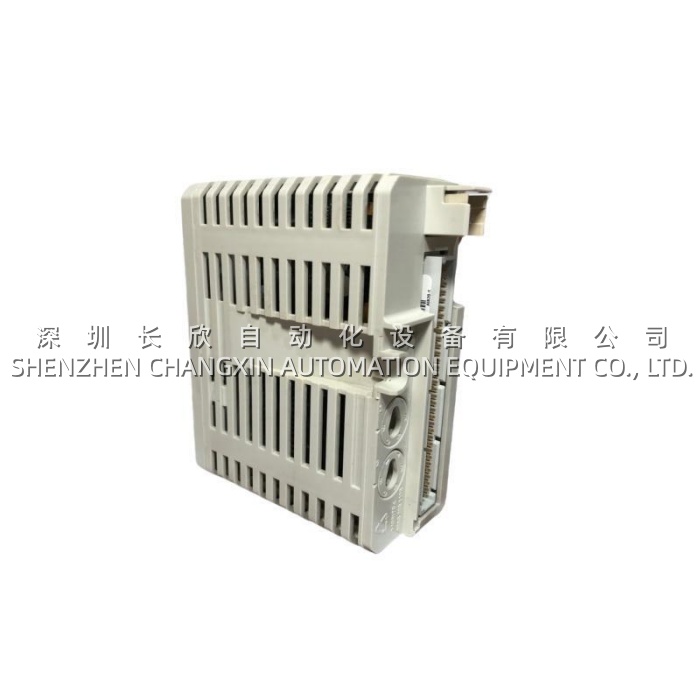

Product Model	ABB 3BSE008544R1 (AI820)
Manufacturer	ABB
Product Category	Analog Input Module (AI) / S800 I/O Series
Input Channels	4 to 8 independent channels (configuration dependent)
Signal Types	4-20 mA, 0-20 mA, ±20 mA, 0-10 V, ±10 V, 1-5 V, etc.
A/D Resolution	14-bit or 16-bit (depending on variant)
Accuracy	≤ ±0.1% of full scale
Input Impedance	Current: 250 Ω; Voltage: 200-290 kΩ
Isolation	Channel-group isolation (500 V AC group-to-group)
Supported MTUs	TU810, TU812, TU814, TU830, TU833
Operating Temperature	0°C to +55°C / -20°C to +60°C (variant dependent)
Storage Temperature	-40°C to +85°C
Mounting Type	Rack-mounted / DIN rail
Power Consumption	Approx. 1.7 W to 2 W



Technical Principles and Innovative Values

Innovation Point 1: High-Resolution Signal Conditioning
The ABB 3BSE008544R1 utilizes a high-resolution 14- to 16-bit analog-to-digital converter with precision signal conditioning circuitry . This allows it to resolve the smallest changes in a 4-20 mA signal—down to microampere levels—ensuring that process data is captured with fidelity critical for advanced control algorithms in boiler steam temperature or chemical reactor pressure control loops.

Innovation Point 2: Native Integration with ABB DCS Architecture
Unlike generic I/O modules that require complex mapping, the ABB 3BSE008544R1 is engineered to plug directly into the ABB S800 I/O rack. Its backplane communication is native to Advant OCS and 800xA systems . This ensures deterministic data exchange, high-speed scanning, and seamless integration with ABB’s Control Builder or Symphony Plus engineering tools .

Innovation Point 3: Robust Channel-Group Isolation
The ABB 3BSE008544R1 features galvanic isolation of up to 500V between channel groups . This design prevents ground loops and common-mode voltage disturbances—common in plants with long sensor cable runs (up to 600 meters) and high EMI—from corrupting signals on one channel and affecting others .

Innovation Point 4: Hot-Swap and Diagnostic Capability
The module supports hot-swap replacement, allowing maintenance to be performed without shutting down the controller . It is equipped with LED status indicators for power, communication, and per-channel signal integrity, enabling rapid troubleshooting and significantly reducing downtime during fault finding.



Application Cases and Industry Value

Case 1: Power Plant Turbine Vibration and Temperature Monitoring
As described earlier, an aging coal-fired power plant resolved nuisance turbine trips caused by failing legacy I/O cards by deploying the ABB 3BSE008544R1. The module’s high accuracy and seamless compatibility with existing termination units restored the integrity of the bearing temperature monitoring system. The upgrade eliminated the false trips, saving the plant over $100,000 annually in lost generation revenue.

Case 2: Chemical Reactor Pressure and Temperature Control
In a specialty chemical facility, a critical reactor required precise temperature control to ensure product quality. The existing analog input module was experiencing drift, causing the reactor’s PID loop to overheat the batch. After replacing the module with the ABB 3BSE008544R1, the process data was restored to its original accuracy. The plant’s process engineer noted that the module’s 0.1% accuracy was instrumental in maintaining the batch temperature within the tight specification, preventing a costly product re-run.
