Application Scenarios

Consider a large chemical plant running on an ABB AC 800M DCS. The control system is the plant’s brain, and a momentary power dip or scheduled maintenance outage could reset the controller, wiping out critical process data and risking a full plant restart. The ABB 3BSC760019E1, housed inside the SB822 backup unit, is the “insurance policy” that prevents this scenario . In a real-world case, a DCS maintenance team reported that after a controller unexpectedly lost power, the SB822 unit’s battery, a genuine 3BSC760019E1, kept the CPU’s SRAM alive for over two weeks, allowing operations to resume instantly without data loss when power was restored .

The 3BSC760019E1 is a consumable component, and ignoring its health is a common pain point. When this battery fails, the system often triggers alarms like “Memory Lost” or the controller’s clock resets to a default date after a restart—clear signs that the 3BSC760019E1 has reached the end of its service life . In the high-stakes world of continuous process industries, having a verified spare 3BSC760019E1 on hand during planned outages is not just recommended; it is a best practice for ensuring the reliability and uptime of your ABB DCS.



Parameters

Main Parameters	Value/Description

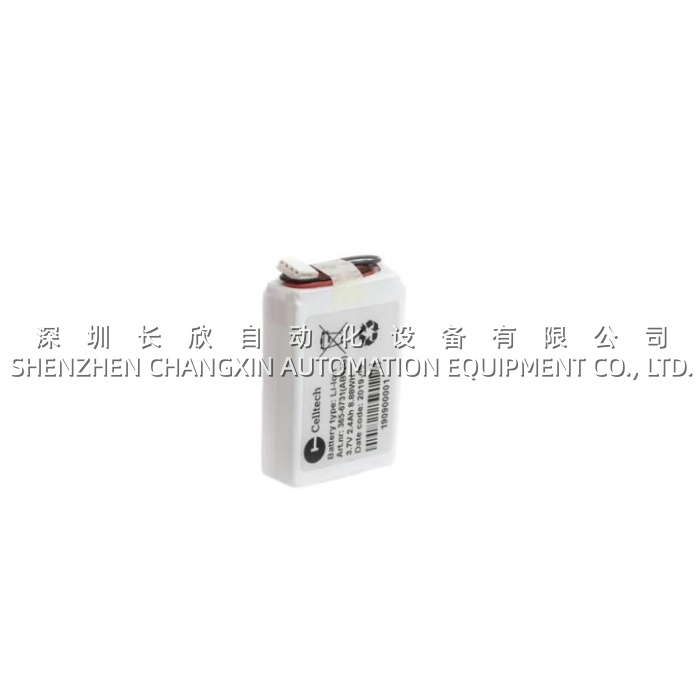

Product Model	3BSC760019E1 / SB822 AB12G
Manufacturer	ABB
Product Category	Rechargeable Battery Pack / Control System Accessory
Battery Chemistry	Lithium-Ion (Li-Ion), Rechargeable
Nominal Voltage	3.7 V (also cited as 3.75 V)
Typical Capacity	2.4 Ah (2400 mAh) / 2.3 Ah
Cycle Life	≥ 1000 charge/discharge cycles
Operating Temperature	-20°C to +60°C
Lithium Equivalent Content	0.8 g
Dimensions	Approx. 14.5 × 43 × 50 mm (Prismatic)
Weight	Approx. 50–57 g
Mounting	Installed internally within the SB822 battery unit
System Compatibility	ABB AC 800M (PM851/PM861/PM864/PM865, etc.) with SB822 unit



Technical Principles and Innovative Values

• Innovation Point 1: “Data Guardian” for Critical Process Control
  The primary role of the ABB 3BSC760019E1 is to act as the backup power source for an ABB controller’s volatile memory. In the event of a main power failure, the SB822 unit, powered by the 3BSC760019E1, immediately supplies a stable 3.7V voltage to the controller’s CPU to maintain its SRAM and real-time clock . This prevents the loss of running process logic, PID tuning parameters, and system time. The 3BSC760019E1 is the silent guardian that enables a “bumpless” restart after a power outage, eliminating the need for reprogramming or manual data re-entry, which can take hours and risk human error.
• Innovation Point 2: Advanced Li-Ion Chemistry with Long Shelf Life
  Unlike older NiCd or NiMH batteries, the 3BSC760019E1 leverages lithium-ion technology, offering a higher energy density in a more compact package . It is specified for an extended operational life with up to 1000 charge cycles . ABB’s technical documentation highlights that for optimal storage, the battery should be kept at -20°C to 25°C and charged once per year to 40% of its capacity to maintain its health . This is a crucial innovation for asset management in plants where annual maintenance shutdowns are the standard.
• Innovation Point 3: Engineered for Industrial Harshness and Compliance
  The 3BSC760019E1 is built to operate reliably across a wide temperature range of -20°C to +60°C, ensuring it will perform in a hot control cabinet or a cold, unheated facility . With a proven lifespan of 500-1000 cycles, it offers a predictable replacement interval, enabling proactive maintenance and minimizing unplanned downtime .



Application Cases and Industry Value

Case Study: Preventing Data Loss in a Food & Beverage Production Line
A large beverage manufacturer using an ABB AC 800M system for batch processing reported erratic “Memory Lost” alarms following brief power sags on their production floor. The DCS would restart, but the controller would revert to default settings, causing a loss of recipe parameters and stopping the line for hours each time. The maintenance team investigated and discovered that the internal battery within their SB822 unit—a generic replacement—had a lower capacity than the original 3BSC760019E1.

After sourcing and installing the genuine ABB 3BSC760019E1, the system’s backup time was restored to its full duration. The plant experienced a subsequent power sag, but the controller retained all its data, and production resumed immediately once power was restored . The maintenance manager estimated that this simple battery replacement saved the plant over $50,000 in a single avoided production stoppage.

Industry Value
The 3BSC760019E1 delivers measurable value by:

• Ensuring Process Integrity: Protects the controller’s memory to ensure that critical control logic, setpoints, and process parameters are never lost, preventing costly downtime and product quality deviations.
• Simplifying Maintenance: Predictable cycle life enables condition-based maintenance, allowing teams to replace the battery during planned outages without the risk of unexpected failure.
• Reducing Risk: A genuine 3BSC760019E1 ensures the SB822 unit meets its designed backup time specification, giving engineers confidence that the system will survive a power event.
