Application ScenariosAt a 10 kV urban ring-main substation, the original feeder bays were fitted with a mishmash of analog ammeters, a mechanical flag annunciator, and a key-operated “close/trip” switch—none of which told the duty operator whya breaker tripped at 3 a.m. During a bay-by-bay refresh, the utility replaced the analog cluster with a 1VCR007346 G0032​ HMI V5 on each cubicle door, paired with a REF542plus base inside the LV compartment. Now when a feeder faults, the operator walks the bay, reads the LCD single-line (right-side text shows the trip code—overcurrent 51, earth fault 50N, whatever fired), pages through the 8 programmable alarm LEDs, and can re-close locally once the fault is cleared—all without a laptop or SCADA login. The shift supervisor’s comment after month one: “The 1VCR007346 G0032​ turned a ‘something tripped, call the engineer’ bay into a ‘here’s what happened, reset and carry on’ bay.” For utilities where the substation might be unattended and the first responder is a generalist switchgear tech, that local intelligence is the difference between a 10-minute reset and a 2-hour escalation.

Parameter

Technical Principles and Innovative Values

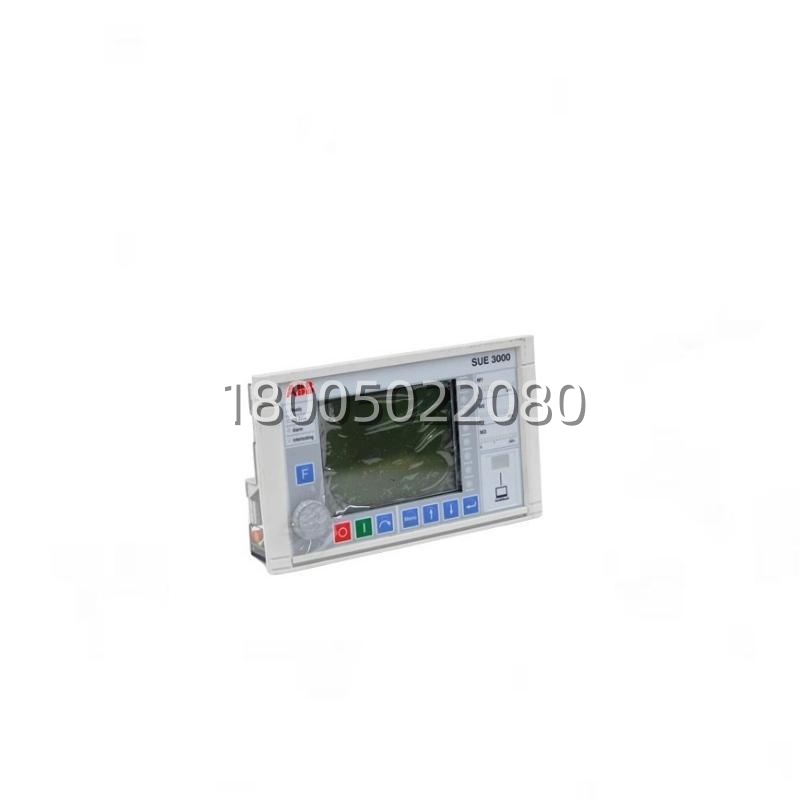

• Innovation Point 1: Door-Mount Independence with Its Own Aux Supply.​ The 1VCR007346 G0032​ isn’t a dumb slave display—it carries its own auxiliary power input (110–240 V DC class) and can survive even if the base unit powers down, letting the operator still read the last-held trip context and attempt a local reset. The external cover variant protects the LCD and buttons from incidental knocks in cramped LV compartments.
• Innovation Point 2: Split-Screen LCD – Single-Line + Event Text.​ Most bay HMI units pick one: mimic ortext. The 1VCR007346 G0032​ splits the LCD left/right—single-line diagram with breaker/disconnector positions on the left, plain-text trip codes, measurement values, and menu navigation on the right. During a fault walk-up, the operator sees both“CB open” on the mimic and“51N Pickup – Phase C, 4.2 kA” in the text pane—no menu diving required.
• Innovation Point 3: Electronic Key (E-Key) Access Tiering.​ The HMI front carries an E-key socket. Insert a technician-level key → view + acknowledge alarms. Insert an engineer-level key → enter protection setting menus, change pickup/delay curves, modify control logic. The 1VCR007346 G0032​ thus enforces procedural discipline at the cubicle door—you can’t accidentally change a 51 setting with a technician key in, and you can’t be locked out of alarm ack with an engineer key in. Simple, physical, effective.
• Innovation Point 4: 20-Minute Backlight Sleep + Emergency Open Hardwire.​ The white backlight auto-extinguishes after 20 minutes of inactivity to preserve life in hot cubicles, but wakes on any button press. The red emergency open button is a hardware-priority path—press it and the 1VCR007346 G0032​ forces a CB open command down the RS-485 link regardless of menu state, menu lock, or E-key level. That’s the “someone’s hand is in the busduct” safeguard.

Application Cases and Industry ValueA municipal 20 kV distribution utility in coastal China standardized ABB 1VCR007346 G0032​ HMI units across 18 feeder bays during a REF542plus rollout replacing 1990s electromechanical + analog clusters. Each bay served a mix of cable feeders and a small transformer tap; the G0032’s Chinese locale meant the local switchgear crew (not all of whom spoke English) could navigate menus, read trip codes, and perform local close/open without calling the central dispatching engineer for every event. After the first typhoon season post-retrofit, the utility logged a 40% reduction in “nuisance dispatch calls”—most trips were now resolvable at the bay door: read the LCD (“Earth fault, feeder 3, 5.8 kA”), patrol the cable route, find the tree branch, clear, reset via HMI, close. The operations chief noted: “The 1VCR007346 G0032​ didn’t just replace gauges—it moved the first-diagnosis step from the control room to the cubicle door.”Related Product Combination SolutionsBuild a complete REF542plus bay around the 1VCR007346 G0032​ with these ABB companions:

• REF542plus Base Unit:​ The “brain” behind the HMI—houses power supply, processor (DSP + MC), analog input board, binary I/O modules, and optional communication module. The 1VCR007346 G0032​ connects to it via RS-485 shielded twin (ABB cable 750142/801, /817, /818, or /819 depending on run length).
• 1MRK000173-CCR00:​ Binary I/O module (8DI+12DO) covered in an earlier review—commonly populates the REF542plus base’s slot rack for breaker aux, trip circuit monitor, local pushbuttons.
• 750142/817 (2.5 m) / 750142/818 (3.5 m):​ HMI-to-base RS-485 cables—match length to cubicle geometry; the 1VCR007346 G0032​ ships without cable, so order this alongside.
• PCM600:​ ABB’s engineering tool—while REF542plus has its own Configuration Tool (MRS 151062) and Operating Tool (MRS 151022) CDs, sites running REC670/RER615 alongside will already have PCM600; the REF542plus config tool is standalone but shares the workflow mindset.
• REC670 / RER615:​ If the bay later migrates from REF542plus to the newer REG/REC670 ecosystem, the 1VCR007346 G0032​ is a REF542plus-only HMI—plan for the REC-series HMI/display as the upgrade path.
• 1SBP260102R1001 XC08L1 (AC500-XC):​ Not directly in the REF542plus rack, but often co-spec’d on the same site—AC500-XC handles the bay’s auxiliary machinery (cooling fans, LOTO interlocks) while REF542plus + 1VCR007346 G0032​ owns the protection side.
