Technical Specifications

Parameter Name	Value

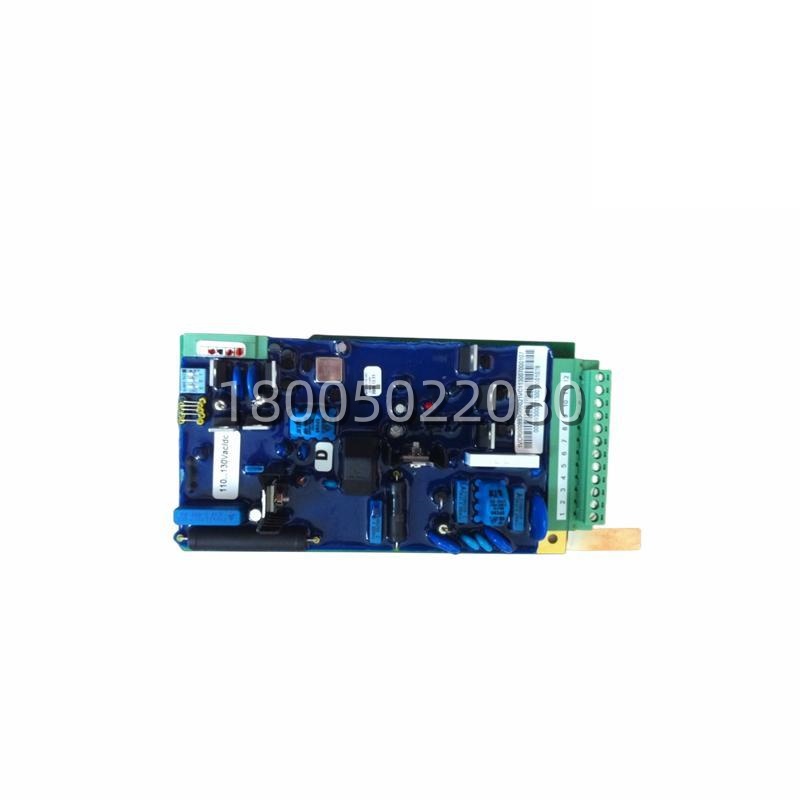

Product Model	1VCR000993G0002
Manufacturer	ABB
Product Type	Power Supply Board / Power Module
Input Voltage	85-264V AC / 100-300V DC
Output Voltage	24V DC
Output Current	5A / 41.67A (variant dependent)
Efficiency	≥92% / 96%
Protection Features	Overvoltage, Overcurrent, Short Circuit Protection
Operating Temperature	-40°C to +70°C / -20°C to +60°C
Protection Class	IP20
Dimensions	115mm x 110mm x 45mm (approx.)
Weight	0.3 kg (approx.)
Certifications	CE, UL, CSA
Origin	Sweden / USA / Switzerland



Main Features and Advantages

Wide Universal Input and Efficient Power Conversion

The ABB 1VCR000993G0002 supports an exceptionally broad input voltage range of 85-264V AC or 100-300V DC, making it compatible with power systems worldwide without requiring additional voltage conversion equipment . The ABB 1VCR000993G0002 achieves high efficiency ratings of ≥92%, minimizing energy loss and reducing heat generation within control cabinets . This efficiency translates directly into lower operational costs and improved long-term reliability of the ABB 1VCR000993G0002 in continuous-duty applications.

Comprehensive Protection and Robust Design

Engineered for demanding industrial environments, the ABB 1VCR000993G0002 incorporates multiple protection mechanisms including overvoltage, overcurrent, and short-circuit safeguards . These features ensure that downstream control electronics remain safe from power anomalies. The ABB 1VCR000993G0002 operates reliably across an extended temperature range of -40°C to +70°C, demonstrating its suitability for outdoor and unconditioned installations .

Seamless Integration with ABB Systems

The ABB 1VCR000993G0002 is specifically designed to complement ABB’s automation ecosystem, particularly the AC 800xA DCS and VSC vacuum contactor product lines . This integration ensures that the ABB 1VCR000993G0002 provides the precise voltage regulation required by these systems, supporting fault-tolerant and redundant power configurations for critical applications . The modular design of the ABB 1VCR000993G0002 facilitates quick installation and replacement, minimizing system downtime during maintenance .

Compact Form Factor and Industrial Durability

With compact dimensions of approximately 115mm x 110mm x 45mm and a weight of just 0.3 kg, the ABB 1VCR000993G0002 is optimized for space-constrained control panels . Its IP20 protection rating and robust construction ensure long-term reliability even in dusty or electrically noisy environments typical of manufacturing floors and process industries .
