Product Overview

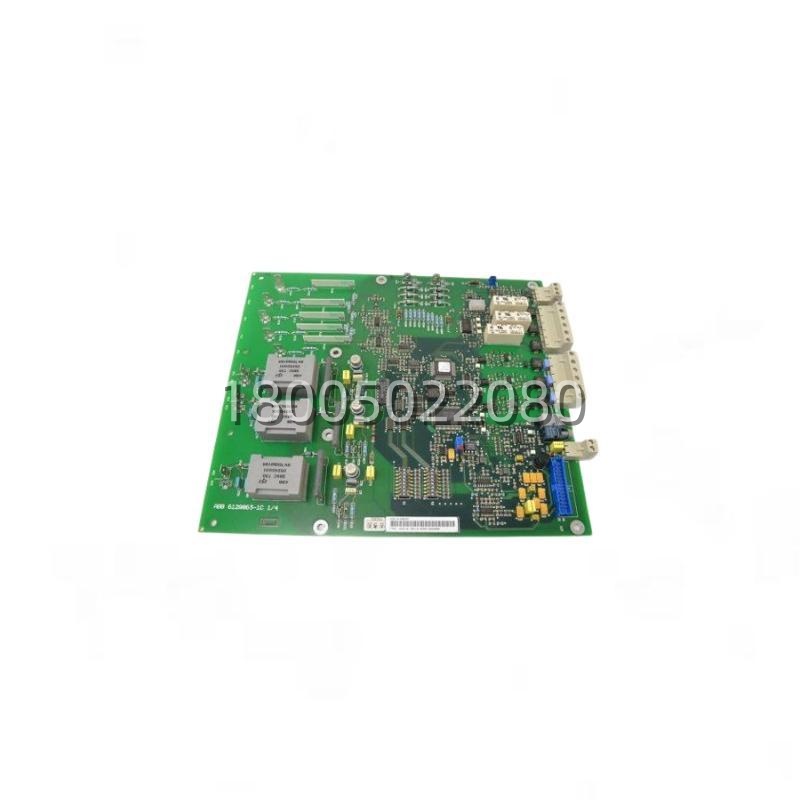

The ABB NDSC-01​ (Article Number 61298487) is a DDCS (Distributed Digital Control System) communication and local I/O interface board designed for use inside ABB low- and medium-voltage AC drive cabinets—primarily the ACS600, ACS800, and ACS880 series of variable frequency drives (VFDs) and inverters. The NDSC-01​ serves as the physical link between the drive’s control unit (such as an RMIO-01, AMXE-01, or AINT-02 board hosting the motor control firmware) and the external DDCS network, which may connect to an ABB ACS-CP/DP control panel, a PLC via DDCS adapter, or a multi-drive fiber-optic DDCS ring. In addition to its communication role, the NDSC-01​ provides three digital inputs (24 VDC sinking/sourcing), three digital outputs plus one relay output, a seven-segment status display, and two 8-bit DIP switches for DDCS node address selection and bus termination—making it a compact all-in-one interface for local drive commissioning, diagnostics, and basic I/O without occupying additional panel space.Within the drive architecture, the NDSC-01​ plugs into a dedicated slot on the drive’s control electronics board stack (typically the RMIO or adapter board) and communicates bidirectionally with the main control processor over the DDCS protocol at 4 Mbit/s via fiber optic or electrical DDCS links. It enables the drive to receive start/stop commands, reference setpoints, and parameter change requests from an external controller or operator panel, and to return drive status, fault codes, and actual process values. The NDSC-01​ also generates a regulated +24 VDC auxiliary output (typically up to 500 mA) that can power small external devices such as a panel-mounted selector switch LED or a simple field sensor, reducing the need for a separate 24 VDC supply in small standalone installations. For maintenance and commissioning teams, the onboard seven-segment display shows the DDCS node address, communication status, and—when queried—the last active fault or warning code, providing immediate visual feedback without requiring a laptop or control panel connection.Because the NDSC-01​ is a frequently handled board during drive commissioning and is exposed to ESD, static discharge from panel-mounted cabling, and occasional backplane connector wear, it is one of the more common spare parts ordered for legacy ACS600/ACS800 systems as well as current ACS880 installations. A failed or incorrectly addressed NDSC-01​ manifests as “Panel Not Found,” inability to upload/download parameters, or loss of DDCS communication in multi-drive systems—symptoms that are quickly resolved by swapping in a tested NDSC-01​ with the correct DIP-switch node setting. For plants standardizing on ABB drives, keeping a NDSC-01​ (61298487) in the critical-spare inventory is a low-cost insurance policy against unplanned drive downtime that could halt a conveyor, pump, compressor, or main process line.

Technical Specifications

Product Model | NDSC-01​ (ABB Art. No. 61298487)Manufacturer | ABB Oy / ABB Drives (Finland / Global)Product Type | DDCS Communication & Local I/O Interface Board for ABB ACS600 / ACS800 / ACS880 DrivesCompatible Drive Series | ABB ACS600, ACS800 (single & multi-drive), ACS880 (with compatible RMIO / adapter)Communication Interface | 1 × DDCS Channel (electrical or optical DDCS, 4 Mbit/s), connects to ACH-xx panel, DDCS adapter, or next drive in ringDigital Inputs (DI) | 3 × 24 VDC (sinking or sourcing selectable), via screw terminals on drive I/O barrier strip (routed through NDSC-01​ logic)Digital Outputs (DO) | 3 × 24 VDC transistor outputs (max 100 mA each) + 1 × relay output (NO/NC, 250 VAC / 30 VDC, 2 A resistive)Auxiliary Output | +24 VDC ±10%, max 500 mA (for external low-power devices)Display | 7-segment LED display (shows node address, status codes, last fault number)Configuration | 2 × 8-bit DIP switches — Node Address (0–63), DDCS Termination Enable/Disable, other option bits per drive manualPower Supply | Derived from drive control unit backplane (typically 5 VDC / ±12 VDC internally regulated; no external power required for board operation)Indicators | Power LED, DDCS Link LED, DI/DO status LEDs (on associated drive I/O terminals, not on the NDSC-01​ itself)Operating Temperature | 0 °C to +60 °C (derating may apply inside enclosed drive cabinet)Storage Temperature | -40 °C to +85 °CMounting | Plugs into designated DDCS slot on RMIO-01 / AMXE-01 / compatible ACS880 control board; secured by retaining screw / ejectorCertifications | CE, UL, cUL, RoHS (later production)Dimensions (Board Only) | Approx. 120 mm × 85 mm (standard ABB drive option card format)

Main Features and Advantages

Native DDCS protocol support with fiber/electrical compatibility: The NDSC-01​ implements ABB’s proprietary DDCS messaging at 4 Mbit/s, allowing seamless connection to an ABB ACS-CP-D / ACS-CP-U control panel, a DDCS-to-Profibus/Modbus gateway (e.g., RPBA-01, RCNA-01 via DDCS adapter), or another drive’s DDCS port in a multi-drive daisy chain. This eliminates the need for third-party protocol converters when integrating ACS800/880 drives into an existing ABB DDCS control network and preserves deterministic parameter access and drive diagnostics.Built-in local I/O and 24 VDC auxiliary supply: Unlike pure communication interface cards, the NDSC-01​ brings three digital inputs and three transistor outputs plus one relay output onto the drive’s I/O map, accessible through standard ABB drive parameter groups (e.g., 10.xx DI configuration, 14.xx DO configuration). The onboard +24 VDC 500 mA output can power a local start pushbutton lamp, a door-interlock LED, or a small proximity switch—removing the requirement for a separate panel-mounted power supply in many machine-level applications.Seven-segment display for rapid field diagnosis: The front-facing 7-segment digit on the NDSC-01​ shows the configured DDCS node address at power-up and can be scrolled (via a small tact switch or automatically in fault mode) to display the most recent fault code. This allows a technician to confirm DDCS addressing is correct and identify common issues—such as “No DDCS Link” (node mismatch or missing terminator) or “Panel Disconnected”—without removing the drive cover or connecting a PC. In multi-drive panels where several NDSC-01​ boards are present, the visible node number on each board prevents accidental mis-addressing during service.DIP-switch node addressing with termination control: Two 8-position DIP switches on the NDSC-01​ set the DDCS node address (0–63, though practical limits depend on drive type) and enable/disable the 120 Ω DDCS bus termination resistor. Correct termination is critical for signal integrity on electrical DDCS links; the NDSC-01​ makes this a simple toggle rather than requiring external resistors or jumper blocks. Clear silk-screen labeling beside the switches minimizes setup errors during initial commissioning.Hot-swap capable in supported configurations: When used with ACS800/880 drives that have redundant control voltage and the DDCS link is not the sole communication path being reconfigured, the NDSC-01​ can be replaced with the drive powered—though ABB generally recommends powering down for board changes. The replacement NDSC-01​ will inherit the node address and I/O parameter mapping already stored in the drive’s non-volatile memory, enabling true plug-and-play spare replacement that gets the drive back online in under two minutes.
