Description

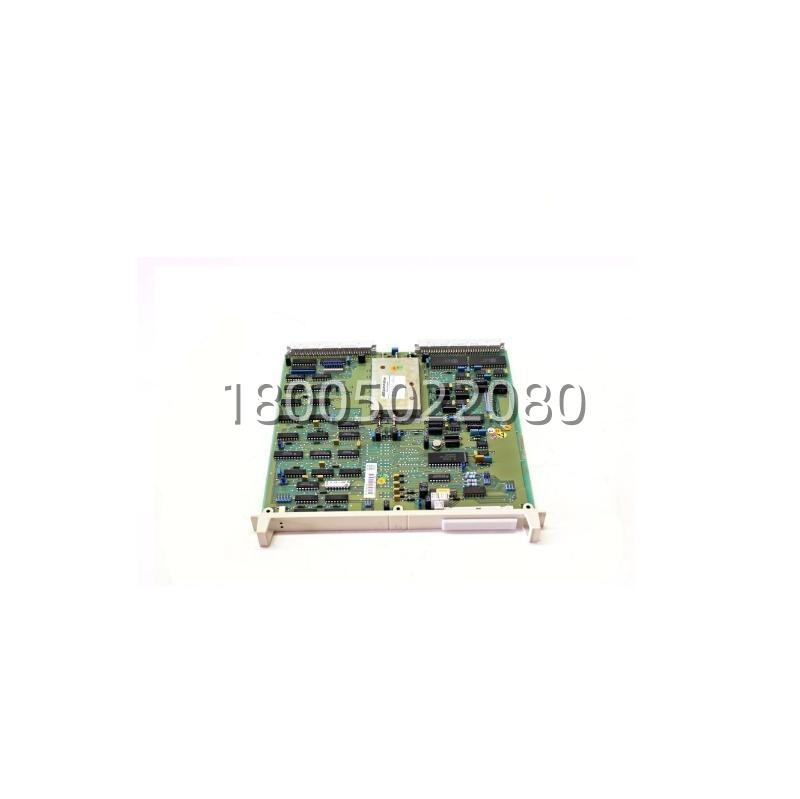

The ABB 57120001-HZ DSAI 155 is a high-density analogue input board from ABB’s S100 I/O family, designed for use in Advant OCS, Symphony™ Plus, MOD 300, and MasterPiece 200 distributed control systems -13-2. This module is engineered to directly acquire low-level millivolt signals from thermocouples, providing 14 differential input channels with on-board cold-junction compensation and 16-bit A/D conversion -13-9. The hardware revision identified as 2668 184-143/1 distinguishes this board as a key component for precise temperature measurement in power generation, chemical processing, and other critical process industries -13-2. Unlike generic analog input modules, the 57120001-HZ DSAI 155 eliminates the need for external temperature transmitters and signal conditioners, streamlining the interface between field sensors and the DCS controller.

Application Scenarios

Consider a large coal-fired power plant upgrading its boiler rear-pass temperature monitoring system. The original setup used barrier-type cold-junction compensators and older analog input cards that suffered from signal drift and required frequent recalibration -13. The plant engineers replaced the legacy I/O with six ABB 57120001-HZ DSAI 155 boards installed in an S100 I/O rack connected to their Advant Controller 160 -13. Each 57120001-HZ board acquired 14 differential thermocouple signals, with the on-board cold-junction compensation referenced to the rack’s ambient sensor -13. Following commissioning, the DCS displayed linearized temperature values directly—eliminating external scaling—and the plant’s annual calibration report showed a 60% reduction in temperature-loop deviations -13. When one channel flagged an open circuit via the module’s embedded wire-break diagnostic, a technician identified and repaired a loose thermocouple connection before any process disruption occurred, demonstrating the operational value of the 57120001-HZ’s built-in diagnostics -13.

In a chemical processing facility with multiple reactors requiring precise temperature control, the ABB 57120001-HZ DSAI 155 integrates seamlessly with the MOD 300 DCS. Its ability to accept J, K, T, E, R, S, B, and N thermocouple types with 16-bit resolution ensures accurate monitoring of exothermic reactions, while the channel-to-system isolation of up to 500V AC protects the controller from electrical noise present in high-voltage switchgear rooms -13-2. The board’s hot-swap capability allows for replacement during planned outages without a full system restart, reducing downtime and improving overall plant availability -13-7.

Parameter
