Application Scenarios
A municipal utility faces a mandate to improve its distribution grid’s visibility and implement fault location, isolation, and service restoration (FLISR) schemes. Their 30-year-old substation, however, relies on dozens of perfectly operational ABB REF 542plus feeder protection relays, which communicate only via the legacy, optically isolated SPA bus. Replacing all these relays with new IEC 61850-capable units is a multi-million dollar capital project. Instead, the utility deploys the ABB SPA-ZC 402 Ethernet Adapter in each protection cabinet. Each SPA-ZC 402 connects to the existing SPA fiber loop, while its Ethernet port integrates into a new Gigabit station LAN. Instantly, the old relays gain a modern voice, streaming real-time measurements, statuses, and event reports to the new SCADA/EMS system via IEC 61850 MMS. The SPA-ZC 402 also enables critical GOOSE messaging for high-speed interlocking between bays, a functionality previously impossible. This scenario highlights the adapter’s unparalleled value: transforming a stranded, “islanded” legacy asset into a fully integrated, smart grid component, directly addressing the pain points of capital preservation, interoperability, and compliance with modern grid codes.
Parameter
| Main Parameters | Value/Description |
|---|---|

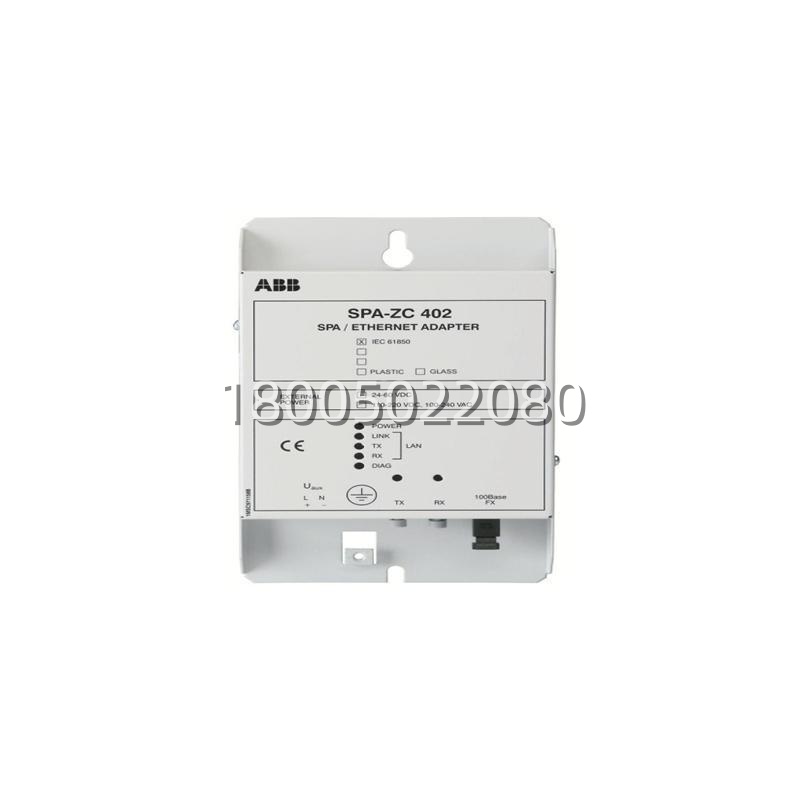

| Product Model | ABB SPA-ZC 402 |
| Manufacturer | ABB (Grid Automation) |
| Product Category | Protocol Converter / Ethernet Communication Gateway |
| Primary Function | SPA Bus to IEC 61850 / Modbus TCP Gateway |
| Uplink Protocol | IEC 61850-8-1 (MMS), GOOSE, Modbus TCP, SNTP, FTP. [Provides standardized, multi-service industrial Ethernet connectivity] |
| Downlink Protocol | ABB SPA Bus (IEC 60870-5-103 derived). [Connects directly to legacy ABB protection and control IEDs] |
| SPA Interface | Optical fiber (Plastic FO, HCS®, or glass). [Utilizes the existing field wiring infrastructure] |
| Ethernet Interface | 2x 10/100BASE-TX RJ-45 ports. [Enables daisy-chaining or network redundancy schemes] |
| Power Supply | 24-60 VDC or 100-240 VAC/DC. [Wide-range input for flexible cabinet integration] |
| Operating Temperature | -10°C to +55°C. [Suitable for standard industrial and substation environments] |
| Installation | DIN-rail mounting. [Facilitates quick and tidy installation in control panels] |
| Configuration Tool | ABB Communication Engineering Tool (CET). [Dedicated software for intuitive mapping and setup] |
| Certifications | CE, UL, IEC 61850 Ed.2, IEEE 1613. [Guarantees compliance and environmental robustness] |
Technical Principles and Innovative Values
The ABB SPA-ZC 402 is more than a simple protocol translator; it is an intelligent data model mapper and network gateway.
- Innovation Point 1: Native IEC 61850 Server with Full Data Modeling. Unlike basic converters that offer simple register mapping, the SPA-ZC 402 hosts a full IEC 61850 server. It dynamically builds a complete data model (Logical Devices, Logical Nodes) that represents the connected SPA device. This allows engineering tools to discover the gateway and its connected IED as a native IEC 61850 device, enabling seamless integration with systems from any vendor, not just ABB.
- Innovation Point 2: Dual-Role Data Bridging with Deterministic Performance. The gateway performs simultaneous master (client) and slave (server) roles. It actively polls the SPA devices as a master, then serves that data as a slave via IEC 61850 MMS. Crucially, for time-critical signals, it supports IEC 61850 GOOSE publishing directly on the Ethernet network. This allows legacy relays to participate in high-speed (sub-4ms) protection signaling schemes, a capability once thought impossible without hardware replacement.
- Innovation Point 3: Comprehensive Data and File Service Gateway. The SPA-ZC 402 provides full bidirectional services. Beyond real-time data, it acts as a file gateway, enabling the upload of COMTRADE fault records and oscillography files from the connected relay to the network via FTP. It also allows remote setting and configuration management, turning a locally managed device into a fully network-addressable asset.
