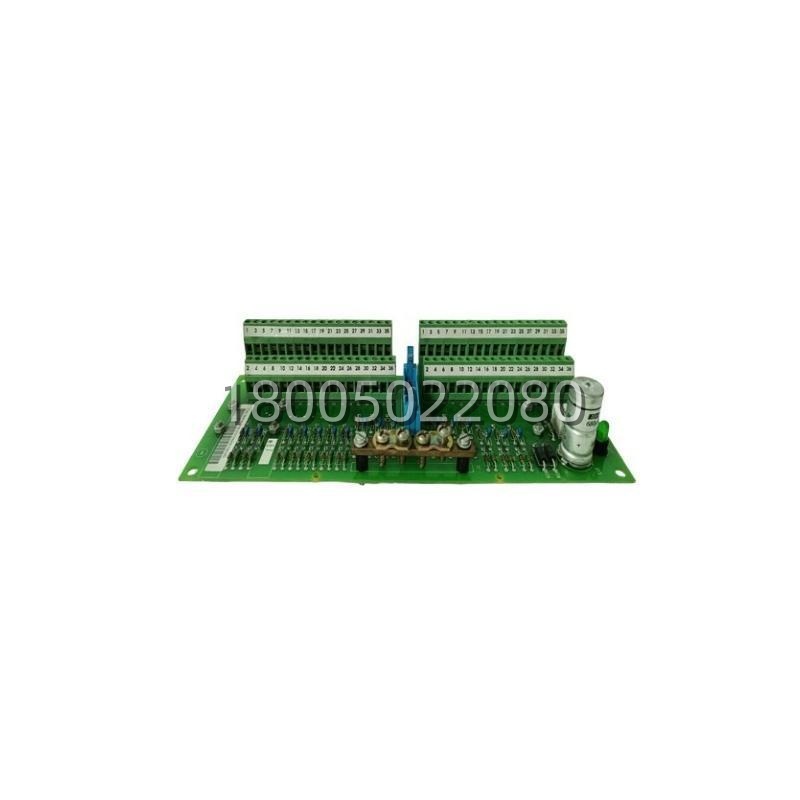

Application Scenarios:In a high-precision synchronized printing press driven by multiple ABB ACS880 drives, the exact speed and angular position of each motor-driven roller must be matched to within fractions of a degree to prevent color misregistration and material tearing. The feedback signals from high-resolution encoders on each motor are low-voltage and susceptible to noise over long cable runs. The ABB SCYC55830 58063282 tacho term board is deployed within each drive cabinet to solve this. It provides robust, shielded terminal blocks for connecting the encoder cables, supplies the required 5V or 12V DC power to the encoder, and conditions the incoming sine/cosine or pulse train signals. It amplifies, filters, and converts these signals, rejecting electrical noise from the drive’s power electronics, and presents a clean digital signal to the drive’s motion controller. This ensures the control system receives flawless feedback for precise torque and speed regulation, which is the absolute foundation for print quality and process stability.
Parameter:
| Main Parameters | Value / Description |
|---|---|
| Product Model | SCYC55830 (Drawing Code), 58063282 (Article Code) |
| Manufacturer | ABB |
| Product Category | Feedback Interface / Tachometer Terminal Board |
| Typical Drive Compatibility | ACS 800, ACS 880, ACS 1000 and other high-performance drive platforms |
| Primary Function | Interface, signal conditioning, and power supply for motor feedback devices |
| Supported Feedback Types | Tachogenerators (Tacho), Incremental Encoders (HTL, TTL), Sin/Cos Encoders, Resolvers |
| Input Signals | Accepts analog tacho voltage, digital encoder channels (A, A,B, B,Z, Z), sin/cos 1Vpp |
| Output Signals | Conditioned digital signals to the drive’s control board (e.g., to an RTAC board) |
| Excitation Supply | Provides stabilized DC voltage output (e.g., +5V, +12V, ±15V) to power the feedback sensor |
| Signal Conditioning | Includes filtering, amplification, comparator circuitry, and line driver/receiver functions |
| Electrical Isolation | Galvanic isolation between field wiring (sensor side) and drive control electronics for noise immunity |
| Mounting/Form Factor | Printed circuit board designed to mount on standoffs or within a dedicated slot in the drive |
| Connection Interface | Screw terminal blocks or sub-D connectors for field wiring |
High-Noise-Immunity Signal Path Design: The board’s circuitry is specifically designed to reject common-mode noise and differential noise induced in long sensor cables running parallel to motor power cables. It employs techniques like differential line receivers, shielded isolation, and advanced filtering. This ensures that the delicate millivolt-level signals from a sine encoder or the fast edges of an encoder pulse train are not corrupted, which is absolutely vital for preventing jitter in speed measurement and loss of position synchronization in multi-drive systems.
