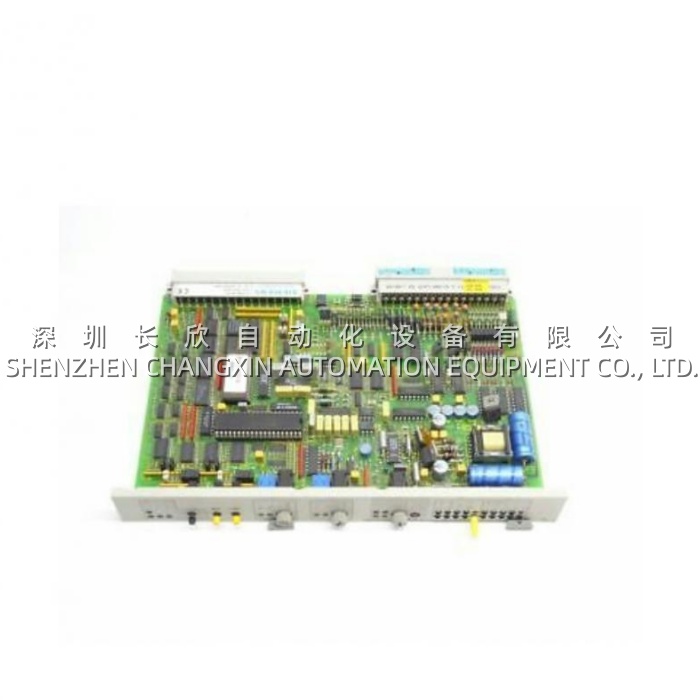

The Siemens 6DS1403-8CB​ delivers exceptional value to plant operators and DCS engineers by providing dual-channel, deterministic PI loop control within Siemens’ proven Teleperm M process automation architecture. Its defining characteristic is the integration of two fully independent PI controllers on a single compact subrack module, enabling the Siemens 6DS1403-8CB​ to regulate two process variables simultaneously without consuming additional rack slots or requiring external loop controllers. This density is particularly valuable in Teleperm M installations where subrack real estate is shared across binary I/O, analog I/O, communication, and specialty function modules.Dual Independent PI Controllers: Each of the two “Controller K” channels on the Siemens 6DS1403-8CB​ operates autonomously with its own setpoint, process variable input, tuning parameters (Kp, Tn, Tv as applicable), and analog output. This dual-channel architecture allows a single Siemens 6DS1403-8CB​ to, for example, control zone 1 and zone 2 temperature on a multi-zone furnace, or regulate upstream and downstream pressure on a process skid, or manage flow and pressure on a pump-around loop—all within one module. The independence of channels also means that a fault or maintenance action on one loop does not compromise the other, enhancing overall system availability.Flexible Algorithm Ecosystem: While the Siemens 6DS1403-8CB​ hardware is fundamentally a PI execution engine, it operates under the broader Teleperm M firmware framework where the AP can configure extended control structures—PID with derivative filtering, fuzzy logic overlays for nonlinear processes, and adaptive gain scheduling for wide-range operation. This firmware-level flexibility means the Siemens 6DS1403-8CB​ hardware investment is future-proofed against evolving process requirements; tuning and algorithm changes are executed via the Teleperm M engineering workstation without hardware modification.Standard Analog Signal Compatibility: The Siemens 6DS1403-8CB​ accepts and delivers industry-standard 4-20 mA and 0-10 V analog signals, ensuring seamless interfacing with the vast installed base of Teleperm M analog I/O modules (FUM-series equivalents in the 6DS ecosystem) and field instruments—temperature transmitters, pressure transducers, flow meters, control valves with I/P converters, and VFD reference inputs. This signal-level compatibility means the Siemens 6DS1403-8CB​ drops into existing Teleperm M architectures without requiring signal conditioning adapters or protocol gateways.Deterministic Teleperm M Backplane Integration: The Siemens 6DS1403-8CB​ communicates with the AP and I/O modules via the Teleperm M internal system bus through the 6DS subrack backplane, ensuring cycle-time deterministic data exchange that is essential for stable closed-loop control. Setpoint updates from the AP, process variable reads from analog input modules, and output writes to analog output modules all occur within bounded scan cycles—eliminating the jitter and latency that would destabilize fast or mildly oscillatory processes. This deep architectural integration ensures the Siemens 6DS1403-8CB​ operates as a native, first-class citizen of the Teleperm M DCS.Industrial-Grade Robustness: Engineered for process plant environments, the Siemens 6DS1403-8CB​ operates reliably from -25°C to +60°C—a wider low-temperature envelope than many DCS modules, making it suitable for outdoor skids, arctic pipeline stations, and unheated auxiliary buildings. Its 24 V DC power draw (≈100 mA max) from the subrack backplane eliminates separate power wiring, while the IP20 rating (when cabinet-installed) and German-manufactured PCB deliver the quality and reliability that have made Teleperm M a legend in process automation. The compact ~0.5 kg footprint minimizes cabinet space and shipping/handling burden for spares logistics.Critical Legacy Spare Part: As Siemens has transitioned Teleperm M into obsolescence, the Siemens 6DS1403-8CB​ has become an irreplaceable spare part for the thousands of Teleperm M systems still operating worldwide. Its dual-PI functionality cannot be substituted by generic loop controllers without sacrificing AP integration, deterministic bus timing, and firmware-level algorithm support—only the authentic Siemens 6DS1403-8CB​ preserves the original system’s control performance. For plant operators running Teleperm M-based continuous-process systems, maintaining strategic spare inventory of the Siemens 6DS1403-8CB​ is essential for business continuity.

Application Field

The Siemens 6DS1403-8CB​ serves as a precision loop-regulation workhorse across the Teleperm M-installed base in process industries, where its dual PI controllers deliver stable, deterministic control of temperature, pressure, and flow in continuous-process environments. In chemical and petrochemical plants, the Siemens 6DS1403-8CB​ is extensively deployed in reactor temperature zoning, distillation column pressure control, and pump-around flow regulation. A single Siemens 6DS1403-8CB​ can manage two temperature zones of a jacketed reactor—receiving 4-20 mA from RTD/thermocouple transmitters via Teleperm M analog input modules, executing PI algorithms in the 6DS subrack, and driving 4-20 mA outputs to control valves on heating/cooling media. The deterministic backplane communication ensures that temperature control loops—often with slow but integrating dynamics—remain stable even as the AP executes dozens of other tasks in the same scan cycle.Within metallurgical processing, the Siemens 6DS1403-8CB​ regulates annealing furnace temperature profiles, cooling-bed spray pressure, and quench tank flow control. Its -25°C to +60°C operating range accommodates the temperature swings typical of auxiliary buildings and outdoor skids in steel and aluminum plants. The dual-channel architecture lets a single Siemens 6DS1403-8CB​ handle both zone-temperature and combustion-air-pressure loops on a small furnace, reducing I/O rack slot consumption while maintaining loop independence.
