Parameter
| Main Parameters | Value/Description |
|---|---|

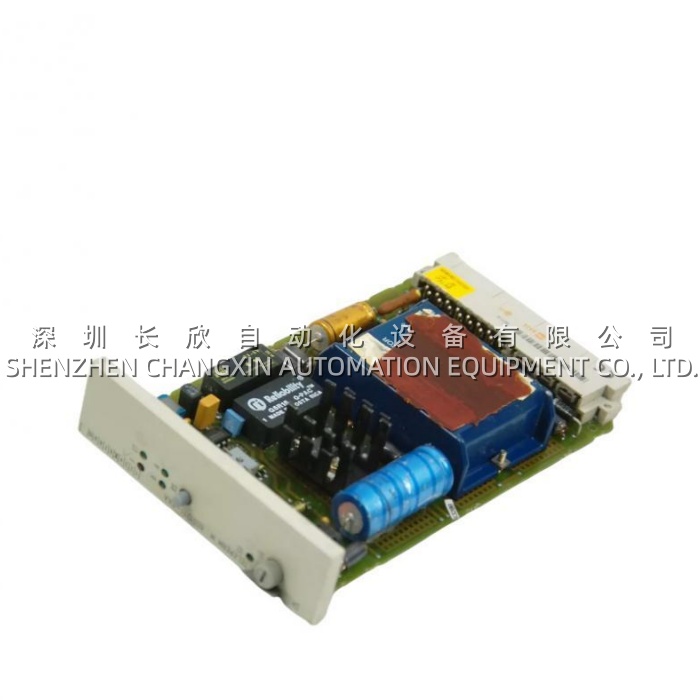

| Product Model | 6DS1211-8AA |
| Manufacturer | Siemens (Germany) |
| Product Category | Teleperm M Rack Power Supply Module |
| System Compatibility | Teleperm M / ME DCS racks (AS230, AS235, OM650 peripherals) |
| Input Voltage | 115 / 230 V AC selectable (design range 85–264 V AC) |
| Input Frequency | 50 / 60 Hz |
| DC Output | Multi-rail isolated (backplane bus +5 V / ±15 V / +24 V class, design-specific) |
| 24 V Rail Rating | 24 V DC / 5 A continuous (≈120 W total platform) |
| Efficiency | > 85 % |
| Protection Functions | Overcurrent, overvoltage, short-circuit, undervoltage, thermal |
| Cooling Method | Natural convection (no fan) |
| Mounting Method | Teleperm M standard rack slot / DIN-rail compatible carrier |
| Indicators | Run (green LED), Fault (red LED) — fault uploadable to DCS |
| Operating Temperature | 0 °C … +60 °C (non-condensing) |
| Storage Temperature | -25 °C … +70 °C |
| Protection Rating | IP20 (cabinet environment) |
| Approx. Weight | 1.0 kg |
| Hardware Version | 8AA (E-Stand 7, standard industrial, no conformal coating) |
| Lifecycle Status | Discontinued (legacy Teleperm M) |
Technical Principles and Innovative Values
Innovation Point 1: Multi-Rail Isolated Backplane Architecture. Unlike single-output industrial PSUs, the Siemens 6DS1211-8AA delivers multiple galvanically isolated DC rails to the Teleperm M rack backplane — typically +5 V for digital logic, ±15 V for analog I/O signal conditioning, and +24 V for auxiliary/contact loops. This separation prevents noisy 24 V field-side disturbances from contaminating the sensitive 5 V/±15 V domains via the backplane. The 6DS1211-8AA thus preserves signal integrity across mixed analog/digital Teleperm M card populations — a design philosophy that modern PSUs with a single 24 V output cannot replicate without external DC-DC isolation.Innovation Point 2: Wide-Range Input with Global Grid Tolerance. The 6DS1211-8AA accepts 85–264 V AC across its design envelope, selectable between 115 V AC (North America/Japan) and 230 V AC (Europe/Asia) via a rear voltage selector or auto-sensing. This makes the 6DS1211-8AA a “global spare” — a single SKU covers multinational plant fleets, and the wide tolerance absorbs grid sags during motor-start events or genset transitions. For plants running 1990s-era Teleperm M on aging site power, the 6DS1211-8AA‘s input resilience is often the difference between riding through a disturbance and a full DCS rack collapse.Innovation Point 3: Passive-Natural Cooling for 24/7 Reliability. The 6DS1211-8AA uses a metal-chassis conduction + convection design with no internal fan. This eliminates the #1 wear-item in industrial PSUs (ball-bearing fans seizing after 5–8 years in dusty/corrosive cabinets) and makes the 6DS1211-8AA genuinely “fit and forget” for decade-scale service. The trade-off — lower power density — is acceptable in Teleperm M racks where the PSU shares thermal load with other low-dissipation cards and the cabinet already has forced-air circulation.
Application Cases and Industry Value
A regional petrochemical complex operating a Teleperm M-based process control system across three cracking trains standardized the Siemens 6DS1211-8AA as the rack PSU for all twelve AS235 automation racks. After 22 years of service, two PSUs began showing end-of-life symptoms — the green “Run” LED intermittently dimming during summer afternoon peaks when cabinet ambient approached 55 °C. Rather than risk an in-service failure during a high-margin production window, the plant performed a proactive swap-out using spare 6DS1211-8AA modules during a 48-hour turnaround. Post-replacement thermography showed case temperatures 12 °C lower on the new units, and the DCS “PSU fault” alarm log went from 3–4 false positives per month to zero. The plant’s control systems manager calculated that the €2,400 investment in three spare 6DS1211-8AA units (one per cracking train + one pool) protected against a worst-case scenario of €1.2M in lost production plus regulatory reporting if a rack PSU had failed mid-run. The 6DS1211-8AA proved that in legacy DCS, the unglamorous PSU is as strategic as the processor.
Related Product Combination Solutions
To build or service a complete Teleperm M rack around the Siemens 6DS1211-8AA, the following Siemens components form the ecosystem:
- Siemens 6DS1xxx Series I/O & Bus Modules: The sibling Teleperm M rack cards (AI/AO/DI/DO, bus converters, communication processors) that draw power from the 6DS1211-8AA backplane — a typical AS235 rack populates 8–15 such modules alongside the PSU.
- Siemens AS230 / AS235 Automation Processors: The Teleperm M CPU racks that the 6DS1211-8AA powers — the AS235 is the most common late-generation Teleperm M processor, still running in hundreds of power and process plants globally.
- Siemens OM650 Operator Stations: The vintage UNIX-based operator interface that sits atop Teleperm M, indirectly dependent on the 6DS1211-8AA for rack health (PSU fault uploaded via backplane to OM650 alarm banner).
- Siemens 6DS1700 / 6DS1800 Series Signal Conditioning Modules: Analog-front-end companions in the same rack as the 6DS1211-8AA, benefiting from its ±15 V isolated rail for thermocouple/RTD signal conditioning.
- Siemens SITOP PSU100S 24 V DC: A modern DIN-rail PSU alternative if the 6DS1211-8AA rack slot is being bypassed during partial modernization — the SITOP can feed 24 V aux loads while the original PSU still handles 5 V/±15 V.
- Siemens PCS 7 AS 410: The modern migration target for Teleperm M AS235 racks — when the 6DS1211-8AA fleet eventually retires, the AS 410 + UR2 rack is the Siemens-approved upgrade path, though it requires full software re-engineering.
