Application Scenarios:
In a large petroleum refinery’s crude distillation unit, the precise control of temperatures, pressures, and flow rates across dozens of distillation columns and heat exchangers is paramount for efficiency, safety, and product quality. This unit is controlled by an ABB MOD 300 DCS, with multiple controller nodes, one of which is dedicated to the critical main fractionator. The central module in this controller node is the ABB SCDCS-CON-4. It continuously executes over 200 regulatory PID loops controlling heater fuel, pump speeds, and valve positions. During a sudden feed composition change, the SCDCS-CON-4‘s high-speed scan and powerful processing adjust all related control loops in a coordinated manner to maintain product specifications. When a safety sensor detects a high-high pressure, the module’s logic triggers an interlock sequence, overriding normal control to safely isolate equipment. The reliability and deterministic performance of the SCDCS-CON-4 ensure that milliseconds count in preventing a process deviation from escalating, safeguarding millions of dollars in equipment and ensuring uninterrupted production. A failure of this module would mean the loss of all automatic control for that section of the plant, forcing an immediate and costly shutdown.
Parameter:
| Main Parameters | Value/Description |
|---|---|

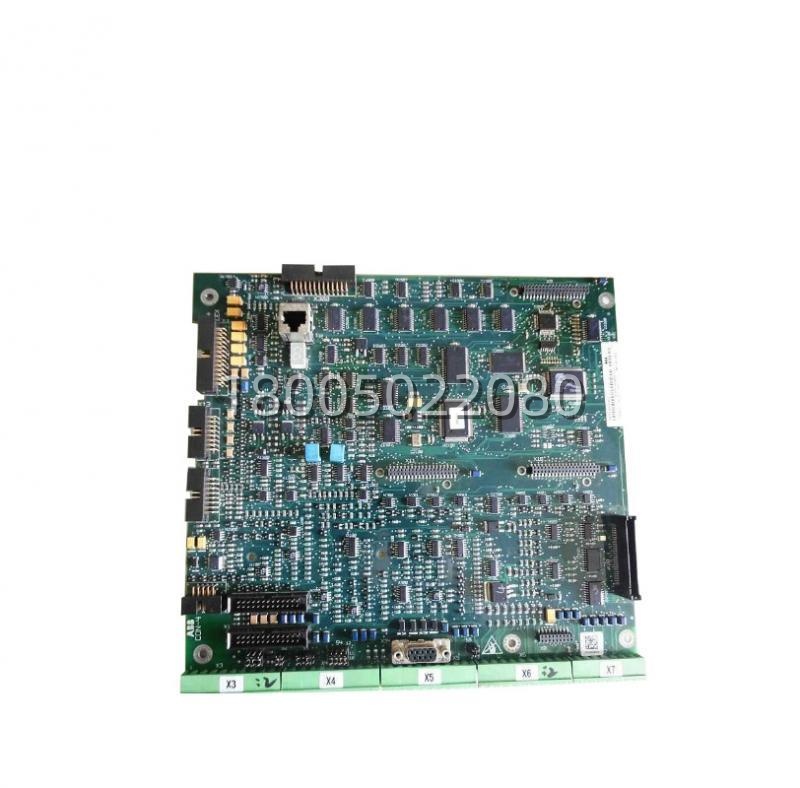

| Product Model | ABB SCDCS-CON-4 |
| Manufacturer | ABB |
| Product Category | DCS Controller Module / Central Processing Unit |
| Compatible System | ABB MOD 300, Advant Controller Series |
| Primary Function | Execution of process control logic, I/O management, and system communication. |
| Processing Core | High-performance microprocessor (period-specific, e.g., 32-bit). |
| Memory | Volatile RAM for runtime and non-volatile memory (ROM/Flash) for operating system and application. |
| Control Capacity | Capable of executing hundreds of PID loops and thousands of discrete I/O points. |
| Scan Time | Deterministic, fast scan time (e.g., 50-200 ms for a typical application) for real-time response. |
| Communication Ports | Integrated ports for connection to Operator Station (e.g., via CNI), peer controllers, and engineering tools. |
| I/O Bus Management | Manages and scans local and/or remote I/O clusters (e.g., S800 I/O via a bus interface). |
| Redundancy Support | Typically designed for 1:1 hot standby redundancy when paired with an identical module. |
| Real-Time Clock | Battery-backed for accurate time-stamping of events and alarms. |
| Status Indicators | Extensive LED display for power, run, fault, and communication status. |
| Form Factor | A large, complex printed circuit board that occupies the primary slot in a dedicated controller rack. |
- Note on Deterministic Scan: The guaranteed, consistent scan cycle is fundamental. It ensures that control actions happen at predictable intervals, which is critical for loop stability, unlike non-deterministic systems where latency can vary.
- Note on Redundancy: In high-availability applications, a second SCDCS-CON-4 runs in sync as a hot standby. If the primary fails, the backup assumes control within a single scan cycle, preventing any process disruption.
