Application Scenarios

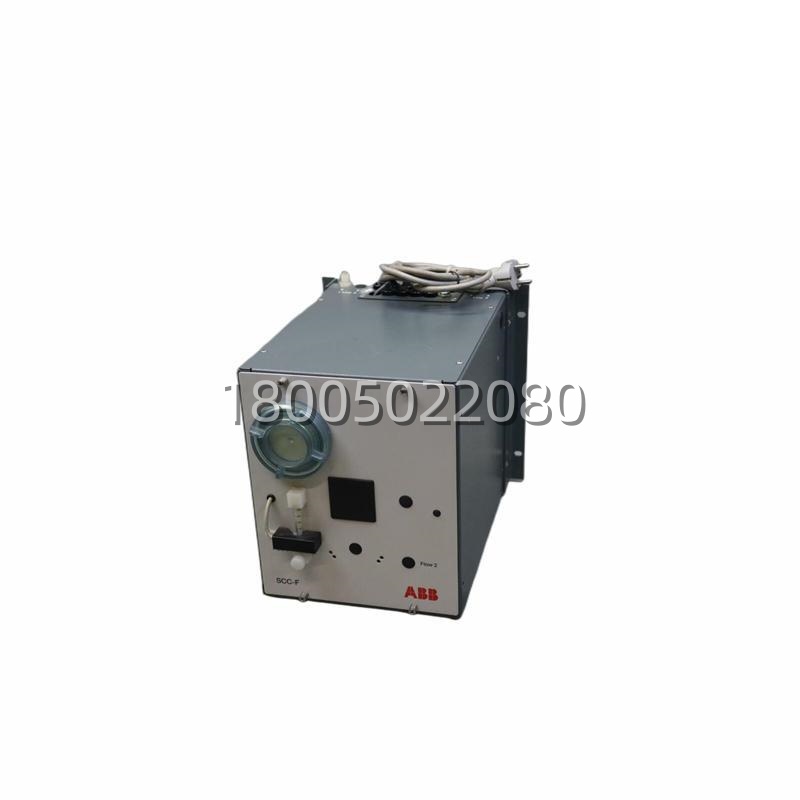

In a coal-fired power plant’s flue gas duct, the raw gas is at 150°C, saturated with water vapor, and laden with fly ash and acidic compounds. Directly feeding this stream to a zirconia oxygen analyzer or an NDIR gas analyzer for SO₂/NOx measurement would cause immediate instrument failure and yield useless data. The ABB SCC-F 23212-0-110310 Sample Gas Feed Unit​ is installed as the critical interface. A heated sample probe extracts gas from the duct. The sample is then routed to the SCC-F​ unit. Here, it first passes through a primary filter to remove particulates. A powerful Peltier cooler then chills the gas to 2-5°C, condensing out the water vapor (which is automatically drained). The cool, dry gas passes through a final fine filter and a precision pressure regulator before a mass flow controller delivers it at a constant, optimized flow rate to the analyzer cabinet. The SCC-F 23212-0-110310​ directly addresses the core pain points of analyzer protection, measurement accuracy, and system maintenance by ensuring the analyzer receives only a “laboratory-quality” sample, representative of the process but free of destructive components.





Parameter

Main Parameters	Value/Description
Product Model​	ABB SCC-F 23212-0-110310​
Manufacturer​	ABB (Asea Brown Boveri)
Product Category​	Sample Gas Conditioning System / Sample Feed Unit
Primary Function​	Integrated conditioning of hot, wet process gas for extractive analyzers.
Sample Flow Rate​	Adjustable, typically 0.5 – 2.5 L/min (e.g., via needle valve or mass flow controller). [Optimized for analyzer response]
Cooling Capacity​	Peltier (thermoelectric) cooler, capable of dew-point suppression to ~2-5°C. [Removes moisture to prevent condensation in analyzers]
Filtration Stages​	Multi-stage: Primary coarse filter (e.g., 2µm) and final fine filter (e.g., 0.1µm). [Protects analyzers and fine control components]
Sample Pressure Regulation​	Integrated regulator to provide stable, reduced pressure to the analyzer (e.g., 0.5 – 1.5 bar).
Condensate Removal​	Automatic condensate trap with pump or drain valve.
Construction Materials​	Wetted parts in corrosion-resistant materials (e.g., stainless steel 316, PTFE, PFA) for acidic/condensing gases.
Power Supply​	100-240V AC, 50/60 Hz.
Operating Ambient Temp.​	Typically +5°C to +45°C (for the conditioning unit enclosure).
Input Sample Conditions​	Designed for hot, wet gas (e.g., up to 180°C, saturated). Specific max. particulate load defined.
Output Sample Conditions​	Cool, dry, particle-free gas at stable pressure and flow.
Enclosure Rating​	Typically IP54 / NEMA 3R for outdoor or shelter installation.
Typical Analyzer Pairing​	ABB Advance Optima, 2000 series, or other NDIR/Paramagnetic/Zirconia analyzers.





Technical Principles and Innovative Values

The ABB SCC-F 23212-0-110310​ is engineered as a cohesive system where each component’s performance is optimized in relation to the others, applying core principles of sample conditioning to solve the “last meter” problem in analytical measurement.

Innovation Point 1: Co-Engineered Cooling and Filtration for Maximum Moisture Removal.​ The unit’s design synchronizes the Peltier cooler’s operation with the filtration stages. The gas is cooled afterinitial coarse filtration, preventing wet particulates from forming a mud-like paste on the cooler block. The chilled gas then passes through a hydrophobic coalescing filter that captures the newly formed fine water aerosols. This sequenced approach—filter, then cool, then filter again—is far more effective at delivering a truly dry gas than cooling alone. The condensate removal system uses a sensor-less, pneumatic pumping principle based on level detection, ensuring reliable drainage without complex floats that can foul.
