Application Scenarios:During a planned full-plant power shutdown at a refinery for maintenance, several process units controlled by AC 800M controllers failed to restart automatically when power was restored. Diagnosis revealed that the memory backup batteries in key controllers had depleted beyond their minimum voltage threshold unnoticed. This caused a complete loss of the control program and tuning parameters, requiring a full download from backup archives—a process that delayed the plant restart by over 12 hours. Proactively replacing aging batteries with the genuine ABB SB522V1 (3BSC760015R1) battery packs in all critical controllers during a subsequent turnaround eliminated this risk, ensuring a smooth, rapid restart and securing the multi-million dollar production schedule
.Parameter:
| Main Parameters | Value/Description |
|---|---|

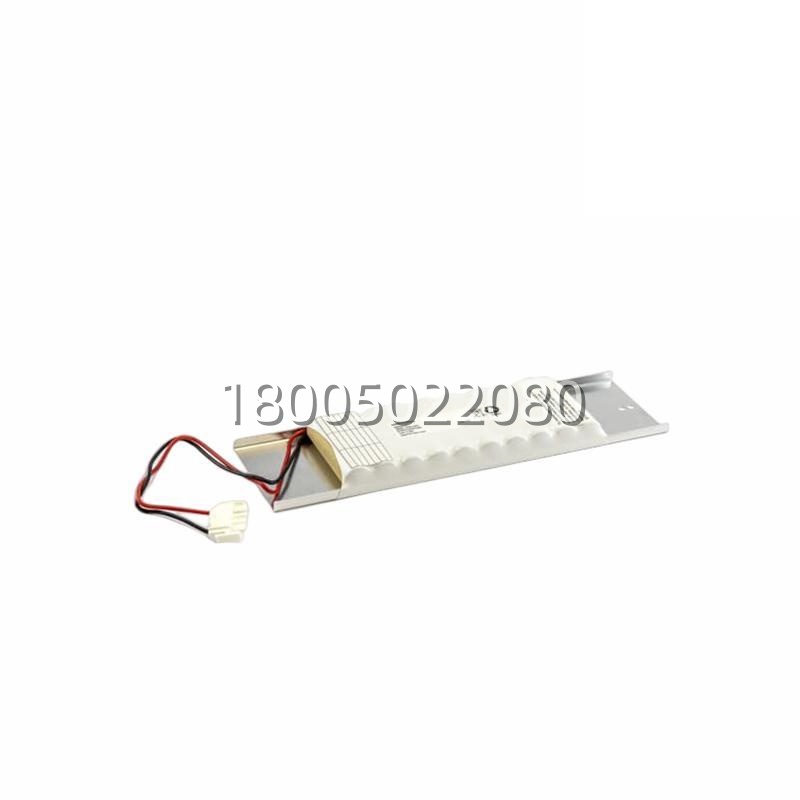

| Product Model | ABB SB522V1 (3BSC760015R1) |
| Manufacturer | ABB (Industrial Automation) |
| Product Category | Memory Backup Battery Pack |
| Compatible Systems | AC 800M Controllers (PM, CExxx processors), S800 I/O stations, other ABB DCS/PLC components. |
| Battery Chemistry | Lithium Thionyl Chloride (Li-SOCl2) – chosen for long shelf life, high energy density, and stable voltage. |
| Nominal Voltage | 3.6 V DC |
| Nominal Capacity | Typically 1.2 Ah to 2.4 Ah (e.g., 1.9Ah common). Designed to provide backup for years under normal conditions. |
| Primary Function | Power volatile RAM and real-time clock when main 24V system power is removed. |
| Operating Temperature | Wide range suitable for industrial control cabinets (e.g., -20°C to +70°C). |
| Connector Type | Standard 2-pin connector (e.g., JST, Molex) for plug-in installation on the controller motherboard or I/O baseplate. |
| Expected Service Life | 5+ years under typical operating conditions, depending on ambient temperature and power cycle frequency. |
| Key Feature | Very low self-discharge rate, maintaining charge for long periods. |
- Innovation Point 1: Lithium Thionyl Chloride Chemistry for Longevity & Stability. Unlike standard alkaline or NiMH batteries, the ABB SB522V1 uses Lithium Thionyl Chloride (Li-SOCl2) chemistry. This provides an exceptionally flat discharge curve, meaning the voltage remains near 3.6V for most of its life before a sharp drop at end-of-life. This stable voltage is critical for reliable memory retention. It also has an extremely low self-discharge rate (less than 1% per year), allowing it to maintain its rated capacity for 5-10 years on the shelf or in service, far outperforming common battery types.
- Innovation Point 2: Integrated Monitoring & Predictive Diagnostics (System-Level). While the battery itself is a passive component, the ABB control hardware it plugs into (like the AC 800M controller) is designed with intelligent battery monitoring circuits. These systems can measure the battery voltage, estimate its health, and provide early warnings (“Battery Low” alarms) through the engineering software or HMI monthsbefore actual failure. This predictive capability allows for planned, preventative replacement during a scheduled shutdown, transforming a potential catastrophic failure into a managed maintenance task.
- Innovation Point 3: Safety-Integrated Design for Industrial Environments. The battery pack is housed in a robust, sealed casing with safety vents. It is designed to operate safely within the elevated temperatures found in industrial control cabinets. Its construction and chemistry minimize the risk of leakage, which is a common failure mode for cheaper batteries that can cause catastrophic corrosion damage to expensive controller motherboards. Using the genuine 3BSC760015R1 ensures this safety and compatibility.
