Application Scenarios
A large automotive stamping plant operated multiple press lines controlled by SLC 5/05 processors. The existing standard input modules frequently experienced channel failures when a single field device shorted, causing the entire module to fault and taking multiple press interlocks offline simultaneously. Maintenance engineers replaced the standard modules with 1746sc-IA8I isolated input modules. During the next six months, two separate field wiring faults occurred on different channels. In both cases, only the affected input dropped out while the remaining seven channels continued operating normally, allowing the press to continue running at reduced function rather than stopping entirely. The plant reported a measurable reduction in unplanned downtime and subsequently standardized on 1746sc-IA8I modules for all high-risk interlock circuits across the facility.
Parameter

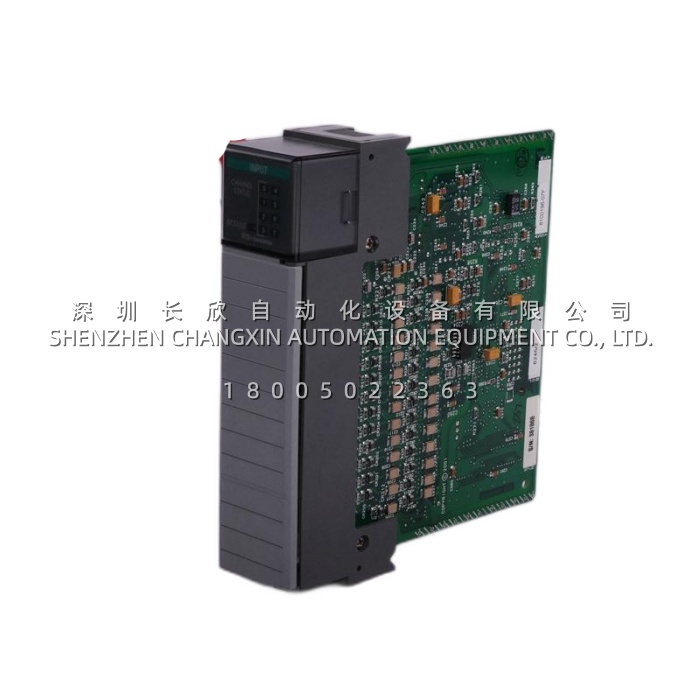

| Main Parameters | Value/Description |
|---|---|
| Product Model | 1746sc-IA8I |
| Manufacturer | Spectrum Controls (Allen-Bradley compatible) |
| Product Category | Isolated AC/DC Discrete Input Module |
| Product Line | SLC 500 |
| Input Channels | 8, individually isolated |
| Points per Common | 1 (fully isolated) |
| Voltage Category | 100/120V AC/DC |
| Operating Voltage Range | 80–150V AC (47–63 Hz); 85–170V DC |
| Nominal Input Current | 16 mA @ 120V AC; 2.5 mA @ 120V DC |
| Input Inrush Current | 0.7 A @ 120V AC (maximum) |
| Off-State Current | 4 mA @ 20V AC (maximum) |
| Isolation Voltage | 1500V AC point-to-point; 1500V AC field-to-backplane |
| Power Dissipation | 4W maximum |
| Backplane Current | 35 mA @ 5V DC; 85 mA @ 24V DC |
| Operating Temperature | 0°C to +60°C |
| Terminal Block | 1746-RT25R (red, removable) required separately |
| Dimensions | 3.2 cm × 14.6 cm × 13.3 cm |
| Weight | 0.2 kg (0.46 lb) |
| Certifications | UL/C-UL (Class I, Div 2, Groups ABCD); CE |
Technical Principles and Innovative Values
- Innovation Point 1: True Point-to-Point Isolation Eliminates Cross-Channel Fault Propagation. Unlike standard SLC input modules that share a common return path, the 1746sc-IA8I isolates each of its eight input circuits from one another and from the backplane logic. A short, overload, or noise event on one channel cannot affect the remaining seven inputs, preserving system functionality during field faults .
- Innovation Point 2: Mixed Power Source Compatibility Without Interposing Relays. The 1746sc-IA8I allows connection of input devices powered from different sources or phases on the same module. Because each channel is electrically independent, voltage differences between points do not damage components, and interposing relays or isolation transformers are not required — saving panel space and reducing wiring complexity .
- Innovation Point 3: Direct Monitoring of High-Voltage Control Circuits. The 1746sc-IA8I can be connected directly to relay or motor starter outputs, enabling the SLC processor to monitor high-voltage control circuits without additional signal conditioning. This eliminates unnecessary relays and transformers while simplifying troubleshooting and maintenance procedures .
