Product Overview

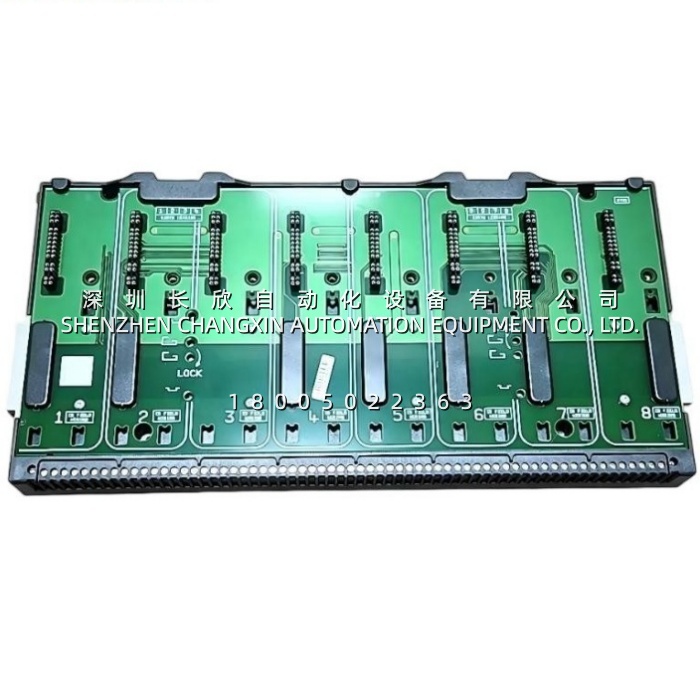

The Emerson VE4060C1 is an 8-wide CHARM I/O Carrier serving as the central mechanical and electrical backbone of the DeltaV Electronic Marshalling architecture, developed by Emerson Process Management for distributed control systems that demand channel-level flexibility and fault tolerance. Rather than containing signal-termination points itself, the VE4060C1 hosts a redundant pair of CHARM I/O Cards (CIOC) and interconnects them with up to eight CHARM Baseplates mounted below on the same vertical DIN rail, each of which carries twelve individually characterized CHARM modules — giving the carrier a theoretical maximum of 96 independently configurable field-signal channels per node.
Through its integrated backplane, the Emerson VE4060C1 distributes redundant 24 V DC field power, 6.3 V DC CHARM power, and the redundant RS-485 communication bus that links every baseplate to the CIOC pair, while the redundant Ethernet I/O modules (IOPs) on the carrier connect the node to as many as four DeltaV controllers — SX, SD Plus, MD Plus, MQ, MX, or PK — over 10/100BASE-TX copper or 100BASE-FX fiber media. The “C1” suffix distinguishes this carrier from the VE4060C0 variant by the inclusion of a carrier extension cable, providing layout flexibility in cabinets where DIN-rail real estate or maintenance access is constrained.
As part of the wider CHARMs ecosystem, the Emerson VE4060C1 enables the core Electronic Marshalling value proposition: field wiring can be landed in any order on the baseplates without regard to signal type, because the signal characterization is defined later by simply inserting the appropriate CHARM — analog input, analog output, discrete input, discrete output, RTD, thermocouple, or power — which the DeltaV configuration database auto-senses and assigns to any of the four supported controllers with a single drag-and-drop action. Rated for Class I Division 2 / Zone 2 hazardous locations, conformal coated to ISA-S71.04 G3 harsh-environment standards, and operating across a −40 °C to +70 °C envelope, the VE4060C1 is equally at home in central marshalling cabinets and field-mounted junction boxes across refining, petrochemical, power generation, LNG, mining, and offshore production facilities worldwide.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | VE4060C1 |
| Manufacturer | Emerson (DeltaV Distributed Control System) |
| Product Type | 8-Wide CHARM I/O Carrier (Backplane Assembly) |
| Product Family | DeltaV Electronic Marshalling / CHARMs |
| Baseplate Ports | 8 per carrier |
| CHARMs per Baseplate | 12 |
| Maximum Channel Capacity | 96 channels (8 × 12) |
| CIOC Capacity | 2 (redundant primary/standby pair) |
| Input Power (Redundant) | +24 V DC ±10% at 12 A maximum |
| CIOC Power Consumption | 0.28 A per redundant CIOC node; 0.32 A per redundant CIOC2 node |
| Ethernet Communication | Redundant 10/100BASE-TX (RJ45, 100 m) or 100BASE-FX fiber (MTRJ, 2 km multimode) |
| I/O Update Rates | 50 ms, 100 ms, 250 ms, 500 ms |
| Controllers per CIOC | 4 (up to 8 for PK controller in v15.FP3 and later) |
| CIOCs per Controller | 16 (up to 32 for PK controller) |
| CIOCs per System | 300 |
| Addressing | One Address Plug per baseplate (1 through 8) |
| Mounting | DIN rail latch to vertical T-type rail |
| Operating Temperature | −40 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 (harsh), conformal coated |
| Shock / Vibration | 10 g half-sine 11 ms; 1 mm p-p (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Dimensions (L × W × H) | Approx. 336 × 31 × 165 mm |
| Weight | Approx. 0.56 kg |
| Included Accessory | Carrier extension cable (distinguishes VE4060C1 from VE4060C0) |
| Hazardous-Area Certification | Class I, Division 2 / Zone 2, Groups A–D |
| Security Certification | Achilles Communications Certification Level 1 (CIOC); Level 2 (CIOC2) |
