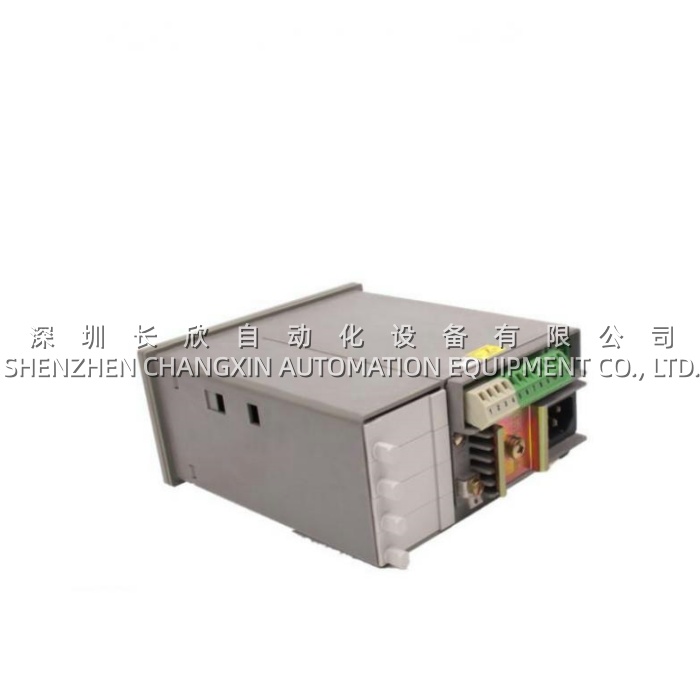

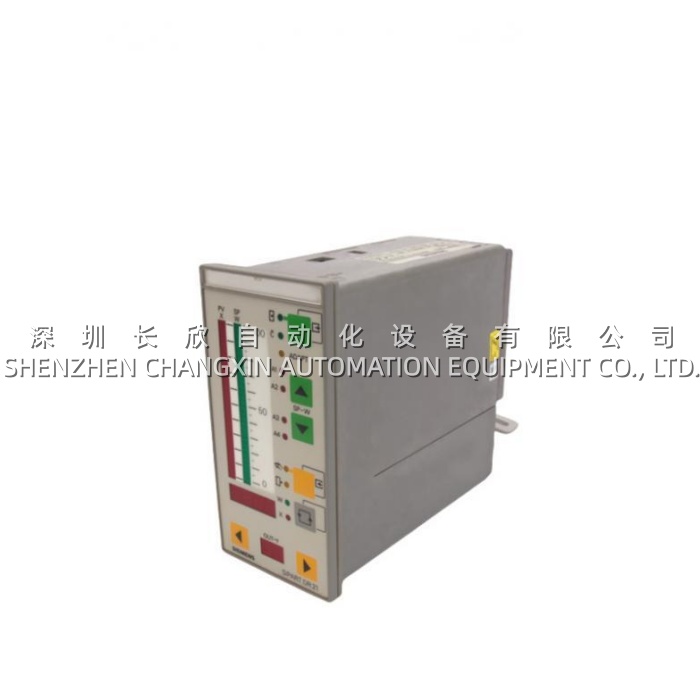

Siemens 6DR2104-4 SIPART DR21 Process Controller — 24V Basic Unit with Continuous Output

Application Scenarios

In a batch specialty chemicals plant, a 10 m³ glass-lined reactor suffered chronic temperature overshoot during the exothermic phase because the inherited analog PID controller couldn’t cope with the ~8-minute dead time and strong process gain shift between heating and cooling modes. By replacing the legacy controller with a Siemens 6DR2104-4 SIPART DR21, the panel engineer leveraged the DR21’s built-in adaptation routine — triggered once during a supervised batch — to auto-identify the process characteristics and compute optimal PID parameters without requiring deep control theory knowledge. The 6DR2104-4 then ran the loop as a continuous K-controller (0–20 mA to the control valve) with the S-relay driving the cooling water solenoid as a two-position overlay. The plant reported that the 6DR2104-4 reduced batch-to-batch temperature deviation from ±4.2 °C to ±0.8 °C and eliminated three “off-spec” batches per month, each costing ~€3,500 in reprocessing. This scenario shows how the 6DR2104-4 solves the classic pain point of “hard-to-tune slow loops with dead time” — delivering laboratory-grade stability on a shop-floor panel device.

Parameter

Main Parameters	Value/Description
Product Model	6DR2104-4
Manufacturer	Siemens
Product Category	Digital Process Controller (Single-Loop)
Product Family	SIPART DR21
Panel Format	72 × 144 mm DIN (front panel IP64)
Supply Voltage	24 V AC/DC (UC 24V)
Analog Inputs	2 × 0/4–20 mA (non-isolated, expandable via signal converters)
Digital I/O	2 × DI, 2 × DO (relay-based S-output built-in)
Continuous Output	0/4–20 mA “K-output” (manipulated variable y)
S-Output (Relay)	2 built-in relays, AC 250 V, interlocked (can release for universal DO)
Expansion	Up to 4 signal converter slots at rear (UNI, U/I, R modules)
Control Functions	Fixed value, 3-component, ratio, follow-up/sync, SPC/DDC, disturbance feedforward
Adaptation	Auto-tuning for compensated, aperiodic systems (handles large dead times)
Operating Temp.	0 … +50 °C (climatic class 3K3 per IEC 721)
Weight	≈ 1.2 kg (basic unit)

Technical Principles and Innovative Values

Innovation Point 1: “One-Button” Process Adaptation for Dead-Time Loops. The Siemens 6DR2104-4 embeds Siemens’ classic adaptation algorithm, invoked by a single front-panel trigger. The DR21 injects a test signal, observes the step response, and computes tuned PID parameters — no oscilloscope, no Ziegler-Nichols trial, no process knowledge required. The 6DR2104-4 explicitly handles systems with compensation and aperiodic transient behavior, even tolerating substantial dead times — the exact profile of reactors, kilns, and large-volume tank temperature loops. For plants running 20-year-old loops on guesswork PIDs, the 6DR2104-4 is a retrofit that pays back in weeks.Innovation Point 2: Dual K-Output + S-Output Architecture in One 72-mm Width. Most single-loop controllers commit to either continuous (4–20 mA) or stepping/two-position (relay). The 6DR2104-4 delivers both: the K-output drives modulating control valves or VFD speed refs via 0/4–20 mA, while the S-output’s two built-in relays (interlocked by default, releasable for universal DO) handle motorized setpoint drives, heating/cooling on–off staging, or alarm contactors. This duality lets the 6DR2104-4 act simultaneously as a continuous PID and a sequencer — e.g., a boiler where K trims fuel flow and S toggles the pilot burner — without an external interposing relay.Innovation Point 3: Rear Expansion Slot Ecosystem. The Siemens 6DR2104-4 ships as a “generously equipped” base unit, but its real versatility comes from up to four plug-in signal converter slots on the rear. The UNI-module adds TC/RTD/resistance/mV with isolation (common-mode 50 V); the U/I-module adds 0/4–20 mA or 0/2–10 V with electronic isolation; the R-module adds resistance-potentiometer pickup. These let the 6DR2104-4 accept virtually any field sensor directly — thermocouple on a reactor, 4–20 mA from a Coriolis flowmeter, pot feedback from a damper — without external transmitters, cutting panel parts count and calibration points.

Application Cases and Industry Value

A regional district-heating boiler house operating three 15 MW hot-water boilers standardized the Siemens 6DR2104-4 as the combustion-loop controller across all three units. Each boiler required a three-component control structure — fuel gas, combustion air, and flue O₂ trim — historically managed by a tangle of analog PI stations and relay logic. By consolidating onto the 6DR2104-4, the plant configured fixed-value control on the header pressure loop with disturbance-variable feedforward from outdoor temperature, and used the S-relay as a high–low fire staging contactor. After commissioning, the plant engineer reported that the 6DR2104-4‘s auto-tuning produced a fuel/air ratio that stayed within ±2% across the 3:1 turndown range, reducing natural gas consumption by ~6.4% annually (~€18k savings per boiler). Moreover, the front-panel analog bar graphs for PV (x) and SP (w) gave the on-call operator instant visual diagnosis without opening the cabinet or logging into a SCADA — a human-factor advantage the plant hadn’t budgeted for but now won’t give up. The 6DR2104-4 proved that in utility-scale thermal control, a €300 panel controller can outperform a €3k PLC slice when the loop math is purpose-built.
