Application Scenarios

At a large steel hot rolling mill, the main drive control system relied on SIMADYN D processors to regulate the massive DC motors powering the roughing stands. Field signals from roll force sensors and speed encoders required precise analog conversion before reaching the digital controller. When the legacy analog interface modules began showing signal drift—causing inconsistent rolling force readings and scrap production—the maintenance team identified the SIEMENS 6DD1681-0AH2 as the direct replacement. After installation, the ±10 V signal processing restored accuracy to within ±0.5% of full scale, eliminating the measurement errors. The plant’s electrical superintendent reported: “We recovered consistent force feedback and eliminated product rejections caused by sensor drift. The replacement was a straightforward swap during a planned outage.” This case highlights a critical pain point: in legacy SIMADYN D systems, failing analog interface modules compromise measurement accuracy. The SIEMENS 6DD1681-0AH2 directly addresses this with its precision signal conversion and high-impedance input design.

For engineers maintaining SIMADYN D-based systems in metal processing, mining, or paper manufacturing, the SIEMENS 6DD1681-0AH2 is the essential component for integrating analog field signals. Its compatibility with the SA10 architecture ensures seamless integration with processor modules such as the PM6, while the 8 output channels (with relay outputs) provide flexible actuation capability. The module’s wide operating temperature range of -25°C to +60°C makes it suitable for demanding environments typical of heavy industry.



Parameter

Main Parameters	Value/Description

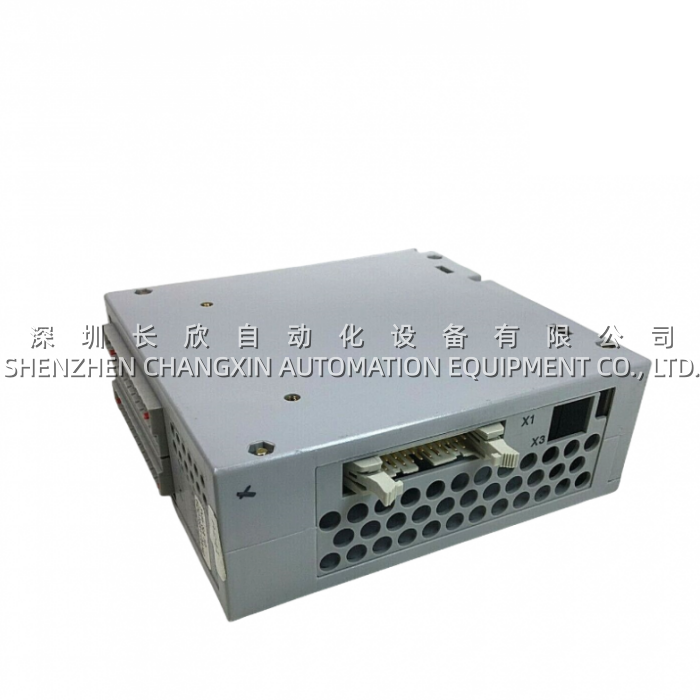

Product Model	SIEMENS 6DD1681-0AH2 (SA10 Interface Module)
Manufacturer	Siemens
Product Category	Analog Interface Module (SIMADYN D Series)
Signal Range	±10 V – standard industrial analog signal processing
Analog Inputs/Outputs	8 configurable channels
Input Impedance	10 MΩ – minimizes signal interference
Accuracy	±0.5% of full scale – ensures reliable measurement
Output Type	Relay outputs (DC/AC compatible)
Maximum Voltage (Output)	120 V – flexible actuation capability
Communication Protocols	PROFIBUS DP/V2, MPI, PROFINET – flexible connectivity
Power Supply	12 V DC (3W typical) or 24 V DC
Operating Temperature	-25°C to +60°C – industrial environmental tolerance
Storage Temperature	-40°C to +85°C – extended rating
Protection Class	IP20 – cabinet mount suitable
Dimensions (W x H x D)	Approx. 4.5 x 15.9 x 12.9 cm
Weight	Approx. 0.26 – 0.55 kg
Product Status	End of product lifecycle since October 2017



Technical Principles and Innovative Values

Innovation Point 1: High-Impedance Input Design for Signal Integrity

The SIEMENS 6DD1681-0AH2 features a 10 MΩ input impedance—significantly higher than standard industrial analog modules. This design minimizes the loading effect on field sensors, ensuring that the signal from the sensor is not degraded by the module’s input circuitry. In practical terms, this means longer cable runs and weaker sensor signals can be reliably processed without loss of accuracy—a critical advantage in large industrial facilities where sensors may be hundreds of meters from the control cabinet.

Innovation Point 2: Precision ±0.5% Full-Scale Accuracy

With an accuracy specification of ±0.5% of full scale, the SIEMENS 6DD1681-0AH2 delivers reliable analog signal conversion. For a ±10 V signal, this translates to a maximum error of ±50 mV, ensuring that the digital controller receives faithful representations of field measurements. This precision is essential in drive control applications where small variations in speed or torque feedback can cause significant process quality issues.

Innovation Point 3: Flexible I/O Configuration and Relay Outputs

The module provides 8 configurable channels with relay outputs (up to 120V capability). This flexibility allows the SIEMENS 6DD1681-0AH2 to adapt to diverse application requirements—from simple alarm signaling to direct control of contactors and solenoids. The relay output design provides electrical isolation between the control system and field devices, enhancing system safety and reducing the risk of feedback damage.

Innovation Point 4: Multi-Protocol Communication Capability

The SIEMENS 6DD1681-0AH2 supports PROFIBUS DP/V2, MPI, and PROFINET communication. This multi-protocol support ensures seamless integration into both legacy SIMADYN D networks (using MPI/PROFIBUS) and modern TIA Portal environments (via PROFINET). For engineers managing system modernization projects, this compatibility is crucial—the SIEMENS 6DD1681-0AH2 can bridge older analog field devices to newer digital control architectures.

Innovation Point 5: Robust EMI Protection and Industrial-Grade Construction

The module is designed to withstand electromagnetic interference common in heavy industrial environments, featuring built-in shielding and EMI suppression capabilities. This design ensures stable data transmission even when installed in cabinets adjacent to high-power drives and variable frequency converters—where radiated and conducted emissions can disrupt standard communication modules.
