Application Scenarios

Consider a steel rolling mill where the main drive motors must maintain precise torque and speed synchronization to ensure uniform strip thickness. The standard PLC struggles to execute complex vector control algorithms within the required 0.5ms cycle time. The Siemens 6DD1600-0AH0 is purpose-built for this challenge. Installed in the SIMADYN D rack, the 6DD1600-0AH0 processes feedback from encoders and current sensors, calculates torque setpoints, and communicates updated commands to the power converters—all within a deterministic 0.1ms cycle . The result is a smooth, stable rolling process that minimizes rejects and maximizes throughput. The module’s ability to support up to two ITxx expansion modules (for additional I/O, encoder interfaces, or SIMOLINK fiber-optic communication) makes it a flexible cornerstone for high-end drive systems .

The 6DD1600-0AH0 is also an essential solution for maintaining legacy SIMADYN D systems. Declared End-of-Life by Siemens since October 1, 2015, the Siemens 6DD1600-0AH0 is no longer available as a new part and is only sold as a spare for existing installations . For plant operators still relying on SIMADYN D-based drive systems, securing a reliable, tested 6DD1600-0AH0 is critical to sustaining operations and avoiding a costly, disruptive full-system upgrade.



Parameters

Main Parameters	Value/Description

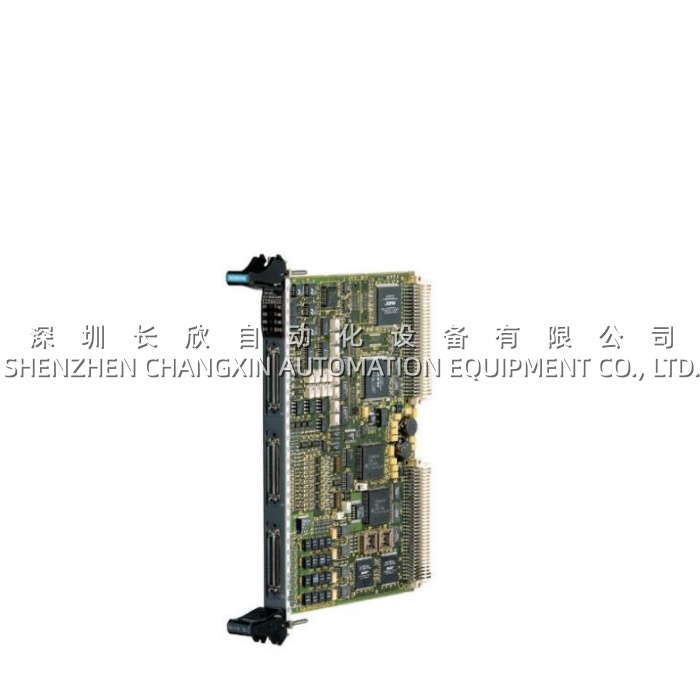

Product Model	6DD1600-0AH0
Manufacturer	Siemens
Product Category	SIMADYN D PM4 Processor Module
Processor Type	32-bit RISC CPU, 32 MHz
Cycle Time (Min)	0.1 ms (typical for closed-loop control)
Program Memory	4 MB DRAM / Flash
Data Memory	64 kB SRAM (battery-backed, for diagnostics/saved values)
On-Board I/O	8 binary inputs (4 interrupt-capable)
Communication Interfaces	L-Bus, C-Bus (internal bus system); RS-232 V.24 (PG interface)
Power Supply	24 V DC ±10%
Power Consumption	Typ. 2.5 W
Operating Temperature	-25 °C to +60 °C
Dimensions	Approx. 172 x 144 x 78 mm
Weight	Approx. 0.44 – 0.67 kg
Certifications	CE, UL, cULus
Product Status	End of Life (EoL) since October 1, 2015

Note: The Siemens 6DD1600-0AH0 is a legacy module. All technical specifications are provided for reference. Physical mounting requires the use of provided metal distance pieces for proper EMC contact and noise immunity .



Technical Principles and Innovative Values

Innovation Point 1: 32-bit RISC Architecture for Deterministic Closed-Loop Control

The Siemens 6DD1600-0AH0 leverages a 32-bit RISC CPU operating at 32 MHz, optimized for the intensive arithmetic required by closed-loop control algorithms . Unlike general-purpose PLCs that prioritize logic and bit processing, the 6DD1600-0AH0 is designed for high-dynamic applications requiring microsecond-level response. Its ability to achieve a minimum cycle time of 0.1ms ensures that torque, speed, and position control loops execute with deterministic precision—a critical factor for applications where even a few milliseconds of jitter can cause product defects or equipment damage .

Innovation Point 2: High-Speed L-Bus and C-Bus Architecture for Multi-Processor Coordination

The Siemens 6DD1600-0AH0 integrates two distinct internal bus systems: the L-Bus (local bus) for high-speed cyclical data exchange with I/O modules, and the C-Bus (communication bus) for coordinating data exchange between multiple processors within the same subrack or across a daisy-chain of subracks . This separation of duties ensures that time-critical control loops run uninterrupted while complex inter-processor communication occurs in parallel—a key advantage for large-scale systems requiring coordinated control across multiple drives.

Innovation Point 3: On-Board Binary Inputs with Interrupt Capability

The Siemens 6DD1600-0AH0 features 8 on-board binary inputs, four of which are interrupt-capable . This allows the module to respond to external events (such as limit switch triggers or emergency stop signals) with minimal latency, bypassing the normal scan cycle. This capability is crucial for safety-critical applications and for capturing rapid process events that require immediate processor intervention.

Innovation Point 4: Extensive Expansion via ITxx Modules

The Siemens 6DD1600-0AH0 supports up to two ITxx expansion modules, which plug directly onto the processor board . This modular approach allows for customized configuration—adding encoder interfaces, additional I/O, or a SIMOLINK fiber-optic interface for high-speed, synchronous communication between drives. The first expansion module must be secured with metal distance pieces provided with the PM4 to establish the necessary electrical contact for identification, while subsequent modules use plastic distance pieces . This mechanical design ensures reliable, noise-immune operation.
