Application Scenarios

In a hot-strip steel mill in the German Ruhr region, the original SIMADYN D control cabinets had operated continuously for over 20 years, with the Siemens 6DD1682-0BC3​ subracks serving as the home for PM5 CPU modules, EXM I/O extensions, and IT41 incremental encoder interfaces across six rolling stands. When the integrated fans in two SR12.3 subracks began showing bearing wear and airflow degradation, the maintenance team faced rising module temperatures and intermittent communication faults on the C-bus. By replacing the aging units with factory-tested 6DD1682-0BC3​ subracks, the plant restored full forced-air cooling and eliminated the thermal-induced faults. The lead drive engineer reported that the 6DD1682-0BC3​ not only resolved the overheating pain point but also provided fresh L-bus and C-bus backplane connectors, restoring signal integrity across all 12 slots. This case illustrates how the 6DD1682-0BC3​ functions as a silent but mission-critical enabler — when the subrack is solid and the fan is healthy, the entire SIMADYN D system inherits that reliability, ensuring uninterrupted production in 24/7 heavy industrial environments.

Parameter

Main Parameters	Value/Description

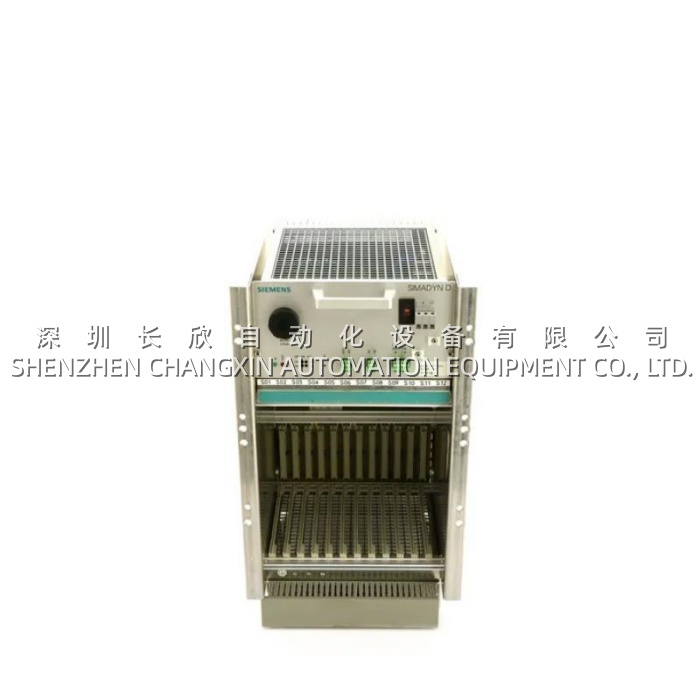

Product Model​	6DD1682-0BC3​
Manufacturer​	Siemens
Product Category​	SIMADYN D Subrack (SR12.3) with Integrated Fan
System Compatibility​	SIMADYN D
Subrack Type​	SR12.3 (12-slot, AC-powered, with fan)
Number of Slots​	12 slots
Supply Voltage​	115 / 230 V AC
Cooling Method​	Integrated AC fan (forced-air convection)
Bus Types​	L-Bus and C-Bus
Compatible Modules​	PM5/PM6 CPU, MS5 Memory Card, EXM I/O, IT41, etc.
Protection Rating​	IP20 (cabinet environment)
Mounting Method​	19-inch cabinet / rack mounting
Operating Temperature​	0 °C … +55 °C (with fan-assisted cooling)
Product Lifecycle​	PM500 — Discontinued since October 1, 2017
Replacement Status​	Deleted without direct replacement



Technical Principles and Innovative Values

Innovation Point 1: Integrated Forced-Air Cooling Design.​ Unlike natural-convection subracks (such as the SR12.4 variant 6DD1682-0BC4), the Siemens 6DD1682-0BC3​ incorporates an AC-driven centrifugal fan directly into the 12-slot chassis. This design forces directional airflow across all module front panels, extracting heat from high-power CPU modules and I/O cards. The 6DD1682-0BC3​ thus sustains reliable operation even when fully populated with power-hungry PM5/PM6 processors and EXM I/O extensions — a necessity for high-density drive control cabinets in steel, paper, and marine propulsion applications.Innovation Point 2: Dual-Voltage AC Input for Global Deployment.​ The 6DD1682-0BC3​ accepts 115 V AC for North American installations or 230 V AC for European and Asian deployments without transformer modifications. This auto-adaptive mains input allows the 6DD1682-0BC3​ to be deployed worldwide with a simple wiring change, simplifying global spare parts logistics for multinational manufacturers running SIMADYN D systems across multiple sites.Innovation Point 3: L-Bus and C-Bus Backplane Integrity.​ The Siemens 6DD1682-0BC3​ provides 12 physical slots, each with full L-bus (for parameter and data exchange) and C-bus (for high-speed communication) connectivity. This dual-bus architecture enables the 6DD1682-0BC3​ to host a mix of CPU modules, memory cards, communication processors, and I/O extensions simultaneously — all communicating with deterministic timing. The mechanical precision of the backplane connectors in the 6DD1682-0BC3​ ensures signal integrity even after decades of thermal cycling, which is why refurbished units with fresh backplanes deliver like-new performance.



Application Cases and Industry Value

A commercial printing press manufacturer standardized the Siemens 6DD1682-0BC3​ across its fleet of web offset presses, where SIMADYN D controls synchronize up to 40 servo axes for color registration, tension control, and folder synchronization. Each press control cabinet housed two 6DD1682-0BC3​ subracks — one for the master PM5 CPU cluster and one for distributed I/O and drive interfaces. After 18 years of continuous operation, the original fans began showing end-of-life symptoms, with airflow dropping by 40% and module temperatures climbing. By proactively replacing all 6DD1682-0BC3​ subracks during a planned maintenance window, the OEM prevented an anticipated wave of C-bus communication failures that would have caused unplanned press downtime at a cost exceeding €50,000 per hour. The service director confirmed that the 6DD1682-0BC3​ subrack replacement program extended the operational life of the SIMADYN D infrastructure by at least 10 years, deferring a multimillion-euro press control modernization project and protecting the customer’s capital investment.



Related Product Combination Solutions

To build or service a complete SIMADYN D system around the Siemens 6DD1682-0BC3, the following components form a proven ecosystem:

• Siemens 6DD1600-0AJ0 (PM5 CPU Module): The primary processor module that seats into the 6DD1682-0BC3, executing drive control and motion algorithms with the 64-bit RISC architecture.
• Siemens 6DD1600-0AK0 (PM6 CPU Module): The enhanced CPU variant compatible with the 6DD1682-0BC3, delivering higher computational performance for multi-axis synchronization applications.
• Siemens 6DD1682-0BC4 (SR12.4): The fanless, natural-convection sibling of the 6DD1682-0BC3​ — suitable for lower-power configurations where forced-air cooling is unnecessary.
• Siemens 6DD1682-0CC0 (SR12.1): The 24 V DC-powered, fan-equipped 12-slot subrack alternative to the 6DD1682-0BC3​ for DC-powered control cabinets.
• Siemens 6DD1682-0CE3 (SR24.3): The 24-slot, AC-powered, fan-equipped big brother of the 6DD1682-0BC3, used when system expansion beyond 12 modules is required.
• Siemens 6DD1683-0BB0 (SP7 Power Supply): The dedicated power supply module for SIMADYN D SR6 racks, often deployed alongside 6DD1682-0BC3​ in multi-rack configurations.
• Siemens 6DD1607-0AA0 (FM 458): The application module that, when mounted in a 6DD1682-0BC3​ subrack, creates a high-performance closed-loop control platform for demanding motion applications.
