Description

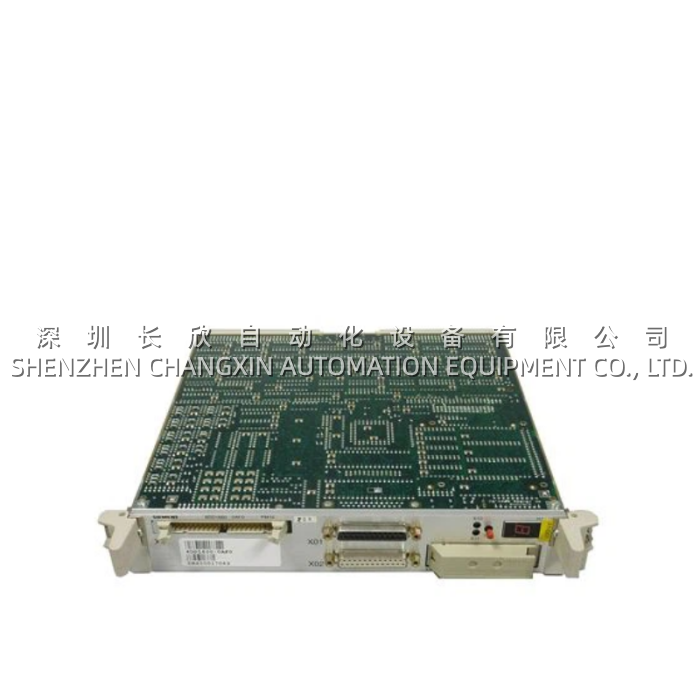

The Siemens 6DD1600-0AF0, also known as the SIMADYN D PM16 Process Module, is a 16-bit processor module designed for high-speed control and regulation tasks within the Siemens SIMADYN D distributed control system platform . This versatile industrial controller served as a cornerstone for complex automation applications requiring real-time processing and robust communication capabilities.

The Siemens 6DD1600-0AF0 combines a 16-bit processing architecture with dual-bus communication (L-Bus and C-Bus), enabling seamless integration into modular control networks . Its 16 binary inputs and 16 binary outputs provide direct connectivity for discrete signals, while the module’s compatibility with PROFIBUS-DP and RS-232 interfaces ensures flexible data exchange with supervisory systems and field devices .



Application Scenarios

In a large-scale steel hot rolling mill, the Siemens 6DD1600-0AF0 serves as a critical processing node in the distributed control system, managing the precise synchronization of multiple stand drives. Before upgrading to the SIMADYN D platform, the mill experienced communication bottlenecks between the centralized PLC and individual drive controllers, leading to occasional strip breakage during high-speed rolling passes. The distributed architecture enabled by the Siemens 6DD1600-0AF0 eliminated these bottlenecks, allowing each drive stand to execute its control loops locally while coordinating with adjacent stands via the high-speed L-Bus.

The engineering team configured the Siemens 6DD1600-0AF0 using Siemens engineering tools, implementing a cascaded speed and tension control algorithm that runs entirely on the module’s 16-bit processor . The result was a 15% reduction in strip breakage incidents and improved thickness accuracy across the entire product range. The mill’s maintenance manager reported that the modular design of the Siemens 6DD1600-0AF0 simplified troubleshooting and reduced mean time to repair (MTTR) by 40%, as faulty modules could be identified and replaced without disturbing the rest of the control system.



Parameters

Main Parameters	Value/Description
Product Model	6DD1600-0AF0
Manufacturer	Siemens AG
Product Category	Processor Module / Process Module (PM16)
Platform	SIMADYN D
Processor Architecture	16-bit digital signal processor
Processor Speed	16 MHz (typical)
Memory	1 MB Flash, 2 MB RAM, 32 KB EEPROM
Digital Inputs	16 channels (binary inputs)
Digital Outputs	16 channels (binary outputs)
Analog Inputs	4 channels
Analog Outputs	4 channels
Communication Interfaces	L-Bus, C-Bus, RS-232 (V.24), RS-485 (PROFIBUS-DP up to 12 Mbps)
Supply Voltage	24 V DC (±20%)
Power Consumption	8 – 15 W (typical)
Operating Temperature	-25°C to +70°C
Weight	0.35 – 0.67 kg
Dimensions (L×W×H)	Approx. 270 × 270 × 47 mm
Lifecycle Status	End of Product Lifecycle since October 1, 2017 (PM500)



Technical Principles and Innovative Values

Innovation Point 1: Dual-Bus Architecture for Distributed Control
The Siemens 6DD1600-0AF0 utilizes a sophisticated dual-bus communication system: the L-Bus handles high-speed local communication between modules within the same rack, while the C-Bus provides coordination across multiple racks and supervisory systems . This separation optimizes data throughput and reduces latency for time-critical control loops, enabling the Siemens 6DD1600-0AF0 to function as an intelligent node in distributed automation architectures rather than a passive I/O interface.

Innovation Point 2: Optimized 16-Bit Processing for Real-Time Control
With a 16-bit digital signal processor operating at 16 MHz, the Siemens 6DD1600-0AF0 delivers deterministic processing for demanding regulation tasks . The module’s architecture is specifically tuned for control algorithms requiring fast interrupt response and precise timing, making it ideal for applications such as variable speed drives, turbine governors, and servo-hydraulic test rigs where microseconds matter .

Innovation Point 3: Flexible I/O Configuration and Signal Conditioning
The Siemens 6DD1600-0AF0 offers 16 binary inputs and 16 binary outputs for discrete signal acquisition and control distribution . Additionally, optional analog input/output channels (4 each) and encoder inputs provide flexibility for applications requiring mixed signal types . This versatility allows the Siemens 6DD1600-0AF0 to adapt to diverse application requirements without additional interface modules.

Innovation Point 4: Robust Industrial Design and Environmental Tolerance
Engineered for demanding industrial environments, the Siemens 6DD1600-0AF0 operates reliably across a temperature range of -25°C to +70°C and humidity levels from 5% to 95% non-condensing . This robust design ensures consistent performance in steel mills, power plants, and other harsh environments where temperature fluctuations and vibration are common .

Innovation Point 5: SIMADYN D Platform Integration and Scalability
As a core component of the SIMADYN D platform, the Siemens 6DD1600-0AF0 enables scalable control solutions by allowing engineers to combine multiple processor modules for increased processing power and redundancy . The platform’s modular design supports both centralized and distributed control architectures, providing flexibility for systems ranging from single-machine control to entire plant automation.
