Application Scenarios

In a textile dyeing-and-finishing plant, a fleet of 40 dyeing machines built in the late 2000s was supervised through 6AV6642-0AA11-0AX1​ TP177A panels mounted on each machine’s local control cabinet. When one panel’s CCFL backlight finally degraded after 11 years of 24/6 operation in a high-humidity, chemical-laden atmosphere, the maintenance team needed an exact replacement to avoid re-engineering the WinCC flexible 2004 project or triggering a costly re-validation of the dyeing recipes. Because the 6AV6642-0AA11-0AX1​ uses the same cutout as its predecessor TP170A and communicates via a standard 9-pin MPI/PROFIBUS DP cable, the technician simply unclipped the failing unit, disconnected the 24 V DC terminal and the DB9 connector, and snapped the replacement panel into the existing cutout. The project was downloaded via the MPI interface in under 5 minutes, and the dyeing machine was back online without disrupting the production schedule. The 5.7-inch blue-STN display with 50,000-hour backlight MTBF had proven exceptionally resistant to the plant’s corrosive atmosphere — the IP65 front bezel and NEMA 4X rating sealed out moisture and dye vapor that had destroyed several competitor touch panels previously installed on auxiliary equipment. This case illustrates why strategic stocking of the 6AV6642-0AA11-0AX1​ is not optional for plants running legacy Siemens automation: the moment a panel fails, production stops until an exact-match replacement is sourced.

Parameter

Main Parameters	Value/Description

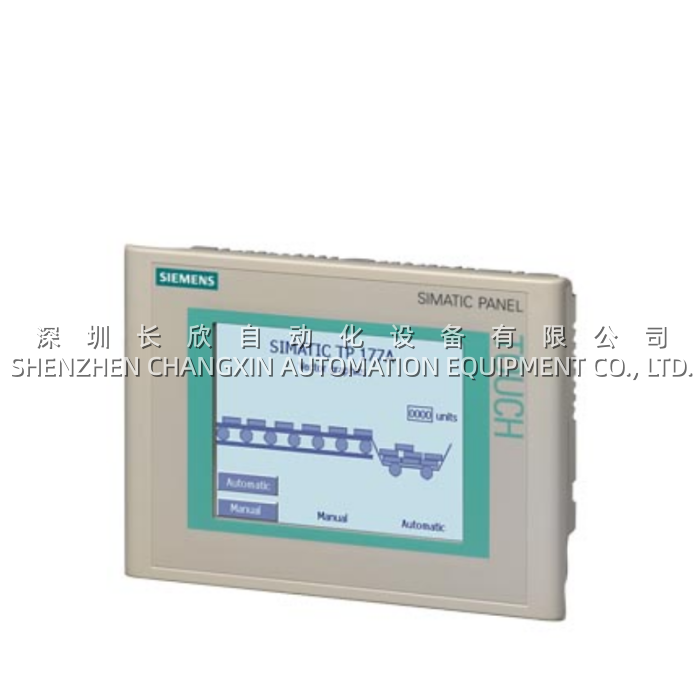

Product Model	6AV6642-0AA11-0AX1​
Manufacturer	Siemens AG
Product Category	HMI Touch Panel (Operator Terminal)
Product Family	SIMATIC TP177A (Micro Panel)
Display Type	5.7″ STN, blue mode (4 blue levels)
Resolution	320 × 240 pixels
Backlight	CCFL, MTBF 50,000 h at 25°C
Touchscreen	Analog resistive, full-screen
Function Keys	None (pure touch operation)
Supply Voltage	24 V DC (20.4–28.8 V DC range)
Current Consumption	0.24 A (rated)
Power Consumption	6 W typical
Inrush Current I²t	0.5 A²·s
Processor	ARM
User Memory	512 KB Flash/RAM
Real-Time Clock	Software clock, no battery backup
Interface	1 × MPI/PROFIBUS DP (9-pin DSUB, up to 12 Mbit/s)
Serial Interface	1 × RS422/RS485, max. 1.5 Mbit/s
USB / Ethernet / Card Slots	None
Configuration Software	WinCC flexible 2004 Compact HSP or higher
TIA Portal Support	No native support — requires WinCC flexible 2008 or migration
Online Languages	5 runtime languages
Project Languages	32 languages
Alarms	1,000 messages, 32 alarm classes
Recipes	5 recipes, 20 data records each, 32 KB Flash
Variables	500 per device
Protection Rating	Front IP65 / NEMA 4X; Rear IP20
Operating Temperature	0 °C to +50 °C (vertical mount, ±35° tilt)
Storage Temperature	-20 °C to +60 °C
Relative Humidity	≤ 90% (non-condensing)
Front Panel Dimensions (W×H)	212 × 156 mm
Cutout Dimensions (W×H)	198 × 142 mm
Installation Depth	44 mm
Weight	0.988 kg
Certifications	CE, UL, CSA, cULus, FM Class I Div. 2, ATEX Zone 2/22, C-TICK, GL/ABS/BV/DNV/LRS marine approvals
Lifecycle Status	PM500 — Sales discontinued since Oct 1, 2023, no direct replacement



Technical Principles and Innovative Values

• Innovation Point 1: Purpose-Built Micro Panel Architecture.​ The 6AV6642-0AA11-0AX1​ is engineered as a focused, no-frills operator terminal — no Ethernet, no USB, no card slots — which translates into exceptional reliability and a lower bill of materials. By stripping away non-essential interfaces, Siemens created an HMI that does exactly one thing supremely well: providing a rugged touch interface for MPI/PROFIBUS DP-connected S7-200, S7-300, and S7-400 controllers. This architectural discipline is precisely why the 6AV6642-0AA11-0AX1​ has survived 15+ years in brutal industrial environments where feature-rich panels have failed.
• Innovation Point 2: Blue-STN Display with 50,000-Hour CCFL Backlight.​ While color TFTs dominate modern HMI discussions, the 6AV6642-0AA11-0AX1‘s 4-level blue STN display delivers exceptional readability in direct sunlight and high-ambient-light factory floors. The CCFL backlight is rated for 50,000 hours to failure at 25°C — effectively 10+ years in typical 24/6 operation — far outlasting the LED-backlit panels of comparable era.
• Innovation Point 3: Native MPI/PROFIBUS DP Connectivity Without Gateways.​ The 6AV6642-0AA11-0AX1​ communicates directly with Siemens SIMATIC controllers via a single 9-pin DB9 cable, supporting MPI at 187.5 kbit/s and PROFIBUS DP at up to 12 Mbit/s. No Ethernet switches, no protocol converters, no middleware — the panel plugs straight into the PLC’s MPI port. This native integration is the fundamental reason TP177A panels remain in service decades after introduction.
• Innovation Point 4: Compact 44 mm Installation Depth with TP170A Cutout Compatibility.​ The 6AV6642-0AA11-0AX1​ features an exceptionally shallow 44 mm behind-flange depth, enabling installation in space-constrained cabinets. Crucially, it shares the exact cutout dimensions (198 × 142 mm) with the legacy TP170A, allowing direct mechanical and electrical retrofitting without modifying the cabinet door — a decisive advantage for plants standardizing on the Siemens Micro Panel form factor across multiple machine generations.
• Innovation Point 5: Hazardous Area & Marine Certifications Built-In.​ The 6AV6642-0AA11-0AX1​ carries ATEX Zone 2/22 and FM Class I Div. 2 certifications for explosive atmospheres, plus marine approvals from Germanischer Lloyd, ABS, Bureau Veritas, DNV, and Lloyds Register. This makes the panel deployable in chemical processing areas, offshore platforms, and shipboard automation without additional enclosure modifications — a capability rare in the 5.7-inch HMI class.
• Innovation Point 6: WinCC Flexible Project Portability.​ Despite lacking TIA Portal native support, the 6AV6642-0AA11-0AX1​ benefits from full WinCC flexible 2004/2008 project compatibility. Plants with archived WinCC flexible projects can instantly redeploy a replacement panel with zero reprogramming — the downloaded project includes all screens, alarms, recipes, and user management structures intact.



Application Cases and Industry Value

A specialty plastics extrusion plant operates 18 extrusion lines, each supervised by a Siemens 6AV6642-0AA11-0AX1​ TP177A panel mounted on the local operator station. The plant’s challenge was twofold: first, the extrusion hall’s ambient temperature regularly reaches 45°C near the die heads, pushing the 6AV6642-0AA11-0AX1​ to the upper limit of its 0–50°C operating range; second, the PVC dust and plasticizer vapors in the air are known to degrade standard touch panels within 2–3 years. After 14 years of continuous operation, the plant documented that 16 of the 18 original 6AV6642-0AA11-0AX1​ panels were still functioning with their original backlights — a 89% survival rate that plant management attributed to the IP65 front seal and the STN display’s inherent resistance to chemical fog. The two failed panels were replaced within 30 minutes each using verified stock units and cloned WinCC flexible projects. The plant’s automation engineer calculated that the Siemens 6AV6642-0AA11-0AX1‘s 512 KB user memory was more than sufficient for the extrusion lines’ 500 variables, 1,000 alarms, and 5-recipe management requirements — the panel’s “limitations” were, in practice, perfectly matched to the application. When Siemens announced the PM500 lifecycle status for the 6AV6642-0AA11-0AX1​ with sales discontinued October 1, 2023, the plant proactively secured a strategic buffer stock of 20 units, ensuring uninterrupted operation through the expected remaining service life of the extrusion lines. The plant’s total cost of ownership analysis showed that the 6AV6642-0AA11-0AX1​ delivered a 15-year service life at an amortized cost of less than €40 per year per panel — an ROI that no modern color TFT panel could match given the harsh operating conditions.

Related Product Combination Solutions

To build a complete SIMATIC HMI ecosystem around the 6AV6642-0AA11-0AX1, consider these sister, companion, and migration products:

• 6AV6640-0DA11-0AX0​ – The OP177B operator panel, a key/touch hybrid in the same Micro Panel generation as the 6AV6642-0AA11-0AX1. When applications require physical function keys alongside touch operation, the 6AV6640-0DA11-0AX0​ provides a compatible migration path with shared WinCC flexible project architecture.
• 6AV6647-0AA11-3AX0​ – The KTP400 Basic mono PN panel, representing the modern TIA Portal-native entry-level HMI. While not a direct drop-in for the 6AV6642-0AA11-0AX1​ (different cutout, PROFINET instead of MPI/DP), the 6AV6647-0AA11-3AX0​ is the recommended upgrade for new projects where panel geometry can be modified.
• 6AV2123-2GB03-0AX0​ – The KTP700 Basic DP panel, a recognized migration target from legacy TP177A panels. The 6AV2123-2GB03-0AX0​ retains MPI/PROFIBUS DP connectivity (easing integration with existing S7-300/400 networks) while adding TIA Portal compatibility, color TFT display, and USB/SD card interfaces.
• 6AV6648-0BC11-3AX0​ – The Smart 700 IE V3 panel, Siemens’ cost-optimized HMI for S7-200/S7-200 SMART controllers. For plants standardizing on the S7-200 SMART platform, the 6AV6648-0BC11-3AX0​ offers Ethernet-native communication and WinCC flexible Smart configuration — a natural successor where the 6AV6642-0AA11-0AX1​ served S7-200 systems.
• 6ES7972-0CB20-0XA0​ – The USB-to-MPI/PROFIBUS PG cable (PC Adapter USB), essential for downloading WinCC flexible projects to the 6AV6642-0AA11-0AX1​ from a modern PG/PC without legacy serial ports.
• 6ES7953-8LG11-0AA0​ – The SIMATIC Micro Memory Card (MMC) for S7-200 controllers, frequently paired with the 6AV6642-0AA11-0AX1​ in S7-200-based automation cells. When backing up the PLC program alongside the HMI project, the 6ES7953-8LG11-0AA0​ ensures full system recoverability.
• 6AV2132-0HA00-0AX0​ – The KTP1200 Basic PN panel for applications requiring larger visualization real estate and PROFINET connectivity. When migrating from the 6AV6642-0AA11-0AX1​ to a TIA Portal architecture, the 6AV2132-0HA00-0AX0​ provides the screen size and feature set for supervisory HMI roles.
• 6AV2124-0GC01-0AX0​ – The TP700 Comfort panel, Siemens’ high-end TIA Portal-native HMI. For plants undertaking comprehensive control cabinet modernization, the 6AV2124-0GC01-0AX0​ paired with the 6AV6642-0AA11-0AX1​ (during transition) creates a phased migration path that preserves existing MPI/DP network investments.
