Product Overview

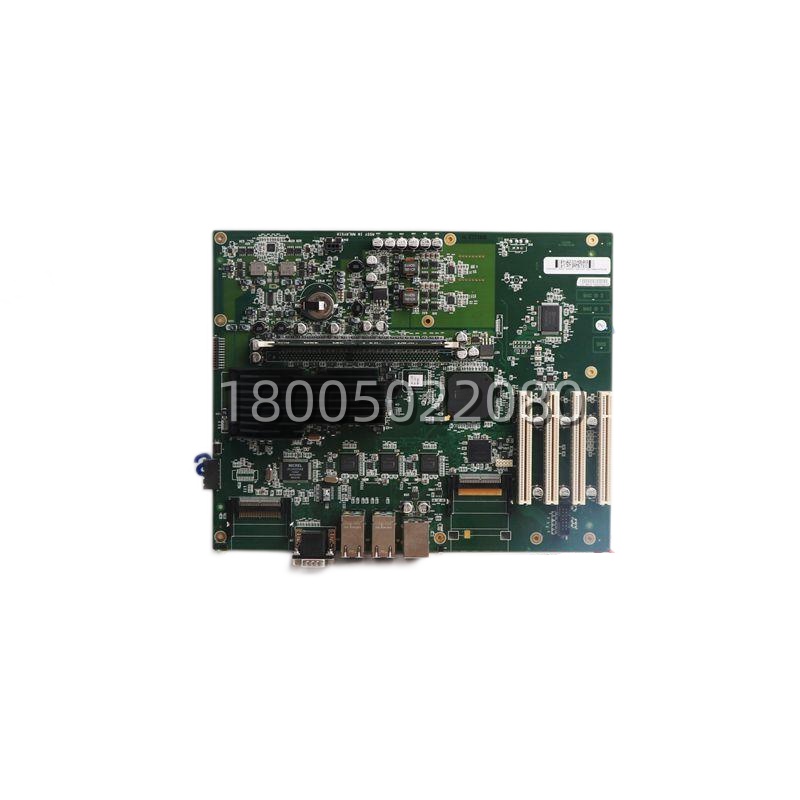

The ABB 087629-001, also identified in service documentation as the SR511 measurement electronics board or AccuRay scanner signal conditioning card, is a specialized printed circuit board designed for insertion into the measurement electronics chassis of ABB AccuRay Quality Control Systems (QCS)—specifically the AccuRay 4200, 5200, and 6200 series used on pulp and paper machine scan frames. The 087629-001​ receives low-level analog signals from the scan head’s primary measurement sensors—typically beta-ray or gamma-backscatter basis weight gauges, infrared moisture sensors, or caliper probes—conditions these signals through precision instrumentation amplifiers, applies digital filtering, performs 16-bit analog-to-digital conversion, and transmits the digitized measurement data to the AccuRay process station over the system’s internal parallel/serial backplane bus for further computation of basis weight, moisture, ash content, or coating thickness.As a critical element in the QCS measurement chain, the 087629-001​ determines the fidelity of the raw sensor data that ultimately drives cross-direction (CD) and machine-direction (MD) profile control, actuator trimming (slice lip, steam box, coating heads), and quality reporting. The board incorporates temperature-compensated reference circuitry, auto-zero calibration routines initiated by the AccuRay CPU, and galvanic isolation on the analog front end to reject common-mode noise from nearby drive motors and high-voltage equipment in the paper machine vicinity. In the AccuRay system architecture, the 087629-001​ is one of several plug-in electronics cards forming the scanner measurement “eurocard” set; it is slot-addressable and identified by the system software during power-up diagnostics, allowing straightforward hot or cold replacement without recalibration of the optical/beta sources themselves—though a gauge zero/span check is recommended post-installation.For paper mills operating legacy ABB AccuRay QCS platforms that remain highly capable and cost-effective for their grade mix, the 087629-001​ represents an essential sparing item. Age-related drift in the onboard precision op-amps, oxidized gold-finger edge connectors, or failed A/D converter sections are typical failure modes after 15–25 years of service in humid, thermally cycled machine-top environments. Replacing a faulty card with a fully tested 087629-001​ typically restores full scanner data within minutes, avoiding the massive expense and downtime of a complete QCS retrofit. The 087629-001​ thus plays a pivotal role in sustaining the availability and measurement accuracy of one of the most important process control assets in a pulp & paper facility—the basis weight/moisture measurement system that directly impacts raw material usage, energy consumption, and customer-spec compliance.

Technical Specifications

Product Model | 087629-001​ (ABB AccuRay SR511 Measurement Board, also referenced as 087629001)Manufacturer | ABB Automation / ABB Pulp & Paper (AccuRay Division)Product Type | AccuRay QCS Scanner Signal Conditioning / A-D Conversion Board (Eurocard format)Compatible Systems | ABB AccuRay 4200, AccuRay 5200, AccuRay 6200 Series Quality Control SystemsInput Signal Type | Low-level analog from beta/gamma gauge, IR moisture sensor, or caliper LVDT (mV–V range, typically ±10 V or 0–20 mA after pre-amp)A/D Resolution | 16-bit successive-approximation ADC per measurement channelSignal Bandwidth | DC to approx. 50 Hz (anti-alias filtered prior to sampling)Gain / Offset Adjustment | Software-controlled auto-zero and programmable gain via AccuRay CPU commandsBackplane Interface | AccuRay scanner electronics bus (multi-pin Eurocard DIN 41612 C-type connector)Indicators | Onboard test points; status reported to AccuRay diagnostics (pass/fail at power-on self-test)Operating Temperature | 0 °C to +55 °C (32 °F to 131 °F)Storage Temperature | -20 °C to +70 °CRelative Humidity | 10% to 90% non-condensingPCB Format | Standard Eurocard (approx. 100 × 160 mm or 233 mm length depending on rev), double-sided PTH, gold-finger edge connectorPower Requirement | +5 VDC, ±12 VDC / ±15 VDC from scanner electronics chassis backplane (typical total < 5 W)

Main Features and Advantages

Precision low-noise analog front end for micro-voltage sensor signals: The 087629-001​ incorporates instrumentation-grade differential amplifiers with high common-mode rejection ratio (CMRR > 90 dB at 50/60 Hz), enabling accurate measurement of the few-millivolt signals produced by beta-transmission basis weight sensors and low-level infrared detector outputs. This ensures that subtle variations in sheet weight (as little as ±0.1 gsm) are faithfully captured rather than buried in noise—a direct contributor to tighter CD profile control and reduced raw material giveaway.Integrated 16-bit A/D conversion with auto-calibration: Unlike generic data acquisition cards, the 087629-001​ is tightly coupled to the AccuRay system’s calibration cycle. On command from the AccuRay CPU, the board executes an internal auto-zero sequence that shorts the input to a precision reference, measures offset, and stores correction coefficients in volatile RAM—automatically applied to subsequent scans. This eliminates manual pot-adjustments and drift-related measurement bias that would otherwise require frequent gauge re-zeroing during grade changes.Seamless slot-identification and hot-swap compatibility: The 087629-001​ is recognized by the AccuRay scanner chassis based on its backplane slot position and EEPROM identifier. When a faulty board is removed and a replacement 087629-001​ is inserted (with system power on or off, depending on chassis design and redundancy), the AccuRay software detects the new hardware, loads the last-known configuration for that slot, and resumes scanning after a brief re-initialization—no DIP-switch setting or manual downloading of parameters to the card is required. This design minimizes mean time to repair (MTTR) for maintenance technicians who may be working under production pressure.Galvanic isolation and EMI resilience for harsh mill environments: Paper machine areas expose electronics to high EMI from AC drives, corona treaters, and static eliminators. The 087629-001​ employs optically isolated A/D sections and shielded analog input stages referenced to a clean analog ground plane separate from digital logic ground, greatly reducing susceptibility to induced noise on sensor cables that can be 20+ meters long in wide-sheet machines.Long-term life-cycle support for legacy QCS installations: Because ABB AccuRay 4200/5200/6200 systems remain in productive service worldwide, the 087629-001​ continues to be sourced, tested, and stocked by specialist automation spare providers. A fully tested 087629-001​ offers the same measurement performance as the original shipped board, often with refurbished electrolytic capacitors and contact cleaner applied to the gold fingers, extending the viable life of a multi-million-dollar QCS investment by another decade.
