Product Overview

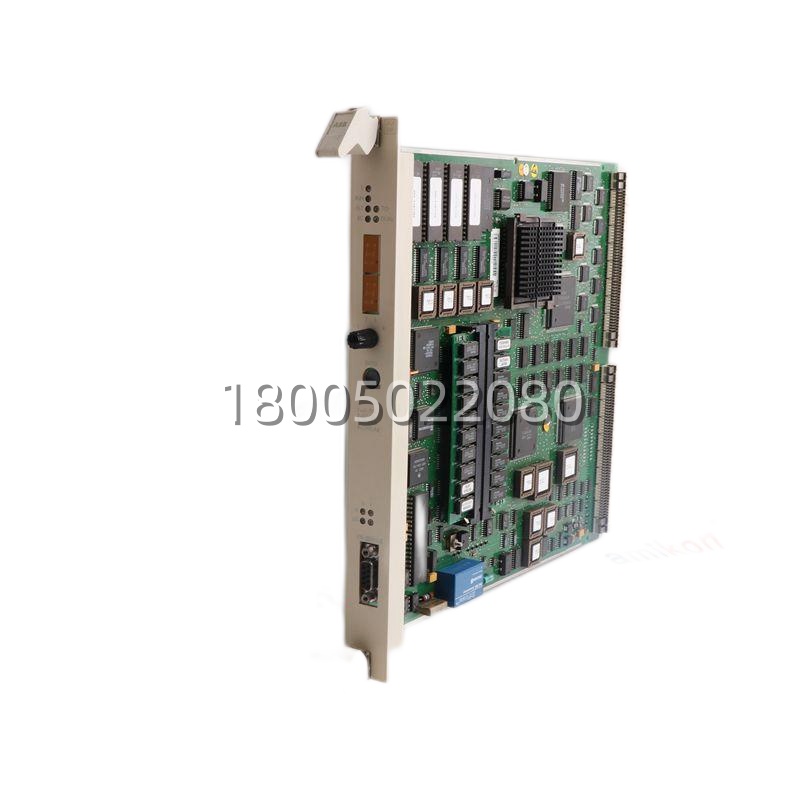

The ABB 6227BZ10200, also referenced with the suffix variant 6227BZ10200F, is a dual-channel fieldbus and serial communication interface module designed for insertion into the I/O expansion slot of ABB’s SC (System Controller) series processors—part of the ABB Symphony™ Enterprise Management and Industrial IT family historically used in power generation, pulp & paper, oil & gas, and large process plants. The 6227BZ10200​ provides two independent communication ports (typically configurable as Profibus DP-V0/V1 master or slave, or as RS-485/RS-232 Modbus RTU/ASCII interfaces depending on firmware and engineering configuration) enabling the SC controller to exchange cyclic I/O data with remote ABB S800 I/O stations, third-party intelligent field devices such as variable frequency drives, smart transmitters with HART passthrough, and other controllers via standardized fieldbus protocols.Physically, the 6227BZ10200​ plugs directly into the SC controller base unit (e.g., 6230A, 6231B, 6234A processor modules) and draws operating power from the controller backplane (typically 5 VDC derived). It communicates with the SC CPU over the internal multipoint bus and appears in the Symphony engineering database as a configurable communication resource with assignable node addresses, baud rates, and protocol stacks. The 6227BZ10200F​ designation generally indicates a specific firmware revision or regional variant (F = “Firmware locked” or “F-version”), functionally interchangeable with the base 6227BZ10200​ in most installed bases provided the Symphony configuration tool (Composer or CBF) supports the loaded firmware.For plants operating legacy ABB SC-based DCS architectures, the 6227BZ10200​ is a mission-critical communications gateway that links the control processor—executing regulatory and sequence control logic—to the field instrumentation layer. Its dual-port architecture allows segmentation of the fieldbus network (e.g., Channel A to a Profibus DP remote I/O coupler and Channel B to a string of Modbus RTU drives), redundant ring or daisy-chain topologies for improved availability, or connection to a secondary DCS node for data exchange. Because the 6227BZ10200​ is hot-swappable in supported configurations, it can be replaced without taking the SC controller out of run mode, a vital characteristic for continuously operating process units. The 6227BZ10200​ thus represents both a key integration enabler for multi-vendor automation and an essential spare part for life-cycle support of ABB Symphony SC systems worldwide.

Technical Specifications

Product Model | 6227BZ10200​ (Variant: 6227BZ10200F)Manufacturer | ABB Automation / ABB Ltd. (Symphony / Industrial IT Division)Product Type | SC Controller Dual-Channel Fieldbus / Serial Communication ModuleCompatible Host Controllers | ABB SC Series CPUs: 6230A, 6231B, 6234A, 6235 (with expansion slot)Number of Channels | 2 independent ports (Ch A / Ch B)Channel Interface Type | DB-9 or screw-terminal RS-485 (Profibus DP / Modbus RTU) or RS-232 (Modbus ASCII) — config dependentSupported Protocols | Profibus DP-V0/V1 (Master or Slave, per license/firmware), Modbus RTU Master/Slave, Modbus ASCIIBaud Rate Range | 9.6 kbps – 12 Mbps (Profibus DP up to 12 Mbps; Modbus up to 115.2 kbps)Backplane Power Draw | ≈ 0.8 – 1.2 A @ 5 VDC (from SC controller base)Indicators | Power LED, Run/Comm LED per channel, Error/Fault LEDOperating Temperature | 0 °C to +60 °C (32 °F to 140 °F)Storage Temperature | -40 °C to +85 °CHumidity | 5% – 95% RH, non-condensingMounting | Plugs into SC controller base unit expansion slot; secured by captive screw / ejector latchCertifications | CE, UL 508 / UL 1604 Class I Div 2 (selected revisions), RoHS compliant (later production)Configuration Tool | ABB Composer for Symphony, Control Builder F (CBF), or INFI 90 to Symphony migration tools

Main Features and Advantages

Dual independent fieldbus channels in one module: The 6227BZ10200​ houses two separately configurable communication ports, allowing plant engineers to partition field networks logically—for instance dedicating Channel A to a Profibus DP remote I/O coupler serving S800 analog/digital slices, while Channel B handles a Modbus RTU multidrop of 10–20 VFDs on a conveyor line. This eliminates the need for an external protocol gateway and keeps the fieldbus topology clean and diagnosable from the SC controller’s own diagnostic buffers.Hot-swap capability with automatic re-initialization: When installed in a supported SC controller configuration with redundant power and the controller in RUN mode, the 6227BZ10200​ can be removed and replaced without halting the control program. Upon insertion, the module auto-enumerates on the backplane, downloads its configuration from the SC CPU’s non-volatile memory, and resumes bus communication—typically within 10–15 seconds. This feature is invaluable during unplanned bus-module failures in 24/7 process plants where even a controlled shutdown is costly.Extensive protocol and multivendor device support: Through the Symphony engineering environment, the 6227BZ10200​ can be commissioned as a Profibus DP master (with GSD file import for third-party slaves such as Siemens, Endress+Hauser, Krohne, Danfoss) or as a Modbus master/slave. The module supports cyclic data exchange (process image I/O mapping) as well as acyclic services (DP-V1 for device parameter read/write, used with HART multiplexers or intelligent transmitters). This flexibility lets the 6227BZ10200​ serve as the primary field integration point even in heterogeneous automation environments.Onboard diagnostics and LED status indication: Each channel on the 6227BZ10200​ has dedicated TX/RX and fault LEDs; additionally the module reports detailed bus statistics—telegram counts, retry counters, slave timeouts—to the Symphony operator station. This accelerates troubleshooting: a maintenance technician can distinguish between a broken Profibus cable (no signal detect), a mis-addressed slave (timeout but signal present), or a baud-rate mismatch (excessive retries) directly from the DCS alarm list or by visual inspection of the module front panel.Seamless integration into legacy Symphony SC architecture: The 6227BZ10200​ requires no external power supply, separate rack, or configuration download utility—it is discovered and parameterized entirely through the same engineering station used for control logic, function block diagrams, and I/O mapping. For facilities standardizing on ABB Symphony, stocking the 6227BZ10200​ as a spare covers all fieldbus expansion needs for SC controllers across the plant, simplifying inventory and training.
