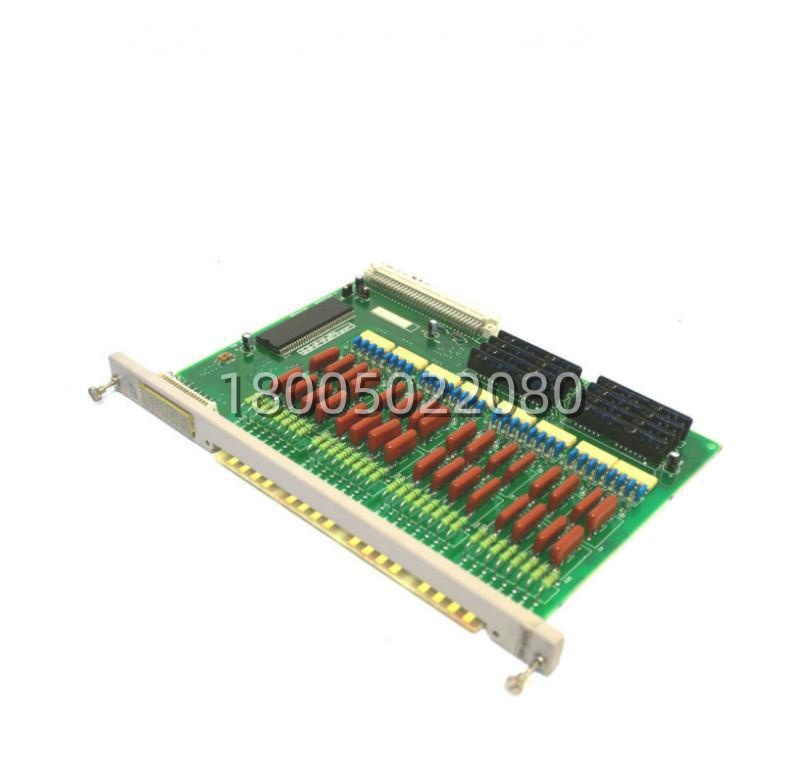

The Siemens 505-4232A is a 32-channel, 110V AC discrete input module belonging to the legacy SIMATIC TI 505 PLC series (also referenced as 505-4232-A). Designed for harsh industrial environments, it serves as the primary interface for reading the status of high-voltage AC field devices—such as limit switches, pushbuttons, and contactors—directly into the PLC’s input image table. This module is typically found in older automation systems within industries like manufacturing, process control, and heavy machinery, where maintaining legacy infrastructure is a priority.
Key Parameters
| Parameter | Specification |
|---|---|
| Module Type | Digital Input (DI), AC |
| Manufacturer/Series | Siemens / SIMATIC TI 505 |
| Number of Channels | 32 |
| Input Voltage | 100–115 V AC (Nominal) |
| Operating Range | 79–132 V AC |
| Input Current | ~15 mA per point |
| Logic Levels | ON: 79–132 V AC; OFF: 0–20 V AC |
| Isolation | Group isolation (typically 4 groups of 8) |
| Connection | Screw terminal / Removable terminal block |
| Status Indication | Per-channel LED indicators |
| Compatibility | TI 505 Series Racks (e.g., 505-525, 505-565) |
Application Scenario
In a legacy automotive stamping press control system, the 505-4232A module is installed in a local TI 505 I/O rack. It monitors the status of two-hand safety buttons, door interlock switches, and hydraulic valve position feedback signals—all operating at 110V AC. The module’s high channel density allows it to consolidate signals from multiple safety zones. Its robust input filtering and group isolation prevent electrical noise from the high-power contactors and motors from causing false inputs, ensuring the CPU receives a reliable image of the machine’s state for safe cycle control.
Technical Principles & Innovations
- High-Voltage AC Interface: Unlike modern 24V DC modules, the 505-4232A is designed to interface directly with 110V AC field devices common in older North American and industrial electrical systems. This eliminates the need for external signal converters or relays, simplifying the cabinet design and reducing points of failure.
- Enhanced Noise Immunity: The module features built-in filtering and floating input design, which is critical for surviving in electrically noisy environments like motor control centers (MCCs). The group-wise isolation (typically 500V) protects the sensitive PLC backplane from voltage surges and ground loops that can occur on long AC wiring runs.
- Legacy System Longevity: As part of the TI 505 series (originally from Texas Instruments, later acquired by Siemens), this module represents a design philosophy focused on ruggedness and long-term availability. Its parameters are set via DIP switches or hardware configuration rather than software, making it straightforward to troubleshoot without specialized engineering tools.
