Application Scenarios:

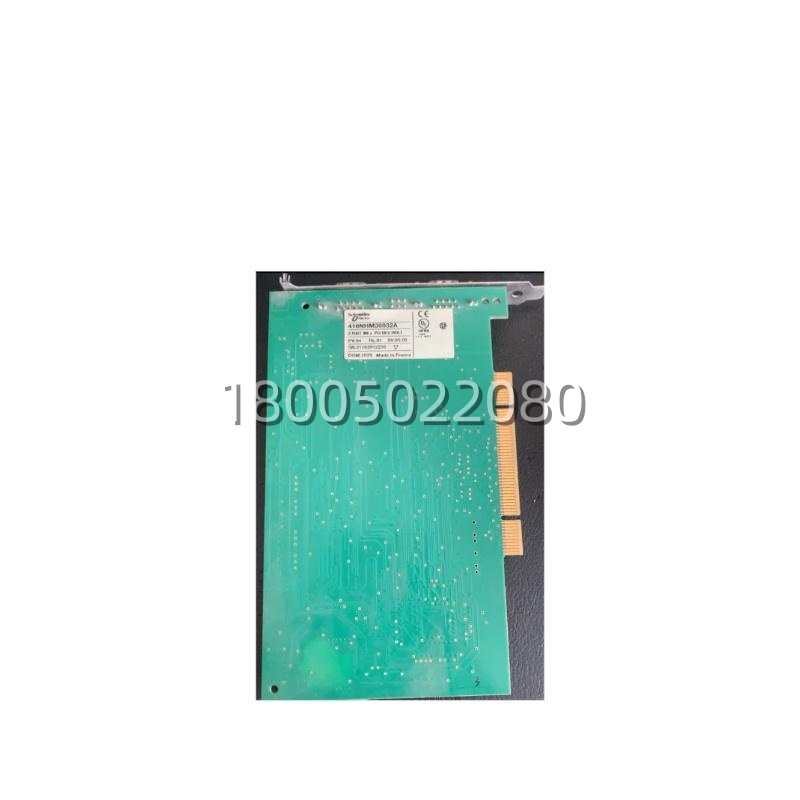

In a power plant’s distributed control system (DCS), the 416NHM30032A is installed in an industrial PC running Unity Pro or Concept software. The card connects the engineering workstation directly to the Modbus Plus network backbone, allowing engineers to monitor and modify the logic of multiple Modicon Quantum PLCs in real-time without interrupting the control network. In a manufacturing SCADA application, the same card enables an HMI station to poll data from dozens of PLCs on the MB+ network, providing real-time production dashboards and historical trending.
Parameter:
| Parameter Category | Specification Details |
|---|---|
| Manufacturer P/N | 416NHM30032A |
| Brand / OEM | Schneider Electric (formerly Modicon) |
| Product Type | Modbus Plus (MB+) PCI Communication Adapter |
| Host Interface | 32-bit PCI (5V / 3.3V universal keyed) |
| Port Quantity | 2 independent Modbus Plus ports |
| Port Connectors | Typically RJ-45 or DB-9 (varies by version) |
| Network Protocol | Modbus Plus (MB+) |
| Data Rate | 1 Mbps (token-passing network) |
| Maximum Nodes | Up to 64 nodes per network segment |
| Cable Type | Shielded twisted pair (e.g., Belden 9182) |
| Isolation | 500V RMS (ports isolated from PCI bus) |
| LED Indicators | ACT (Activity), MR (Modem Ready) per port |
| Driver Support | Windows NT 4.0, 2000, XP (32-bit) |
| Software Compatibility | Unity Pro, Concept, Modsoft, PL7 |
| Power Consumption | < 5W (derived from PCI slot) |
| Operating Temperature | 0 °C to +60 °C |
| Status | Discontinued (OBSOLETE) |
Technical Principles and Innovative Values:
- Innovation Point 1: Deterministic Token-Passing Network: Unlike standard serial Modbus (RTU), Modbus Plus is a high-speed (1 Mbps), deterministic LAN protocol. The 416NHM30032A implements the token-passing mechanism in hardware, ensuring that each node on the network (PC, PLC, bridge) gets a guaranteed time slice to transmit data. This eliminates data collisions and provides predictable, real-time performance for critical control applications, a significant advantage over Ethernet-based TCP/IP in legacy industrial networks.
- Innovation Point 2: Dual-Port Network Bridging: The card features two fully independent Modbus Plus ports. This allows a single PC to connect to two separate MB+ networks simultaneously (e.g., a “Process” network and a “Utility” network). Alternatively, the second port can be used as a redundant backup or to extend the network by acting as a simple repeater/bridge, increasing network design flexibility without requiring an additional PC or external gateway.
- Innovation Point 3: Hardware-Level Electrical Isolation: Each communication port on the 416NHM30032A is galvanically isolated (500V) from the PCI bus and the PC’s motherboard. This is a critical protection feature in industrial environments, as it prevents ground loops, voltage surges, and electrical noise from the factory floor from damaging the sensitive electronics of the host computer, ensuring higher system reliability and longevity.
