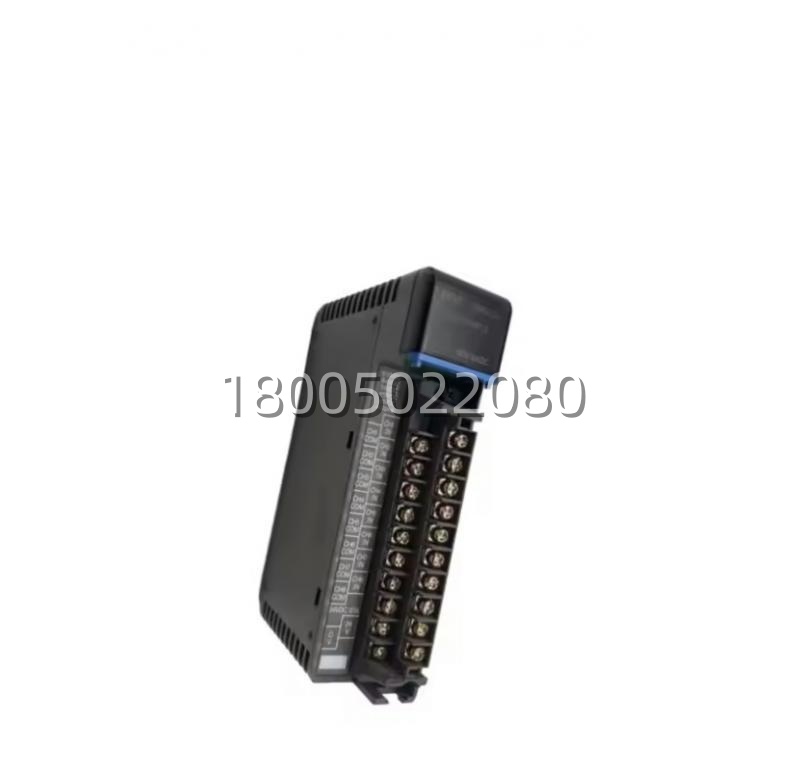

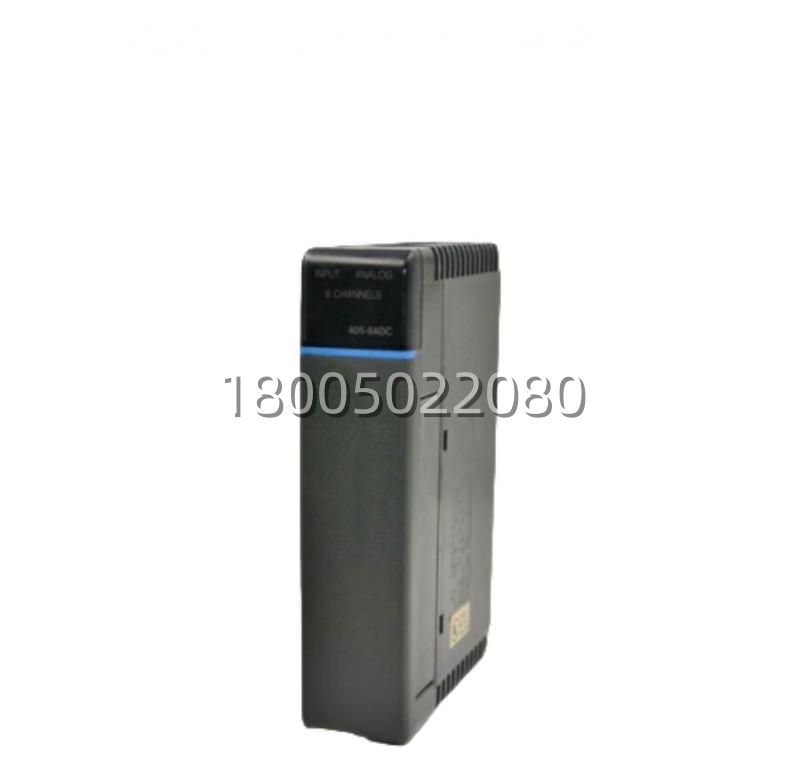

The Siemens 405-8ADC-1 is an 8-channel analog input module designed for the SIMATIC S7-400 PLC system. It serves as a high-precision signal acquisition interface, converting real-world physical signals (voltage or current) from sensors into digital values for the CPU. This module is a core component in process control and data acquisition systems where accuracy and reliability are critical.
Key Parameters
| Parameter | Specification |
|---|---|
| Module Type | Analog Input (AI 8×12/13 bit) |
| Order Number | 6ES7 405-8ADC01-0AA0 |
| Channels | 8 (isolated in groups of 2) |
| Signal Types | Voltage: ±10V, 0-10V, 1-5V Current: 0/4-20mA, ±20mA |
| Resolution | 12/13 bit (including sign) |
| Input Impedance | Voltage: ≥10 MΩ Current: 250 Ω (for 4-20mA) |
| Connection | Via front connector (40-pin) |
| Backplane Bus | S7-400 I/O bus (not P bus) |
| Diagnostics | Wire break, Underrange/Overrange |
Application Scenario
In a chemical processing plant, multiple temperature transmitters (with 4-20mA output) and pressure sensors (with 0-10V output) are installed across reaction vessels. The 405-8ADC-1 module is installed in a central S7-400 rack. It continuously monitors these analog signals, converting them into engineering values (e.g., °C, bar) for the CPU. The module’s high channel count allows for centralized monitoring of multiple process variables, while its diagnostic capabilities alert operators to sensor wire breaks, preventing faulty data from affecting the control logic.
Technical Principles & Innovations
- Group-Wise Channel Isolation: Unlike modules with full channel-to-channel isolation, the 405-8ADC-1 provides isolation in groups of two channels. This design offers a balance between cost-effectiveness and noise immunity, protecting the system from ground loops in typical industrial sensor wiring.
- Flexible Signal Conditioning: The module supports a wide range of standard voltage and current signals without requiring external signal conditioners. Each channel can be individually configured in the hardware configuration (e.g., some channels for 4-20mA loops, others for 0-10V sensors), providing great flexibility in mixed-signal environments.
- S7-400 System Integration: As a dedicated S7-400 module, it leverages the high-speed I/O bus of the backplane for fast data exchange with the CPU. Its configuration is fully integrated into Siemens STEP 7 software, allowing for centralized parameter assignment and diagnostics.
