Application Scenarios

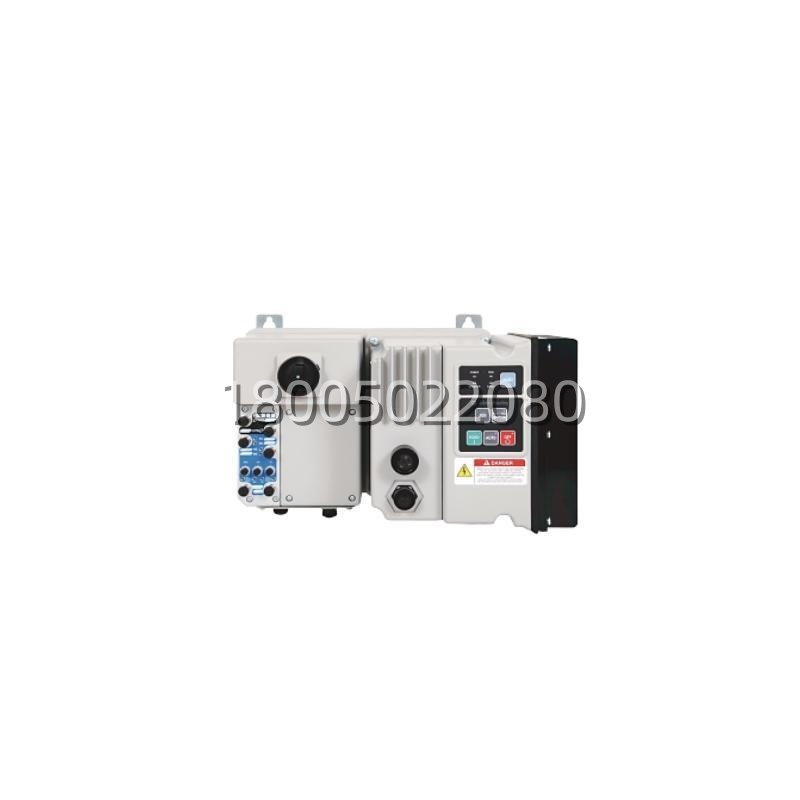

In a Taiyuan mining conveyor system, the 284E‑FVD6P0Z‑25‑CR‑EMI is mounted directly on the conveyor frame to control the drive motor. Its IP67 rating protects against dust and water ingress, while the built‑in EMI filter prevents interference with nearby PLCs and sensors from long motor cables. The integrated EtherNet/IP allows direct communication with the central Rockwell Automation control system for speed control and diagnostics.
Parameter
| Main Parameters | Value/Description |
|---|---|
| Manufacturer / Brand | Allen‑Bradley (Rockwell Automation) |
| Catalog Number | 284E-FVD6P0Z-25-CR-EMI |
| Product Series | ArmorStart (Bulletin 284) |
| Product Type | Distributed Motor Controller with VFD |
| Rated Power | 2.2 kW (3.0 HP) |
| Rated Output Current | 6.0 A (continuous) |
| Input Voltage | 380–480 V AC, 3‑phase, 50/60 Hz |
| Control Voltage | 24 V DC (external supply required) |
| Enclosure Rating | IP67 / NEMA 4X (dust-tight, water-resistant) |
| Control Modes | Sensorless Vector Control (SVC), V/f |
| Communication | EtherNet/IP (embedded) |
| Built‑in Filter | EMI/RFI filter (meets EN 61800‑3) |
| Overload Capacity | 150% for 60 seconds |
| Operating Temperature | ‑20 °C to +50 °C (‑4 °F to +122 °F) |
| Safety Function | Safe Torque Off (STO) (SIL 3/PL e) |
Technical Principles and Innovative Values
- Innovation Point 1: Distributed “On‑Machine” Architecture. Unlike traditional cabinet‑mounted drives, the ArmorStart is designed to be installed directly on the motor or machine frame. This eliminates the need for a separate motor control center (MCC) cabinet, reduces cabinet footprint, and shortens motor cable runs, which in turn minimizes voltage reflection and bearing currents.
- Innovation Point 2: Integrated EMI Filtering for Noisy Environments. The ‑CR‑EMI variant includes a factory‑integrated C‑class EMI/RFI filter. This is critical in Taiyuan’s heavy industrial settings (mining, steel) where multiple drives on a common bus can cause severe conducted interference. The filter suppresses both common‑mode and differential‑mode noise, ensuring compliance with EN 55011/EN 61800‑3 and preventing interference with sensitive control equipment.
- Innovation Point 3: Unified Motor Control & Protection. The device integrates a disconnect switch, drive, and motor protector into one IP67 housing. It provides comprehensive motor protection (overload, jam, underload, phase loss) without needing external thermal overload relays. The embedded EtherNet/IP supports CIP Motion and CIP Safety, allowing it to function as a motion axis in a Rockwell Logix system.
