Application Scenarios

In a large-scale petrochemical plant, maintaining precise temperature control across dozens of reactor vessels and heat exchangers is critical for both product quality and safety. The existing DCS relies on a distributed I/O architecture using ABB S800 racks. The ABB SPASI23​ modules installed in these remote racks are configured with mixed signal types: eight channels for 4-20 mA pressure transmitters and another eight for J-type thermocouples measuring reactor skin temperatures. When a sudden process upset causes erratic temperature readings, the plant’s control engineers quickly diagnose the issue not as a process fault, but as a failing SPASI23​ module exhibiting drift on specific channels. Thanks to the modular and hot-swappable design of the S800 system, they replace the faulty SPASI23​ during a brief maintenance window. The new module is automatically recognized by the system, and its pre-configured signal parameters (TC type, cold junction compensation, scaling) are downloaded seamlessly, restoring accurate process visibility within minutes and preventing a potential production shutdown.



Parameter

Main Parameters	Value/Description

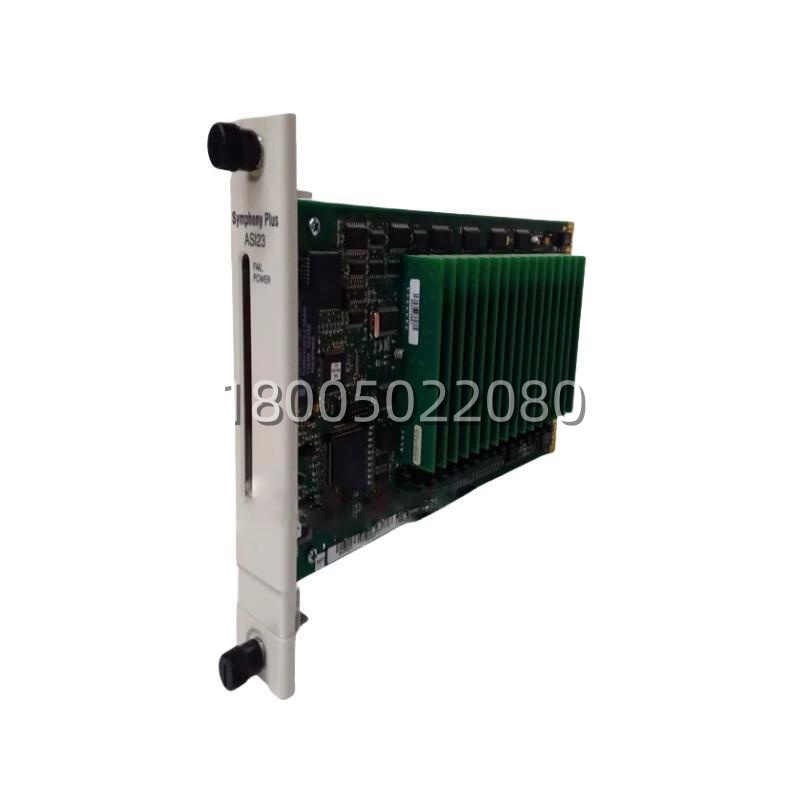

Product Model​	SPASI23​
Manufacturer​	ABB
Product Category​	Analog Input Module (AI)
I/O System​	S800 I/O, Symphony Plus, Advant OCS
Number of Channels​	16 single-ended / differential (software-configurable)
Supported Signals​	Voltage (±10V, 0-10V), Current (4-20mA, 0-20mA), TC (J,K,T,E, etc.), RTD (Pt100), mV
Resolution​	16-bit (effective)
Accuracy​	High precision (typically ±0.05% of span)
Isolation​	Channel-to-channel and channel-to-system (1500V AC)
Update Rate​	Configurable, typically 10-100 ms per channel
Power Supply​	24V DC (via S800 baseplate or external)
Connection​	Removable terminal block (e.g., TB820)
Operating Temp.​	-25°C to +70°C (industrial grade)





Technical Principles and Innovative Values

• Innovation Point 1: Universal Channel Flexibility:​ A key innovation of the ABB SPASI23​ is its “any-channel, any-signal” programmability. Unlike fixed-function modules, each of its 16 input channels can be individually configured via Control Builder or Composer software to accept a specific signal type. This eliminates the need for separate dedicated modules for temperature (TC/RTD) and standard analog (4-20mA) signals, drastically reducing spare parts inventory and control cabinet footprint. Engineers can freely assign channels to different sensor types without rewiring or hardware changes, offering unparalleled project flexibility.
• Innovation Point 2: Advanced Signal Integrity and Diagnostics:​ The module incorporates sigma-delta ADC technology with oversampling and continuous self-calibration. This design actively suppresses noise (with a high Common-Mode Rejection Ratio, CMRR) and compensates for thermal drift, ensuring long-term measurement stability crucial for critical processes. Furthermore, the SPASI23​ provides extensive diagnostic capabilities, including wire break detection for 4-20 mA loops, overrange/underrange alarms, and module health monitoring, enabling predictive maintenance and reducing mean time to repair (MTTR).
• Innovation Point 3: Robust Isolation for Harsh Environments:​ Engineered for demanding industrial environments like chemical plants and metal processing, the SPASI23​ features galvanic isolation between each channel and the backplane. This isolation barrier protects the sensitive DCS controller from ground loops, high-voltage transients, and electrical noise commonly found in factory settings, ensuring system-wide reliability and data integrity.



Application Cases and Industry Value

Case Study: Power Generation Plant Boiler Temperature Monitoring Upgrade.​ A combined-cycle gas turbine power plant was experiencing intermittent data loss from its boiler tube temperature monitoring system, which used a mix of legacy I/O cards. The unreliable data risked inefficient combustion control and potential tube overheating. The plant upgraded to an ABB Symphony Plus system utilizing ABB SPASI23​ modules in remote I/O cabinets located close to the boiler. The SPASI23‘s ability to handle both K-type thermocouples (for high-temperature gas paths) and Pt100 RTDs (for water/steam temperatures) on the same module simplified the cabinet layout. Post-installation, the plant reported a significant improvement in signal stability and a reduction in “bad value” alarms. The engineering team highlighted the module’s diagnostic features, which allowed them to proactively identify a failing thermocouple before it caused a control anomaly, thereby enhancing operational safety and availability.
