Application Scenarios:

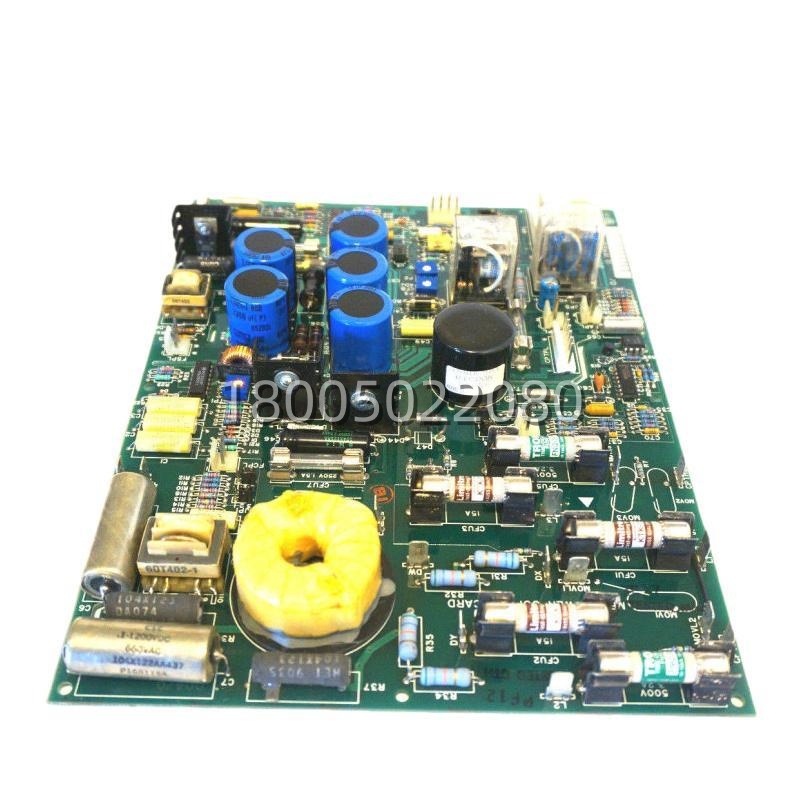

In a large steel rolling mill, the main DC drive motor’s field excitation must be precisely controlled to maintain torque consistency during the high-impact process of rolling red-hot steel slabs. If the 531X111PSHAPG3 board fails, the motor loses its regulated field current, causing erratic speed behavior and potentially damaging the rolled product. Replacing the faulty board restores both the +5V, ±15V logic supplies for the drive’s regulator cards and the pulse-width modulated (PWM) signals for the motor’s field thyristor bridge. This ensures the motor delivers smooth, controlled torque even under sudden load changes, preventing production line stoppages and protecting the mechanical drive train from stress.
Parameter:
| Main Parameter | Value / Description |
|---|---|
| Manufacturer Part Number | 531X111PSHAPG3 (Alt: F31X111PSHALG1) |
| Manufacturer | General Electric (GE) |
| Product Type | Motor Field Control / Power Supply Board |
| Input Voltage | 115/230 VAC (Selectable), 50/60 Hz |
| DC Output Voltages | +5 VDC, +15 VDC, -15 VDC, +24 VDC (Logic & Control) |
| Primary Function | Power Supply for Drive Electronics & Motor Field Excitation Control |
| Key Component | Integrated Pulse Transformer (for Field Circuit) |
| Mounting Style | Chassis Mount (within Drive Cabinet) |
| Compatible Systems | GE SPEEDTRONIC Mark V, 531X Series DC Drives |
| Operating Temperature | 0°C to +50°C (Industrial Grade) |
| Typical Applications | DC Motor Drives, Turbine Control, Heavy Industry |
Technical Principles and Innovative Values:
- Innovation Point 1: Dual-Function Integrated Design. The 531X111PSHAPG3 innovates by combining the switch-mode power supply (SMPS) for the drive’s internal electronics with the motor field control circuitry on a single printed circuit board (PCB). This consolidation reduces the component count and inter-board wiring within the drive chassis, enhancing reliability by eliminating potential connection faults. The board generates the low-voltage logic rails (+5V, ±15V) for microprocessors and op-amps while simultaneously providing the isolated gate drive pulses for the external field power thyristors via its integrated pulse transformer.
- Innovation Point 2: Robust Field Excitation with Pulse Transformer. A key technical feature is the inclusion of a pulse transformer directly on the board. This transformer provides galvanic isolation between the low-voltage control electronics and the high-power motor field circuit (which can operate at hundreds of volts DC). This design ensures safe and reliable triggering of the external thyristor bridge that supplies DC current to the motor’s field winding, which is critical for maintaining motor flux and torque control without ground loop interference.
- Innovation Point 3: Wide-Range Selectable Input & Industrial Hardening. The board is engineered for global deployment and harsh environments. It features a selectable input voltage (115V/230V AC) with wide tolerance, allowing it to be used in different electrical infrastructures without hardware modification. The components are selected and the board is coated to withstand the vibration, temperature swings, and electromagnetic noise typical of industrial plants, ensuring long-term stability for critical processes.
