Application Scenarios
In a mining operation’s critical slurry pump application, the 239-RTD-AN is installed in the motor control center (MCC). The relay’s RTD inputs are wired to Pt100 sensors embedded in the motor windings. It continuously monitors both electrical current (for overload and phase loss) and actual winding temperature. If the pump becomes clogged, causing the motor to overheat, the 239-RTD-AN will trip based on the RTD temperature reading beforethe current-based thermal model alone would react, preventing insulation damage. Simultaneously, its analog output sends the motor’s thermal capacity (%) to the central SCADA system for predictive maintenance monitoring.
Parameter
| Main Parameters | Value/Description |
|---|---|

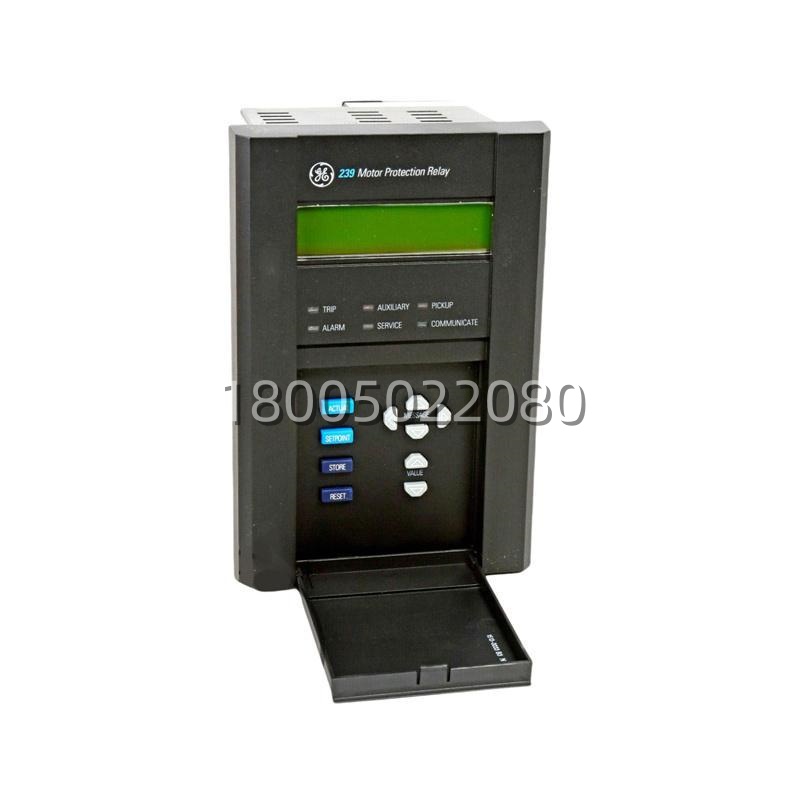

| Product Model | GE Multilin 239-RTD-AN |
| Manufacturer | General Electric (GE) / GE Multilin |
| Product Status | Legacy / Discontinued (Successor: GE 339 series) |
| Power Supply | 90–300 VDC / 70–265 VAC (Wide Range) |
| Motor Voltage | Typically 200–690 VAC (Depends on CT/VT setup) |
| Current Input | Via External CTs (e.g., 1A or 5A secondary) |
| RTD Inputs | 3 Programmable Channels (Supports Pt100, Ni120, Cu) |
| Analog Output | 1 Isolated 4-20mA / 0-20mA Output (Programmable Source: %Load, Temp, etc.) |
| Digital I/O | Multiple Programmable Digital Inputs & Relay Outputs |
| Communication | RS-485 Serial Port (Modbus RTU) |
| Display | Backlit LCD with Keypad for Setup & Monitoring |
| Protection | Thermal Overload, Short Circuit, Ground Fault, Locked Rotor, Phase Unbalance, RTD Overtemp |
| Dimensions | Approx. 110–146 mm (Width) x 55–146 mm (Height) (Varies by specific housing) |
| Mounting | DIN Rail or Panel Mount |
Technical Principles and Innovative Values
The 239-RTD-AN enhances traditional current-based protection with direct thermal monitoring and analog integration.
- Innovation Point 1: Dual-Layer Thermal Protection: Unlike basic thermal overload relays that only estimate temperature based on current, the 239-RTD-AN integrates RTD feedback into its thermal model. This allows it to accurately protect motors in challenging environments (e.g., high ambient temperature, clogged cooling fins) where the standard I²t model might be inaccurate, providing a “true temperature” safety net.
- Innovation Point 2: Programmable Analog Output for System Integration: The inclusion of an isolated 4-20mA analog output (the “AN” feature) transforms the relay from a simple protector into a data acquisition node. Users can program this output to represent motor load, thermal capacity, or temperature, enabling seamless integration with existing PLC/DCS systems without additional signal conditioners.
- Innovation Point 3: Advanced Diagnostics and Event Logging: The microprocessor-based design provides detailed metering (current, voltage, power) and stores the last several fault events with timestamps. This diagnostic capability helps maintenance teams quickly determine the root cause of a trip (e.g., “Phase Loss” vs. “RTD Overtemp”), significantly reducing Mean Time To Repair (MTTR).
