Application Scenarios

In a steel plant’s cooling water pump station, an aging ACS800 drive frequently faulted due to a corrupted control board, causing unplanned production stoppages. The maintenance team replaced the faulty module with the ABB RDCU-12C 3AUA0000036521. After loading the backed-up application software, the drive was restored to full operation within an hour. The new unit’s robust I/O (7 DI, 3 Relay Outputs) allowed the plant to directly integrate pressure transducer feedback and alarm signals without external PLC hardware, simplifying the control cabinet layout and reducing wiring costs.



Parameter

Main Parameters	Value/Description

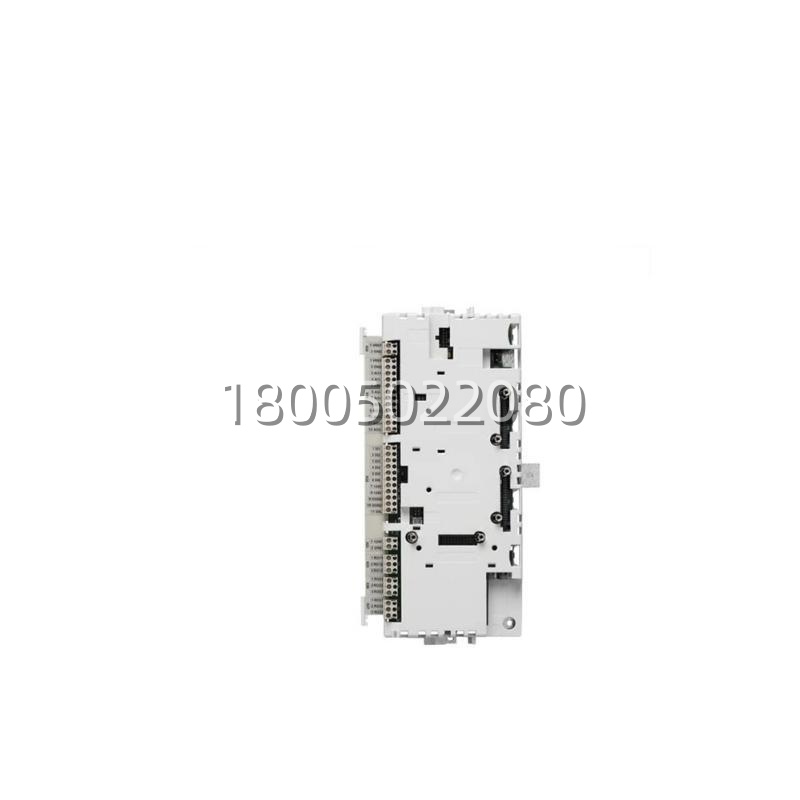

Product Model​	RDCU-12C​
Manufacturer​	ABB
Product Category​	Drive Control Unit (DCU) / Main Control Board
Manufacturer Part Number​	3AUA0000036521​
Compatible Drive Series​	ACS800, ACS880 (Single & Multi Drive)
Control Technology​	Direct Torque Control (DTC), V/f Control
Digital Inputs (DI)​	7 (24V DC, programmable, 1ms filter)
Digital Outputs (DO)​	3 Relay (Changeover, 2A @ 230V AC)
Analog Inputs (AI)​	3 (1x ±10V, 2x 0/4-20mA)
Analog Outputs (AO)​	2 (0/4-20mA)
Communication​	PPCS Fiber Optic (to power stage), Expansion Slots for Fieldbus (Profibus, Profinet, etc.)
Auxiliary Power​	+24V DC Output (Max 250mA)
Operating Temperature​	0°C to +60°C (or -10°C to +60°C)
Weight​	Approx. 0.6 kg





Note: This module typically ships without application software. Firmware or parameter sets must be loaded separately after installation.

Technical Principles and Innovative Values

The ABB RDCU-12C 3AUA0000036521​ is a sophisticated industrial controller that replaces traditional discrete logic with integrated, software-defined control.

• Innovation Point 1: High-Performance DTC Execution.​ Unlike standard V/f drives, the RDCU-12C​ implements ABB’s proprietary Direct Torque Control (DTC) technology. This allows for precise motor control without needing an encoder (for most applications), achieving torque response times under 2ms. This results in better speed accuracy and dynamic performance in applications like extruders or crushers, where load changes are sudden and severe.
• Innovation Point 2: Integrated I/O Expansion & Signal Conditioning.​ The unit acts as a built-in signal conditioner and expander. It provides 7 digital inputs with hardware filtering to reject noise, 3 relay outputs for direct contactor control, and isolated analog channels. This eliminates the need for external intermediate relays and signal converters in many panels, reducing component count and potential failure points.
• Innovation Point 3: Modular Fieldbus Architecture.​ The RDCU-12C​ features expansion slots (Slot 1 & 2) for plug-in communication adapters (e.g., Profibus DP, Ethernet/IP). This modular design allows a standard drive to be easily upgraded to a network node, enabling seamless integration into DCS or PLC-controlled systems without replacing the entire control unit.
