Application Scenarios:In a municipal water pumping station, the control logic required multiple pump status signals (running, fault) and external commands from a remote PLC. The base I/O of the existing ABB ACS800 drives was insufficient, and installing a separate external PLC cabinet was cost-prohibitive and space-consuming. By integrating the ABB RDIO-01 module into the open slot of each drive’s RMIO board, engineers gained the necessary extra I/O points. The module’s high-voltage inputs (up to 230V AC) directly accepted signals from the existing level switches and pushbuttons, while its relay outputs drove external alarm horns and status lights. This solution streamlined the control panel design, reduced wiring complexity by 30%, and leveraged the drive’s built-in intelligence for a more integrated and reliable control system.
Parameter:

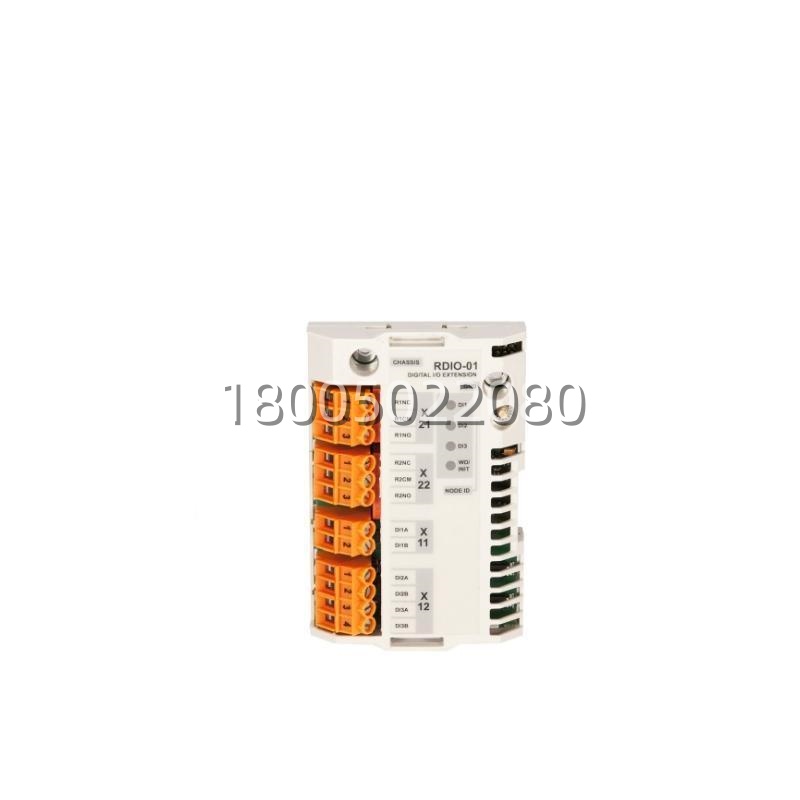

| Main Parameters | Value/Description |
|---|---|
| Product Model | ABB RDIO-01 |
| Manufacturer | ABB |
| Product Category | Digital I/O Extension Module |
| Compatible Series | ACS800, DCS800 (with Standard Application Program) |
| Digital Inputs | 3 channels (DI1, DI2, DI3) |
| Input Voltage Range | 24-250V DC / 110-230V AC |
| Relay Outputs | 2 channels (R1, R2) – Changeover contacts |
| Output Rating | 5A / 250V AC (1250VA max) |
| Isolation Voltage | 2.5 kV (Inputs/Outputs/Power) |
| Mounting | Slot 1 or Slot 2 on RMIO board or AIMA-01 adapter |
| Node ID Selection | Rotary switch (0-15) for network addressing |
| Dimensions (HxWxD) | Approx. 95 x 62 x 34 mm |
Technical Principles and Innovative Values:The ABB RDIO-01 is designed as a flexible and robust I/O expansion solution that integrates seamlessly into the drive’s control ecosystem, offering significant advantages over generic external modules.
- Innovation Point 1: Wide-Range Multi-Voltage Inputs with Hardware Filtering. Unlike standard 24V DC-only modules, the RDIO-01‘s digital inputs are designed to accept a broad spectrum of voltages (from 24V DC up to 230V AC). This eliminates the need for external signal converters or interposing relays when interfacing with legacy control systems or high-voltage sensors. Each input is equipped with a configurable hardware filter (via DIP switch) to suppress contact bounce and electrical noise, ensuring signal integrity in electrically noisy industrial environments without burdening the drive’s software with filtering algorithms.
- Innovation Point 2: Integrated Relay Outputs with High Switching Capacity. The module incorporates two electromechanical relay outputs with changeover contacts (NO/NC) capable of switching up to 5A. This allows the RDIO-01 to directly control contactors, solenoid valves, or alarm devices without requiring an external power relay. The direct integration means the drive’s logic (e.g., “Drive Ready” or “Overload”) can directly actuate field devices, reducing component count and potential failure points in the control circuit.
- Innovation Point 3: Plug-and-Play Backplane Integration. The RDIO-01 connects to the drive via a 38-pin parallel bus connector when plugged into the RMIO slot. This design provides automatic power and communication link establishment, avoiding the complex and error-prone wiring typically associated with externally mounted I/O modules. The module is automatically recognized by the drive, and its I/O points are mapped directly into the drive’s parameter list (e.g., under EXT1/EXT2 command sources), enabling quick configuration without additional hardware drivers.
