Application Scenarios:In a pharmaceutical batch production facility, a critical AC 800M controller managing a reactor sequence experienced an unexpected shutdown, triggering a batch abort alarm. Investigation revealed a failure in the rack’s primary power supply. Thanks to a redundant configuration with two ABB SD811V1 modules, the system seamlessly switched to the secondary unit with zero interruption. The failed SD811V1 was hot-swapped with a spare unit within minutes while the process continued unaffected. This incident prevented the loss of a high-value batch worth over $250,000 and demonstrated the non-negotiable role of redundant, hot-swappable power supplies in mission-critical process control.
Parameter:
| Main Parameters | Value/Description |
|---|---|

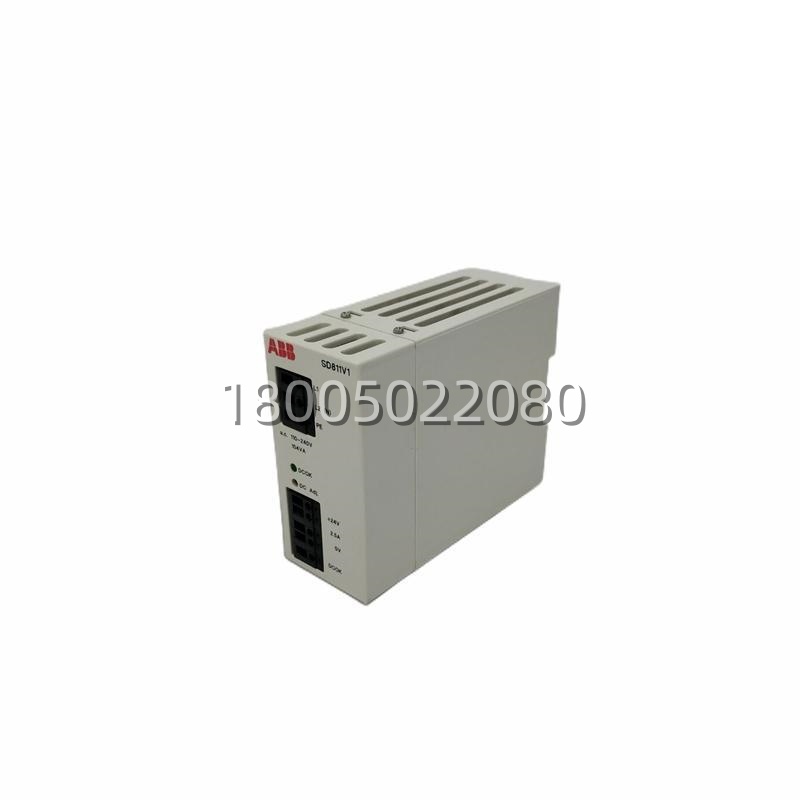

| Product Model | ABB SD811V1 (3BSC610044R1) |
| Manufacturer | ABB (Industrial Automation) |
| Product Category | Rack Mount Power Supply Unit |
| Compatible System | ABB AC 800M Controller Rack, S800 I/O Station Racks |
| Input Voltage | 100-240 VAC, 50/60 Hz (Universal input) |
| Output Voltage | 24 VDC (Regulated) |
| Output Current / Power | Typically 10A / 240W (sufficient for a fully loaded controller or I/O rack) |
| Efficiency | >90% (High efficiency reduces heat dissipation) |
| Protection Features | Overload, Short-circuit, Overvoltage, Overtemperature protection |
| Redundancy Support | Designed for N+1 parallel operation with current sharing and load balancing |
| Hot-Swap Capable | Yes – can be inserted/removed from a powered rack without disruption |
| Cooling | Temperature-controlled fan for optimal thermal management |
| Status Indication | Comprehensive LED indicators (Input OK, Output OK, Alarm, Load Sharing) |
| Communication | Optional communication module for remote monitoring of voltage, current, temperature, and alarms |
| Mounting | DIN-rail mountable within the rack |
Technical Principles and Innovative Values:
- Innovation Point 1: Advanced Current Sharing for True N+1 Redundancy. The ABB SD811V1 employs an active current-sharing technology via a dedicated communication link between paralleled units. This ensures that multiple power supplies share the total load evenly, preventing one unit from being overstressed. More critically, if one unit fails, the others instantly and seamlessly pick up the full load without any voltage dip or interruption. This provides true fault-tolerant power, which is the gold standard for high-availability systems in industries like power generation or oil & gas.
