Application Scenarios
A food and beverage packaging line runs 24/7 with daily washdown cycles. The pneumatic actuators, indicator lights, and diverter solenoids are controlled by a centralized PLC cabinet located 40 meters away. Every actuator requires a home-run cable back to the cabinet, consuming significant panel space and creating a dense wiring bundle that is difficult to troubleshoot. When a solenoid fails, tracing the fault requires opening the cabinet, identifying the terminal block, and testing continuity—a 30-minute task that stops production.
Installing an 1732E-OB16M12R directly on the machine frame changes this equation. The sealed IP69K enclosure mounts within arm’s reach of the actuators, and M12 patch cables connect each output in seconds. When a solenoid shorts, the module’s LED indicator identifies the fault locally, and the M12 cable can be swapped without opening a cabinet or disturbing adjacent wiring. The dual EtherNet/IP ports support Device Level Ring (DLR), so a damaged network cable on one segment does not interrupt communication to downstream modules. For a packaging line running 16-hour shifts, this architecture reduces mean time to repair from tens of minutes to under five minutes .
Parameter

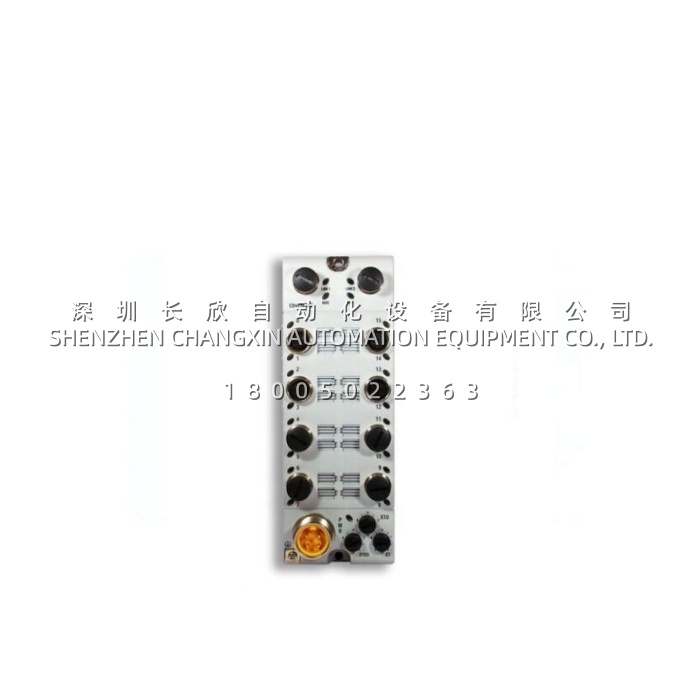

| Parameter | Value/Description |
|---|---|
| Product Model | 1732E-OB16M12R |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Category | Digital Output Module (ArmorBlock EtherNet/IP) |
| Output Points | 16, sourcing (PNP) |
| Output Voltage | 24V DC (12–30V DC range) |
| Output Current per Point | 2.0 A maximum |
| Module Total Current | 8.0 A (all outputs combined) |
| Surge Current | 4.8 A for 10 ms, repeatable every 2 seconds |
| Network Protocol | EtherNet/IP, 10/100 Mbps |
| Network Connection | 2 × M12 D-code, supports DLR |
| Output Connection | M12 (DC Micro) |
| Enclosure Rating | IP65/66/67/69K |
| Operating Temperature | -20°C to +60°C |
| Dimensions (H×W×D) | 179 × 65 × 43.25 mm |
| Mounting | On-machine, horizontal or vertical |
Technical Principles and Innovative Values
- Innovation Point 1: On-Machine Architecture Eliminates Cabinet Dependency. The 1732E-OB16M12R is designed to be mounted directly on the machine frame, actuator rail, or conveyor structure. Its sealed enclosure withstands washdown, oil mist, and vibration without an additional protective box. This eliminates the cost and space of a centralized control cabinet and shortens cable runs from tens of meters to a few meters .
- Innovation Point 2: M12 Connectivity for Fast Installation and Replacement. Every output uses a standard M12 connector, and the network ports use M12 D-code. An electrician can replace a faulty module or cable in minutes using pre-made patch cords, without terminating wires or tracing circuits through a cabinet. The screw-locking connectors also resist vibration loosening on mobile equipment .
- Innovation Point 3: Device Level Ring for Network Resilience. The dual EtherNet/IP ports support DLR topology, meaning the module can participate in a ring network. If a cable is cut between two modules, traffic reroutes through the alternate path, and production continues without a network fault. This is particularly valuable on long conveyor lines or rotary fillers where cable damage is a persistent risk .
- Innovation Point 4: High Output Current for Direct Load Driving. Each output handles up to 2.0 A, and the module supports 4.8 A surge for 10 ms. This is sufficient to drive most 24V DC solenoids, relays, and indicator lamps directly, without interposing relays. The sourcing (PNP) configuration matches common positive-common wiring practices in North American and European machinery .
