Product Description

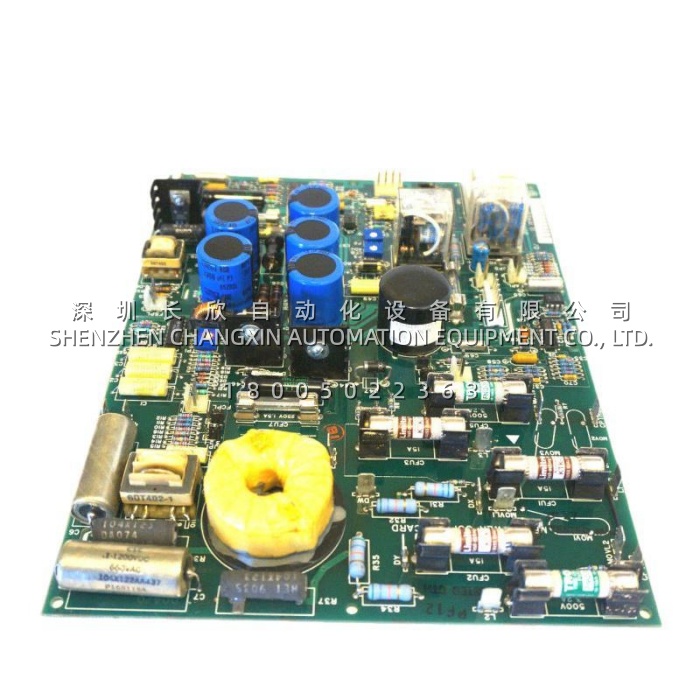

The GE 531X111PSHAPG3 (also known as F31X111PSHALG1) is a Motor Field Control and Power Supply (MCF) board engineered by General Electric for the 531X series of industrial drive platforms . This board performs a dual role: it generates multiple regulated DC voltages for internal drive logic while simultaneously providing controlled excitation power for motor field circuitry . Its design makes it an indispensable component in GE DC-300 drives, EX2000 excitation systems, and SPEEDTRONIC Mark V turbine control racks, where a single card failure can halt an entire drive system .



Application Scenarios

In a steel rolling mill, a GE DC-300 drive powers a massive 500 HP DC motor that drives a roughing stand. The mill experienced a sudden production stoppage when a power fault caused the motor’s field to collapse, dropping the load and damaging the hot steel slab. The maintenance team traced the issue to a failing power supply board that could no longer provide stable low-voltage rails. They replaced the faulty unit with the GE 531X111PSHAPG3 . The new board immediately restored the +5V, ±15V, and +24V logic supplies, bringing the control electronics back to life. More critically, the GE 531X111PSHAPG3 re-established the field excitation output via its integrated pulse transformer, allowing the motor to build torque smoothly . The mill resumed operation with the GE 531X111PSHAPG3 ensuring stable field current, eliminating the torque ripple that had previously caused product surface defects. This intervention reduced unplanned downtime and saved an estimated $100,000 in scrapped materials.



Parameters

Main Parameters	Value/Description
Product Model	531X111PSHAPG3 / F31X111PSHALG1
Manufacturer	General Electric (GE)
Product Category	Motor Field Control / Power Supply Board (MCF Card)
Input Voltage	115/230 VAC ±10%, 50/60 Hz (Switch-Selectable)
DC Outputs (Logic)	+5 VDC / 3A, ±15 VDC / 1A, +24 VDC / 2A
Field Excitation	0–240 VDC Adjustable, up to 10A (via Pulse Transformer)
Onboard Components	3 Relays (RUN, MAX, FAULT), 3 Potentiometers, 5 Jumpers, Pulse Transformer
Protection	MOV Surge Suppression, Overvoltage, Overcurrent
Operating Temperature	0°C to +50°C
Dimensions	240 × 292 × 40 mm (9.5″ × 11.5″ × 1.6″)
Weight	Approx. 0.58 kg
Compatible Systems	DC-300/DC-2000 Drives, EX2000, Mark V



Technical Principles and Innovative Values

The GE 531X111PSHAPG3 is distinguished by its integrated design and specific hardware-level innovations that ensure reliability in harsh industrial environments.

• Innovation Point 1: Integrated Dual-Function Architecture. Unlike modular systems requiring separate power supplies and field exciters, the GE 531X111PSHAPG3 combines both functions on a single board . This simplifies the drive cabinet layout and reduces potential points of failure. It takes AC input and generates both the sensitive low-voltage DC rails for control logic and the isolated, high-current field excitation via an onboard pulse transformer .
• Innovation Point 2: G3 Revision with External MOV Protection. The “G3” revision of this board features externally mounted Metal Oxide Varistors (MOVs) for the AC line . This design decision removes heat-generating surge suppression components from the main PCB, significantly reducing thermal stress on other critical components and protecting the board from voltage spikes that commonly plague industrial power grids .
• Innovation Point 3: Hardware-Based Calibration and Diagnostics. The GE 531X111PSHAPG3 is designed for rapid, tools-only commissioning. It features three onboard potentiometers (FIELD SCALE, CFB ZERO, CFB ADJUST) for calibrating the field current feedback loop, eliminating the need for external software or specialized programmers . The three dedicated relays (K1 RUN, K2 MAX, K3 FAULT) provide immediate hard-wired status feedback to the master controller, enabling rapid fault isolation .



Application Cases and Industry Value

Case Study: Restoring an EX2000 Excitation System in a Hydro Plant

A hydroelectric facility experienced a complete shutdown of its 100 MW generator due to a failed excitation system. The GE EX2000 digital exciter had lost the ability to regulate the generator’s field current, leading to a protective trip. Diagnostic efforts pointed to a catastrophic failure in the power supply and field control board. The maintenance team sourced a GE 531X111PSHAPG3 as a drop-in replacement. The G3 revision’s rugged design and the external MOVs provided confidence that the new board would withstand future line transients . After installation and calibration of the field current scaling via the onboard potentiometers, the exciter was brought back online, restoring generator output to the grid.

Industry Value: The GE 531X111PSHAPG3 provides immense value to industries operating legacy GE drive and excitation equipment. As original production for many 531X series boards has been discontinued, availability of tested, functional units like the GE 531X111PSHAPG3 is critical for maintaining the operational life of capital-intensive assets . Its hardware-centric design simplifies maintenance and ensures long-term reliability.
