Description

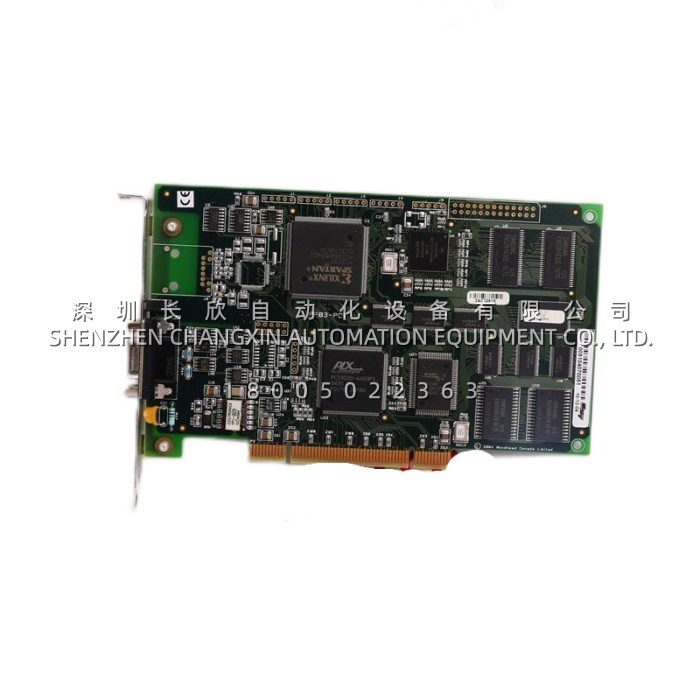

The Schneider Electric 416NHM30032A​ is a dual-port Modbus Plus (MB+) PCI network adapter from the Modicon / ConneXium communication family, designed to turn an industrial PC or engineering workstation into a fully participating node on a Modbus Plus network. It belongs to the industrial network interface category and is the enhanced “A” revision of the original 416NHM30032 dual-cable card.Functionally, the adapter carries the MB+ token-passing protocol in hardware at a fixed 1 Mbps, giving the host computer deterministic access to Modicon Quantum, Premium, Momentum and Compact controllers for programming, monitoring, diagnostics and data acquisition. The 416NHM30032A​ adds support for both 5 V and 3.3 V PCI signalling and fits mechanically into PCI-X server slots, which is what makes it usable across generations of industrial PCs — a critical practical detail now that the product is discontinued and no direct replacement exists.

Application Scenarios

A power plant commissioned in the early 2000s runs its balance-of-plant controls on Modicon Quantum PLCs linked by a Modbus Plus trunk, and the entire engineering workflow — program downloads, online edits, forced-value testing, event diagnostics — runs through one ageing Windows-based engineering station in the control room. That workstation is the single point of access to a network nobody dares disturb, and it is running on hardware that is now fifteen years old. When the PC fails, the plant does not just lose a computer; it loses the ability to modify logic on a running asset.This is the scenario Schneider Electric 416NHM30032A​ exists to serve. Because the card works in both 5 V and 3.3 V PCI slots and sits mechanically in PCI-X slots as well, it gives the plant options when the original machine cannot be replaced like for like: the adapter can move into a newer industrial PC with a 3.3 V PCI slot, buy the site another decade of service from the same MB+ infrastructure, and avoid a network migration that would mean re-engineering dozens of PLC nodes. The second port supports the dual-cable redundant MB+ topology, so where the plant has invested in redundant trunk cabling, the adapter preserves that redundancy rather than forcing a single-cable compromise.The second scenario is a manufacturing SCADA or MES node. A plant historian or OPC server needs to poll data from dozens of controllers on the MB+ network, and the polling load must not destabilise the control network. 416NHM30032A​ handles the protocol in hardware with onboard dual-ported RAM, so network traffic does not load the host CPU the way a software-emulated serial stack would. The pain points it addresses are consistent: no PC-side access to a proprietary network, CPU overhead and jitter from software-based protocol handling, and the risk that electrical noise on the plant floor travels up the network cable into the motherboard.
