Application Scenarios:

In an ACS1000 medium-voltage drive​ controlling a mine hoist, the main control board (YXI115B) handles the complex motor control algorithms. The YXU167G​ acts as a dedicated I/O and sequencing controller. It monitors dozens of digital inputs from safety doors, airflow sensors, and circuit breaker auxiliaries. It processes this logic locally to determine if conditions are safe for the main drive to run. If a “fan fail” signal is detected, the YXU167G​ can immediately trigger a shutdown sequence via its digital outputs without waiting for the main CPU, ensuring millisecond-level safety response and protecting the expensive power electronics.



Parameter:

Parameter Category	Specification Details

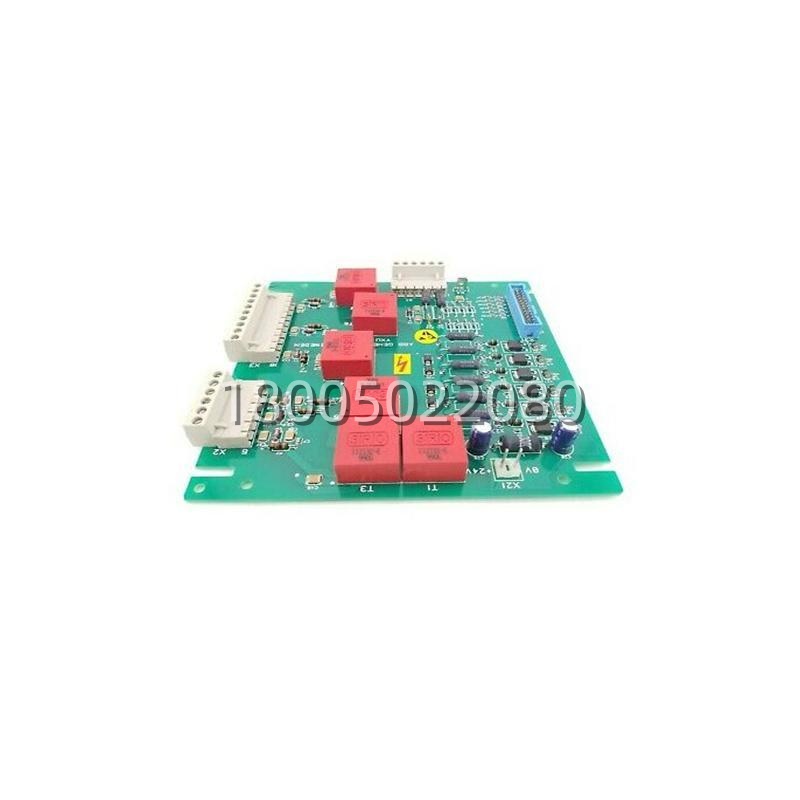

Product Model​	ABB YXU167G​
Alternative Part No.​	YT204001-JE​
Product Type​	Control Interface Board / Intelligent I/O Module
Compatible Systems​	ABB MOD 300 DCS, ACS1000, ACS5000, ACS2000​ Drives
Primary Function​	Local Logic Control, Signal Conditioning, I/O Expansion
Processor​	Embedded Microprocessor (for local program execution)
I/O Capabilities​	Digital Inputs (DI):​ Multi-channel (e.g., 16-32 channels) Digital Outputs (DO):​ Multi-channel (Relay/Transistor) Analog I/O (AI/AO):​ Configurable channels (4-20mA, 0-10V)
Isolation​	Channel-to-Channel and Field-to-Logic Isolation (1500Vrms typical)
Communication​	Backplane Bus (to main controller), RS-485​ (for field devices)
Programming​	ABB MOD 300 Engineering Tools​ (for DCS logic)
Power Supply​	+24V DC​ (typically from rack/drive internal supply)
Operating Temp.​	0°C to +60°C​ (standard industrial range)
Mounting​	Plugs into dedicated slot in MOD 300 rack or drive control unit





Technical Principles and Innovative Values:

• Innovation Point 1: Distributed Intelligence Architecture:​ The YXU167G​ is not a simple I/O card; it contains its own microprocessor and non-volatile memory. This allows it to execute local control logic​ (e.g., motor start/stop sequences, interlocking) independently of the main DCS controller or drive CPU. This “decentralized intelligence” reduces the scan time of the central controller and provides faster, deterministic response​ for time-critical safety and sequencing tasks, which is vital for complex machinery.
• Innovation Point 2: Industrial-Grade Signal Conditioning:​ The board is designed as a signal integrity firewall. It features high-precision analog-to-digital converters (ADC) and galvanic isolation​ on its input channels. This protects the sensitive main control system from ground loops, voltage transients, and electromagnetic interference (EMI) commonly found in industrial environments with heavy motors and variable frequency drives, ensuring data accuracy and system reliability.
• Innovation Point 3: Modular Safety and Maintenance:​ In drive applications, the YXU167G​ often handles safety-related monitoring​ (e.g., door interlocks, cooling status). Its modular design allows for hot-swap replacement​ (in supported configurations) or quick swap during a shutdown. Since it is a separate module from the main CPU, a fault in the I/O circuitry is contained and can be repaired by replacing only the YXU167G, minimizing downtime and spare parts cost.



Application Cases and Industry Value:

Case Study: Chemical Plant MOD 300 DCS UpgradeA chemical plant used an aging ABB MOD 300​ DCS to control a batch reactor. The main controller was overloaded with logic, causing scan time delays. Engineers installed YXU167G​ boards in the remote I/O racks near the reactor. They offloaded the permissive logic​ (valve position checks, level switches) and alarm scanning​ to the YXU167G. This reduced the main controller’s load by 30%, bringing the scan time back within safe limits and eliminating batch cycle delays. The YXU167G‘s local processing also meant that critical alarms were generated instantly at the field level, even if the network to the main DCS was temporarily congested, enhancing operational safety.
