Application Scenarios:In a mining operation’s critical ventilation system, an ACS800 multi-drive setup controls massive fans. A sudden failure of a single power cell’s gate drive circuit causes a cascade shutdown, halting ventilation and risking safety compliance. The root cause is traced to a degraded pulse transformer that allowed noise to corrupt the IGBT switching signal. Replacing the faulty component with an ABB YXU168G (YT204001-JF) restores the high-voltage isolation barrier. This module reliably transfers the PWM signals from the control board to the floating gate driver, immune to the high dV/dt noise of the power stage. It ensures the IGBTs switch cleanly, eliminating the spurious trips and restoring the fan’s variable-speed control, directly solving the pain point of unplanned downtime in 24/7 continuous process industries.
Parameter:
| Main Parameters | Value/Description |
|---|---|

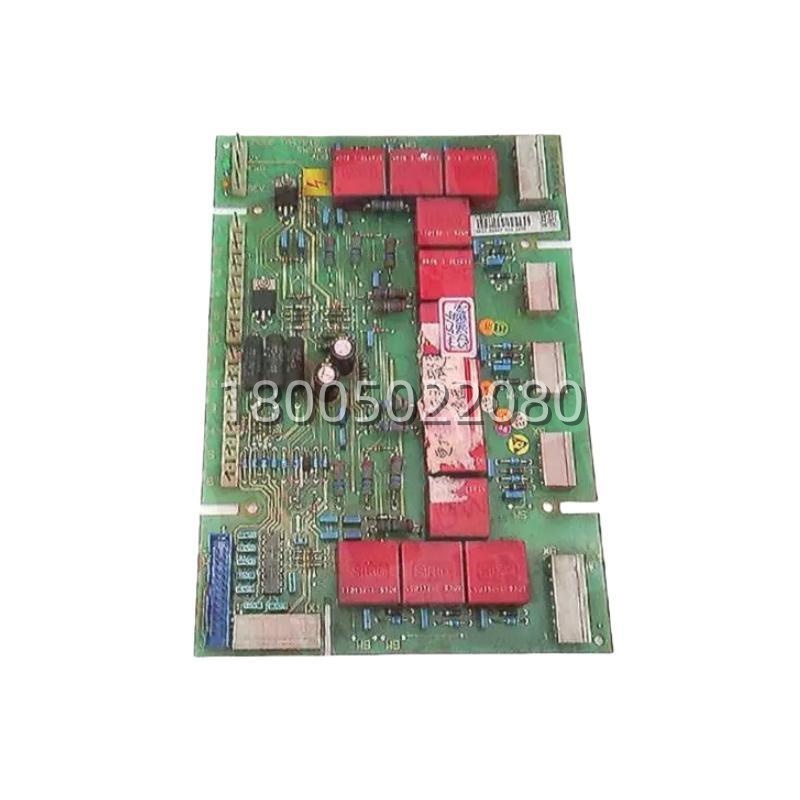

| Product Model | ABB YXU168G (YT204001-JF) |
| Manufacturer | ABB |
| Product Category | Pulse Transform Unit / Gate Drive Isolation Module |
| Primary Function | Galvanic Isolation & Signal Amplification for IGBT/IGCT Gate Driving |
| Input Signal | Low-voltage PWM from Control Board (e.g., 15-24V) |
| Output Signal | Isolated, Amplified Gate Drive Pulse |
| Isolation Voltage | High (Typically 3-5kV AC/DC or higher) |
| Typical Applications | ABB ACS600, ACS800, ACS1000 Series Power Units |
| Mounting | Internal to Power Unit (PCB or Heatsink Mount) |
| Connection | Multi-pin Connector or Direct PCB Solder |
| Operating Temp. | -40°C to +105°C (Industrial Grade) |
| Key Feature | High dV/dt Immunity & Fast Signal Response |
Technical Principles and Innovative Values:The ABB YXU168G is engineered to solve the fundamental challenge of controlling high-power switches from low-voltage logic circuits.
- Innovation Point 1: Robust Galvanic Isolation: At its core, the module utilizes high-performance pulse transformers that provide complete galvanic isolation between the input (control side) and output (power device side). This isolation barrier, rated for several kilovolts, prevents high-voltage transients and common-mode noise from the power stage from propagating back into the sensitive—and expensive—control electronics, significantly enhancing system reliability and longevity.
- Innovation Point 2: Signal Fidelity Under Extreme Noise: The YXU168G is designed with a high common-mode rejection ratio (CMRR) and excellent high-frequency response. This allows it to transmit crisp, fast-rise-time PWM signals without distortion, even when the output side is subjected to the rapid voltage swings (dV/dt) inherent in IGBT switching. This precision ensures minimal switching losses and prevents shoot-through faults in bridge configurations.
- Innovation Point 3: Integrated Channel Architecture: Unlike discrete transformer solutions, the YXU168G often integrates multiple isolation channels (e.g., for upper and lower IGBTs in a half-bridge) into a single, compact package. This integration improves signal synchronization, reduces component count on the driver board, and simplifies the mechanical assembly and thermal management within the cramped confines of a power cell.
