Application Scenarios:
In a copper mining concentrator plant, large slurry pumps are critical assets that operate in a dusty, humid, and corrosive atmosphere. The GE 469-P1-HI-A20-T-H is installed in the motor control center (MCC) to protect a 2000kW high-voltage pump motor. Its conformal coating (-H) resists sulfur dioxide and moisture, preventing PCB corrosion. The relay’s advanced thermal model protects the motor from overloads during high-inertia starts, while the 4-20mA analog outputs transmit real-time current and temperature data to the plant’s DCS system for predictive maintenance, avoiding unplanned downtime that could cost millions in lost production.
Parameter:

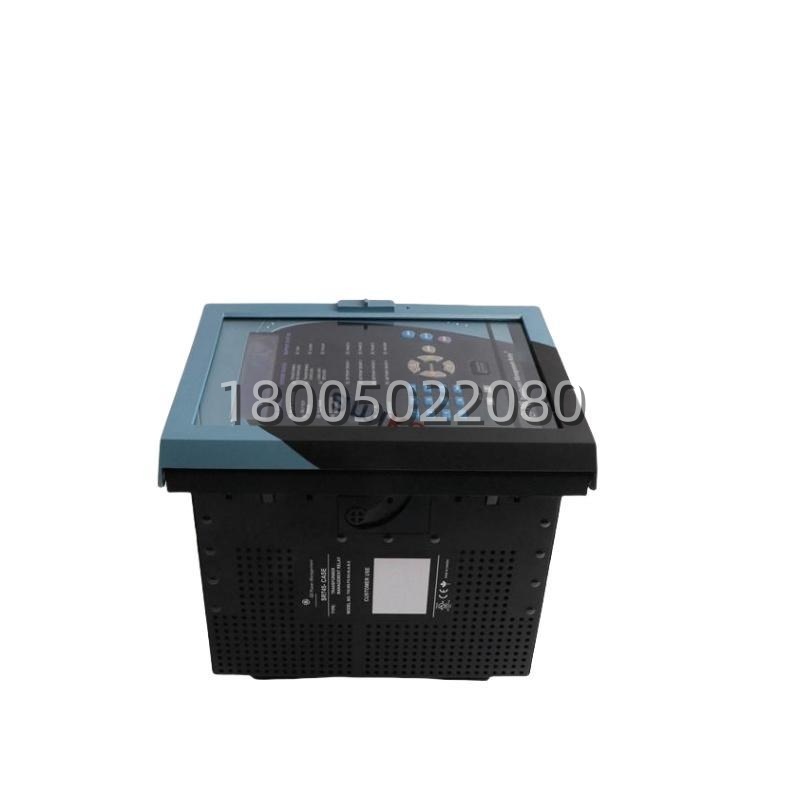

| Main Parameters | Value/Description |
|---|---|
| Manufacturer / Series | General Electric (GE) / Multilin 469 |
| Part Number | 469-P1-HI-A20-T-H |
| Product Type | Digital Motor Management Relay (MMR) |
| Primary Function | Comprehensive motor protection (overload, stall, ground fault), monitoring, and control |
| Control Power Supply | HI Range: 90–300 VDC / 70–265 VAC, 48–62 Hz |
| Phase Current Input | P1 (1A Secondary): 1A nominal, supports primary CTs up to 5000A |
| Analog Outputs | A20: 4 x isolated 4–20 mA outputs (configurable for current, thermal capacity, etc.) |
| RTD Inputs | Up to 12 RTD inputs (supports 100Ω Pt, Ni, 10Ω Cu) for motor bearing/winding temperature |
| Communication | Front RS232, Rear RS485 (Modbus RTU), Optional Ethernet (Modbus TCP/IP) |
| Digital I/O | 9 opto-isolated digital inputs, programmable relay outputs (trip, alarm, control) |
| Protection Features | Thermal overload (15 curves), stall, jam, short circuit, ground fault, phase unbalance, undercurrent |
| Environmental | -H (Harsh): Conformal coating; Operating Temp: -40°C to +60°C |
| Mounting | Draw-out chassis for easy maintenance in switchgear or MCC |
Technical Principles and Innovative Values:
The 469-P1-HI-A20-T-H is more than a simple overload relay; it is a microprocessor-based guardian for critical motor-driven assets.
- Innovation Point 1: Voltage-Dependent Thermal Modeling: Unlike fixed-curve relays, the 469’s thermal model dynamically adjusts the motor’s thermal capacity based on actual voltage conditions. This is critical for high-inertia loads (like large fans or compressors) where low voltage during start-up could lead to excessive heating. The relay “learns” the motor’s thermal state and provides a thermal capacity used (%) reading, enabling predictive maintenance .
- Innovation Point 2: Harsh Environment Survivability (-H Coating): The “-H” suffix indicates a special conformal coating applied to the printed circuit board. This innovation provides a barrier against corrosive gases (H₂S, SO₂), high humidity, and dust, which are common in mining, pulp & paper, and chemical plants. This significantly extends the relay’s service life in environments where standard electronics would fail prematurely .
- Innovation Point 3: Integrated Control & Metering: The relay consolidates multiple devices into one. It replaces traditional ammeters, voltmeters, and temperature controllers by providing true RMS metering (kW, kVAR, kWh) and RTD monitoring directly on its display. The A20 analog outputs allow this data to be sent to a PLC or DCS without needing additional transducers, simplifying cabinet design and reducing costs .
