Product Overview

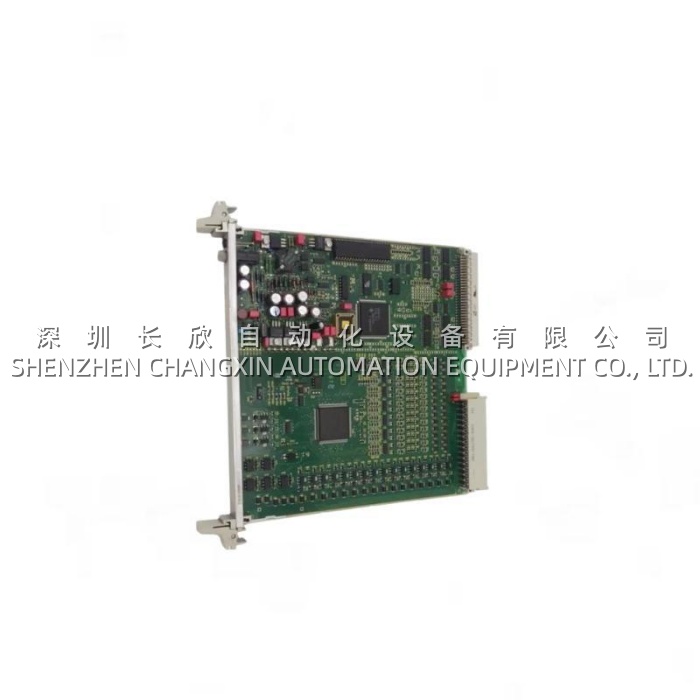

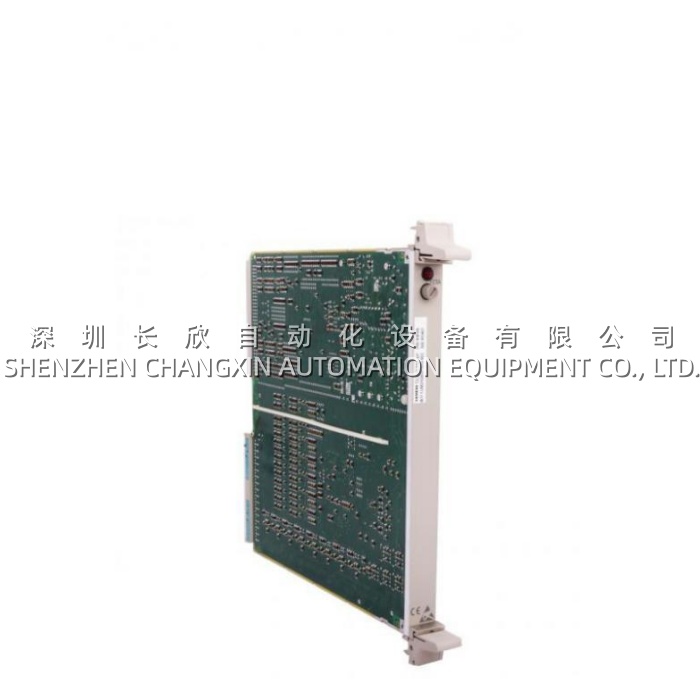

The Siemens 6DP1280-8AB is a FUM 280 function module engineered for the TELEPERM XP (T2000) distributed control system, a premier process automation platform from Siemens widely deployed in power generation, chemical processing, and other heavy industries. As a core component of the AS 620 B automation system, the Siemens 6DP1280-8AB serves as the standard interface between continuous-action actuators and the higher-order control system, enabling precise closed-loop control of critical process variables. This module is specifically designed to handle both analog and binary signal processing, providing the computational backbone for complex continuous control tasks at the field level.

The Siemens 6DP1280-8AB can be configured to operate as two autonomous continuous P-, PI-, PD-, or PID controllers or as a module with up to four analog controller outputs with the control algorithm executed in the automation processor (AP). This flexible architecture allows the Siemens 6DP1280-8AB to adapt to a wide range of process control requirements, from simple setpoint regulation to sophisticated multi-loop control strategies. Depending on the selected operating mode, the module supports either four or two analog inputs and outputs in the 0/4 to 20 mA range, along with up to four limit values per analog input for threshold monitoring. The Siemens 6DP1280-8AB also features binary signal conditioning for travel limit switches and, significantly, is suitable for redundant use, enabling high-availability configurations for mission-critical applications. The Siemens 6DP1280-8AB is currently available primarily as a spare part for maintaining and extending the service life of existing TELEPERM XP installations.



Technical Specifications

Parameter Name	Parameter Value
Product Model	6DP1280-8AB
Manufacturer	Siemens
Product Type	FUM 280 Function Module / Control Motherboard
Series/Platform	TELEPERM XP (T2000) / AS 620 B Automation System
Autonomous Controllers	2 (P, PI, PD, or PID) or 4 analog controller outputs
Analog Inputs	4 or 2 (0/4 to 20 mA, configurable)
Analog Outputs	4 or 2 (0/4 to 20 mA)
Binary Signal Inputs	Up to 13 (with coupling module)
Binary Signal Outputs	Up to 13 (with coupling module)
Limit Values Per AI	Up to 4
Redundancy Support	Suitable for redundant use (no electrical isolation)
Power Consumption	3.5 W of +5 VDC from base
Input Voltage	24 V DC (typical for TELEPERM XP system)
Net Weight	Approx. 0.46 – 0.6 kg
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Mounting Type	Plug-in module for TELEPERM XP rack





Main Features and Advantages

Versatile Continuous Control Capability: The Siemens 6DP1280-8AB offers exceptional flexibility for process control applications. It can operate as two independent continuous controllers supporting P, PI, PD, and PID algorithms, or as a module with up to four analog outputs driven by control logic executed in the automation processor. This dual-mode capability of the Siemens 6DP1280-8AB allows engineers to select the optimal control strategy for their specific application, whether it requires full standalone controller autonomy or centralized algorithm processing in the AP. The module handles both screen-based operation and combined screen/desk-tile operation, supporting up to four continuous drives with limit position detection through two normally open contacts per drive, as well as manipulated variable monitoring via readback to the module.

Comprehensive Analog and Binary Signal Processing: The Siemens 6DP1280-8AB integrates both analog and binary I/O capabilities, making it a complete solution for field device interfacing. The module supports up to six analog inputs and six analog outputs in expanded configurations when coupled with additional modules, all within the standard 0/4 to 20 mA industrial signal range. The Siemens 6DP1280-8AB also processes up to 13 binary signal inputs and 13 binary signal outputs, enabling seamless integration with limit switches, alarms, and other discrete equipment. This comprehensive I/O handling eliminates the need for separate signal conditioning modules and simplifies field wiring for the Siemens 6DP1280-8AB.

Redundancy and Limit Value Monitoring: The Siemens 6DP1280-8AB is engineered for high-availability process control. Its suitability for redundant use allows the Siemens 6DP1280-8AB to operate in fault-tolerant configurations, ensuring continued system operation in the event of a module failure. The Siemens 6DP1280-8AB also includes up to four programmable limit values per analog input, enabling the Siemens 6DP1280-8AB to perform local threshold monitoring and alarm generation without burdening the host controller. This intelligent edge processing, executed directly by the Siemens 6DP1280-8AB, reduces communication overhead and ensures rapid response to out-of-range conditions.
