Product Overview

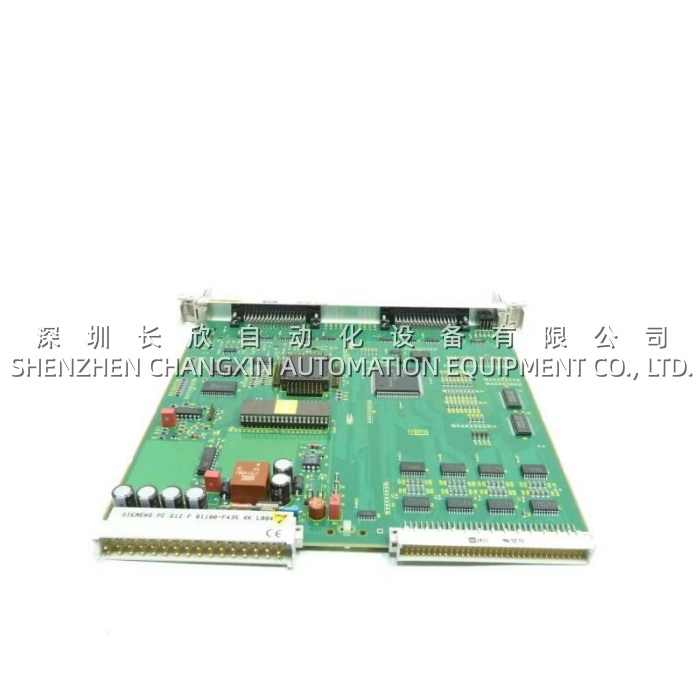

The Siemens 6DP1614-8BB​ is a specialized interface module belonging to Siemens’ renowned TELEPERM XP distributed control system (DCS) platform, specifically designated as the IM 614 (Interface Module 614) engineered for installation within the FUM B signal subrack. As a critical communication component in the TELEPERM XP architecture, the Siemens 6DP1614-8BB​ establishes the deterministic data link between the Automation Processor (AP) and the FUM B subrack, enabling robust, high-reliability exchange of process I/O data, diagnostic information, and control commands across the CS 275 system bus. Designed and manufactured by Siemens AG in Germany, the Siemens 6DP1614-8BB​ embodies the brand’s engineering excellence for mission-critical process automation applications where uptime, determinism, and redundancy are non-negotiable.The Siemens 6DP1614-8BB​ is purpose-built to mount directly into the FUM B subrack backplane, where it serves as the communication gateway that allows the AP—the central processing engine of a TELEPERM XP segment—to access the binary and analog I/O modules (FUM 5xx series) populated in the same FUM B subrack. By interfacing with the CS 275 bus, the Siemens 6DP1614-8BB​ delivers the deterministic cycle-time performance essential for time-critical process control, ensuring that field instrument data reaches the AP within tightly bounded latency and that control outputs are driven with predictable timing. The module supports hot-swappable operation in redundant TELEPERM XP configurations, enabling maintenance or replacement without shutting down the DCS segment—a capability of immense value in continuous-process industries such as power generation, where unplanned downtime carries staggering cost.With an operating temperature range of 0°C to +60°C, IP20 protection rating, and a compact 0.5 kg footprint, the Siemens 6DP1614-8BB​ is engineered for long-term, maintenance-friendly operation within control cabinet environments. Built-in LED indicators display operational status, communication activity, and fault conditions at a glance, while detailed diagnostics are accessible through the TELEPERM XP engineering workstation. As Siemens has transitioned TELEPERM XP into the legacy/spare-parts phase, the Siemens 6DP1614-8BB​ has become a critically sought-after genuine spare part for the thousands of TELEPERM XP installations still operating worldwide in power plants, chemical processing facilities, and oil & gas installations. For plant operators committed to maximizing the return on existing TELEPERM XP investments, the Siemens 6DP1614-8BB​ represents the definitive authentic replacement, preserving original system architecture, CS 275 bus performance, and decades of accumulated process knowledge.

Technical Specifications

Main Features and Advantages

The Siemens 6DP1614-8BB​ delivers exceptional value to plant operators and DCS engineers by providing the deterministic, redundant communication backbone that links TELEPERM XP’s central Automation Processors to distributed I/O subracks. Its defining characteristic is the role it plays in the CS 275 bus architecture—Siemens’ proprietary deterministic communication bus within the TELEPERM XP system—enabling the Siemens 6DP1614-8BB​ to transfer process data between AP and FUM B I/O modules with the cycle-time predictability essential for closed-loop control, protection logic, and sequence automation in continuous-process industries.Deterministic CS 275 Bus Communication: The Siemens 6DP1614-8BB​ interfaces natively with the CS 275 bus, Siemens’ high-reliability communication backbone designed specifically for TELEPERM XP distributed control architectures. This bus supports cable runs of up to 1000 meters between modules when using recommended shielded twisted-pair cabling, enabling the Siemens 6DP1614-8BB​ to serve AP-to-FUM B links across physically dispersed control cabinets while maintaining signal integrity. The deterministic nature of CS 275 ensures that process I/O scans, control loop executions, and protection functions occur within tightly bounded time windows—a non-negotiable requirement for turbine control, generator excitation, and safety-related process automation.Hot-Swappable Redundancy Support: A standout capability of the Siemens 6DP1614-8BB​ is its support for hot-swappable operation in redundant TELEPERM XP configurations. When deployed alongside a redundant AP pair, the Siemens 6DP1614-8BB​ enables seamless failover—if the active AP fails or is taken offline for maintenance, the standby AP assumes control without interrupting process operation, and the IM 614 module continues communication transparently. Furthermore, the Siemens 6DP1614-8BB​ itself can be replaced while the system is running (in redundant architectures), minimizing planned maintenance downtime. This hot-swap capability is particularly valuable in power generation and continuous-process plants where unplanned or even planned outages carry enormous financial and operational penalties.Built-In Diagnostic Visibility: The Siemens 6DP1614-8BB​ incorporates LED status indicators on the front panel that display operational state, communication activity, and fault conditions at a glance, enabling field technicians to rapidly assess module health without laptop connection. For deeper diagnostics, the TELEPERM XP engineering workstation provides access to detailed communication statistics, error logs, and module status through Siemens’ dedicated commissioning software. This layered diagnostic capability of the Siemens 6DP1614-8BB​ accelerates root-cause analysis and reduces mean-time-to-repair when communication anomalies occur.Seamless FUM B Subrack Integration: The Siemens 6DP1614-8BB​ is architected specifically for the FUM B subrack backplane, plugging directly into the designated IM slot and drawing power and bus access from the subrack infrastructure. This native integration means the Siemens 6DP1614-8BB​ coexists seamlessly with FUM 5xx series I/O modules—such as FUM 511 (binary), FUM 531 (analog signal coupling), and others—forming a complete, cohesive I/O station served by a single AP communication path. The module automatically synchronizes with the system clock upon power-up, ensuring coordinated data exchange cycles without manual intervention.Industrial-Grade Robustness: Engineered for the controlled environments of process automation control rooms and cabinets, the Siemens 6DP1614-8BB​ operates reliably across 0°C to +60°C with IP20 protection when installed in a properly specified control cabinet. Its 0.5 kg compact construction and German-manufactured PCB deliver the quality and reliability that have made TELEPEM XP a legendary DCS platform in power generation and process industries. The passive, low-power design eliminates fan-related failure modes, contributing to decades-long service life.Critical Legacy Spare Part: As Siemens has transitioned TELEPERM XP into obsolescence, the Siemens 6DP1614-8BB​ has become an irreplaceable spare part for the thousands of TELEPERM XP systems still operating worldwide. Its unique function—bridging AP to FUM B via CS 275—cannot be substituted by generic interface modules; only the authentic Siemens 6DP1614-8BB​ preserves the original system’s communication timing, redundancy behavior, and diagnostic integration. For plant operators running TELEPERM XP-based mission-critical systems, maintaining strategic spare inventory of the Siemens 6DP1614-8BB​ is essential for business continuity.
