Technical Specifications

Parameter Name	Parameter Value

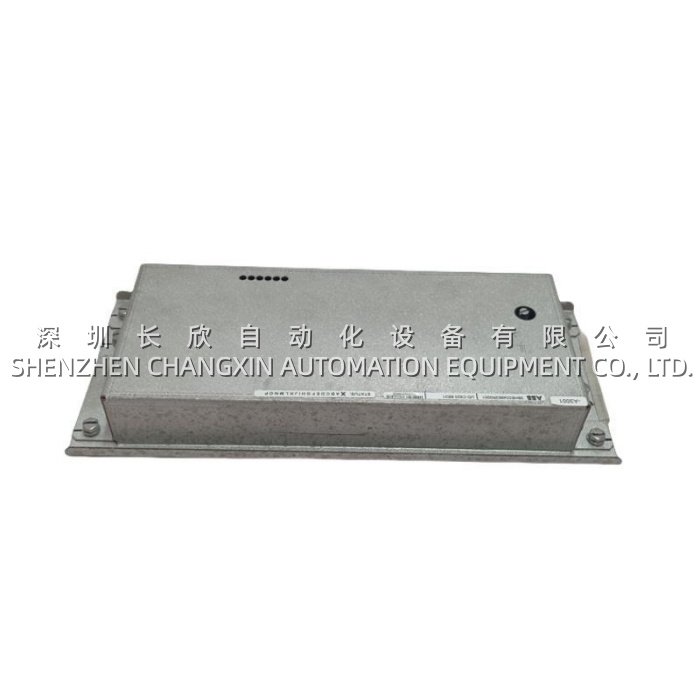

Product Model	3BHE034863R0001 / UDC920BE01
Manufacturer	ABB
Product Type	Analog Input Module
Number of Channels	8
Supported Signal Types	4-20 mA, 0-20 mA, 0-10 V, ±10 V (configurable)
Resolution	16-bit
Accuracy	±0.05% to ±0.1% FS
Sampling Rate	Up to 1000 Hz
Communication Protocol	MODBUS RTU
Operating Voltage	24 V DC
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Isolation	Channel-to-channel and channel-to-system isolation
Mounting Type	DIN Rail / Panel Mount
Dimensions (W×H×D)	Approx. 35.6 × 110 × 175.3 mm
Weight	Approx. 0.5 – 1.48 kg (variant dependent)
Protection Class	IP20





Main Features and Advantages

High-Precision Signal Acquisition for Critical Process Control: The ABB 3BHE034863R0001 delivers exceptional measurement accuracy, with precision up to ±0.02% to ±0.05% full scale . This high accuracy enables the ABB UDC920BE01 to capture even the most subtle process variations—such as 0.01°C temperature changes or 0.01 MPa pressure fluctuations—providing the control system with the detailed data required for optimal process regulation . The 16-bit resolution ensures that the ABB 3BHE034863R0001 converts analog signals with fine granularity, minimizing quantization error and delivering reliable, repeatable measurements essential for quality-sensitive applications in chemical synthesis, semiconductor manufacturing, and pharmaceutical production .

Versatile Channel Configuration and Robust Signal Conditioning: The ABB 3BHE034863R0001 supports multiple configurable input types—including 0-20mA, 4-20mA, 0-10V, and ±10V—enabling a single module to interface with a wide variety of field sensors and transmitters . This versatility simplifies inventory management and system design, as the ABB UDC920BE01 can be adapted to different sensor types through software configuration rather than hardware changes. The module incorporates advanced signal conditioning features, including multistage low-pass filters, digital filtering algorithms, and linearization for nonlinear sensor outputs, ensuring that the ABB 3BHE034863R0001 delivers clean, processed data to the controller . The ability to filter 50Hz/60Hz power line interference and high-frequency noise makes the ABB UDC920BE01 particularly suitable for installations in electrically noisy industrial environments.

Industrial-Grade Robustness and Comprehensive Protection: The ABB 3BHE034863R0001 is built to withstand the most demanding industrial conditions, with an operating temperature range of -25°C to +70°C and protection against humidity, vibration, and electromagnetic interference . The module features 3kV AC opto-isolation between input channels and the system side, protecting sensitive control electronics from ground faults and voltage spikes common in industrial settings . Power input includes EMC filtering and surge suppression, enabling the ABB UDC920BE01 to tolerate voltage fluctuations of ±20% on the 24V DC supply . These robust design features ensure that the ABB 3BHE034863R0001 delivers consistent, reliable performance in high-heat, high-humidity, and high-EMI environments such as power plants, steel mills, and chemical facilities.

Seamless System Integration and Ease of Maintenance: The ABB 3BHE034863R0001 is designed for seamless integration with ABB’s Advant OCS and System 800xA platforms, with support for MODBUS RTU communication enabling connectivity with a broad range of third-party control systems . The module supports online configuration of signal type, range, and filter parameters via the host system, eliminating the need for physical adjustments and reducing commissioning time . Its hot-swap capability allows replacement of the ABB UDC920BE01 without system shutdown, a critical feature for continuous process applications where downtime is costly .



Application Field

The ABB 3BHE034863R0001 is deployed across industries where precise, reliable analog signal acquisition is essential for process control and safety. In the power generation sector, the ABB UDC920BE01 monitors critical parameters such as turbine bearing temperatures, steam pressures, and generator stator temperatures in thermal, hydroelectric, and nuclear power plants . The module’s high accuracy and EMI immunity make the ABB 3BHE034863R0001 particularly suitable for turbine monitoring applications, where measurement integrity directly impacts both operational efficiency and equipment safety.

In the chemical and petrochemical industry, the ABB 3BHE034863R0001 supports precise monitoring of reaction temperature, pressure, and flow in complex continuous and batch processes . The ABB UDC920BE01 provides the accurate data needed for tight control of exothermic reactions, distillation columns, and catalytic cracking units, where measurement errors can compromise product quality and process safety. The module’s ability to handle diverse sensor types makes the ABB 3BHE034863R0001 an ideal solution for retrofit projects in aging chemical facilities with heterogeneous instrumentation.

The ABB 3BHE034863R0001 is also widely used in semiconductor manufacturing, where it monitors critical process parameters such as chamber pressure, gas flow rates, and temperature to maintain the stable conditions essential for chip yield . In the pharmaceutical and food & beverage industries, the ABB UDC920BE01 supports compliance with stringent quality standards by providing accurate measurements of temperature, pH, and flow in sterilization, fermentation, and CIP processes . For facilities operating legacy ABB Advant OCS systems, the ABB 3BHE034863R0001 provides a like-for-like replacement that extends the life of existing installations while maintaining system performance.
