Application Scenarios

In a 600 MW coal-fired power plant using the ABB Symphony Plus DCS, operators needed to expand their control network to include a new flue gas desulfurization (FGD) unit located 200 meters from the main control room. The existing Cnet backbone required a robust termination point to maintain signal integrity over the extended distance. By deploying the ABB NTCL01 as the communication link termination unit at the FGD satellite cabinet, engineers established a reliable physical and data link layer connection between the central Harmony control unit and the remote I/O stations . The module’s built-in impedance matching and signal isolation eliminated reflections and ground loop issues that had plagued previous expansion attempts. The ABB NTCL01 now ensures deterministic communication with sub-5 ms I/O scan cycles, enabling real-time monitoring and control of the FGD process while maintaining the original system’s reliability standards .



Parameters

Main Parameters	Value/Description
Product Model	NTCL01
Manufacturer	ABB (Bailey)
Product Category	Communication Link Terminal Unit / Network Termination Module
Order/Assembly Numbers	3BSE020479R1, 6636997L1
Communication Protocols	Infi-Net, Cnet, Profibus DP (AC 800M variant)
Communication Rates	10 Mbaud or 2 Mbaud (selectable)
Interface Types	Twisted-pair (RS-485) and coaxial cable (BNC)
Power Requirements	+5 VDC at 800-900 mA; 4.0 W nominal
Memory (Variant)	208 KB RAM, 64 KB ROM
Dimensions (D × H × W)	3.5–3.6 cm × 31.2–31.5 cm × 17.6–17.7 cm
Net Weight	0.3–0.42 kg
Mounting	One slot in standard module mounting unit
Certification	CE, UL 61010-2-201, IEC 61000-6-2/4



Technical Principles and Innovative Values

Innovation Point 1: Dual-Protocol and Multi-Platform Architecture
The ABB NTCL01 demonstrates remarkable engineering versatility, serving two distinct architectural contexts. In the Bailey INFI 90/Symphony Plus environment, it functions as a Cnet communication link terminal, providing physical and data link layer termination for the central network . In ABB AC 800M systems, the same base hardware operates as a Profibus DP master communication module (order code 3BSE020479R1), managing up to 12 local S800 I/O stations . This cross-platform compatibility simplifies spare parts management and enables seamless migration between ABB control platforms.

Innovation Point 2: Flexible Physical Interface Termination

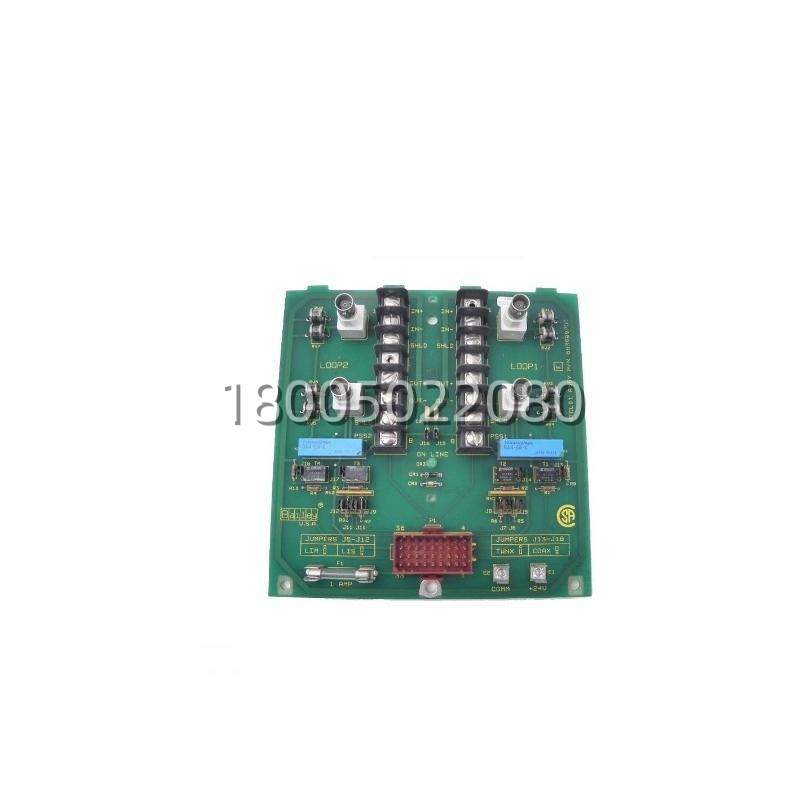

The ABB NTCL01 supports both twisted-pair and coaxial cable connections, with on-board jumpers for cable type selection and network parameter configuration . This flexibility allows engineers to adapt the module to various existing cabling infrastructures, reducing installation costs and deployment time. The module’s impedance matching circuitry ensures proper signal termination, eliminating reflections that can corrupt data transmissions on long-distance runs.

Innovation Point 3: Galvanic Isolation and Signal Integrity
The ABB NTCL01 provides electrical isolation between field devices and the control system, protecting sensitive controller electronics from voltage transients, ground loops, and electromagnetic interference common in power plants and chemical facilities . The module’s advanced signal conditioning and network impedance matching capabilities maintain signal integrity even in high-EMI environments, ensuring reliable communication between distributed control nodes .

Innovation Point 4: Redundancy Support for Critical Applications
Supporting hardware redundancy through dual-module configurations, the ABB NTCL01 is designed for mission-critical applications in the power generation and petrochemical industries . This redundancy architecture ensures continuous communication even during module failure or maintenance activities, contributing to the high availability expected of modern DCS installations.
