Product Overview

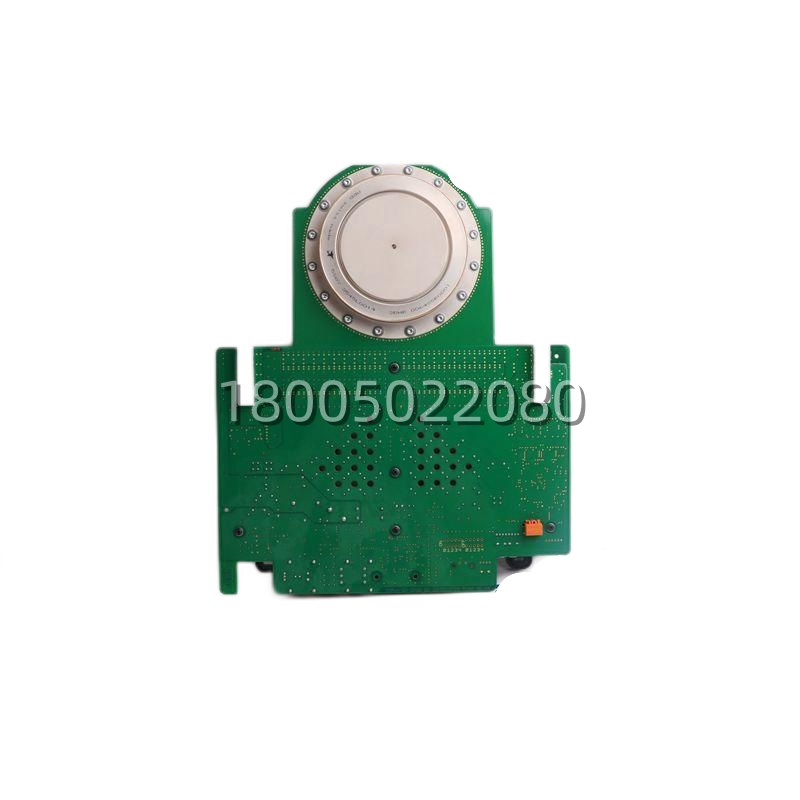

The ABB 3BHE014105R0001 is a comprehensive IGCT power module assembly engineered for ABB’s medium and high-voltage drive systems, integrating the 5SGY55L4500 press-pack IGCT power semiconductor with its dedicated 5SXE08-0167 gate drive unit . This assembly, also referenced by the configuration code AC10272001R0101, serves as the fundamental switching element in the power stacks of ABB’s ACS6000, PCS6000, and ACS1000 series variable frequency drives, as well as in HVDC and FACTS power conversion systems . Unlike standard control boards, the ABB 3BHE014105R0001 represents a matched component set where the gate drive board and power device are factory-aligned to ensure precise timing and protection characteristics.

The ABB 5SGY55L4500 is a press-pack integrated gate-commutated thyristor rated at 4500V blocking voltage with a turn-off current capability of approximately 3500A . This device employs a snubberless design that significantly reduces switching losses compared to earlier GTO technologies, enabling the ABB 3BHE014105R0001 to support ABB’s fuse-less drive architecture, where short-circuit faults are cleared by the IGCT’s own rapid blocking capability . The ABB 5SXE08-0167 gate drive unit handles the “hard drive” function, converting optical fiber control pulses from the main controller into the high-current gate signals required to turn the IGCT on and off within tens of microseconds. The ABB 3BHE014105R0001 is a critical spare component for facilities operating ABB medium-voltage drives, as its failure will immediately halt the affected power section and cannot be substituted with generic or unmatched components.
